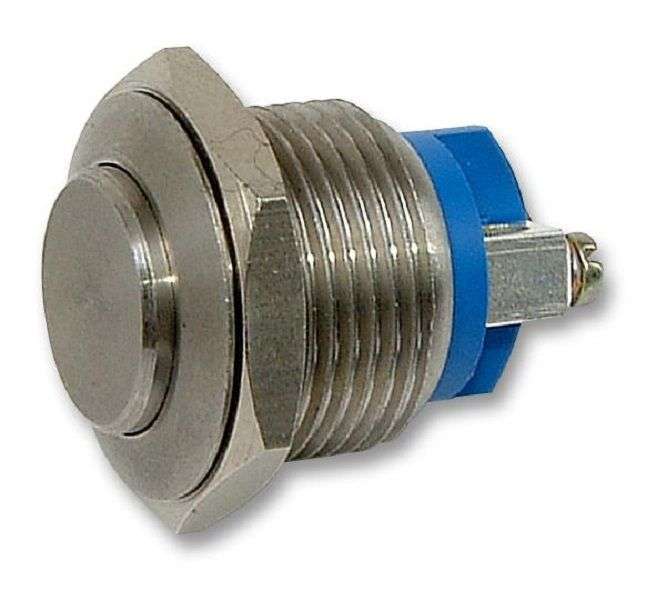

Apem (AV0630C940) Vandal Resistant Switch, AV Series, 16.2 mm

Vandal Resistant Switch, AV Series, 16.2 mm, SPST-NO, Off-(On), Round, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: AV SeriesPanel Cutout Diameter: 16.2mmContact Voltage AC Nom: -Contact Configuration: SPST-NOContact Voltage DC Nom: -Switch Operation: Off-(On)Pushbutton Actuator Style: RoundContact Current Max: 200mAActuator / Cap Colour: NaturalContact Current AC Max: -Contact Voltage VAC: -Contact Voltage AC Max: -Contact Current DC Max: 200mAOperating Force: -Contact Voltage DC Max: 48VContact Voltage VDC: 48VIP Rating: IP54Switch Mounting: Panel MountSwitch Terminals: ScrewIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe AV0630C940 is a single-pole single-throw (SPST) momentary snap actionsecurity Pushbutton Switch with screw terminal, NO function and flat actuator.The AV series has silver plated brass contact, stainless steel actuator/bushingand short PBT case. Anti-jamming construction provides reduced travel to preventinsertion of foreign parts. Contact and mechanism protected against crushing.16mm Bushing diameterAttractive, robust and durableIrremovableFire resistant, long lifeApplicationsSecurity
