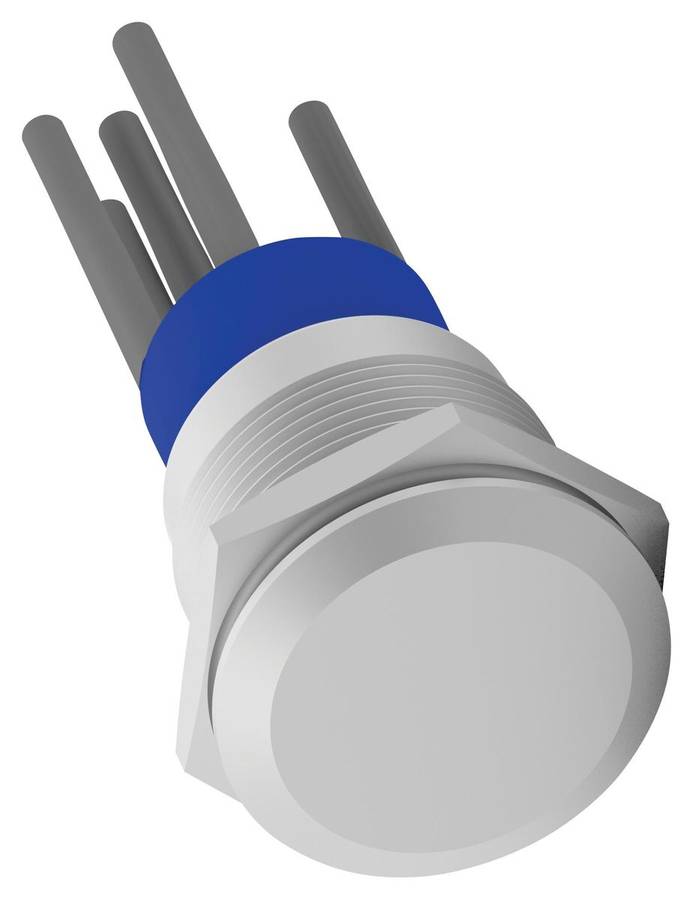

Alcoswitch (AV1910EA12T5Q04) Vandal Resistant Switch, AV19, 19 mm

Vandal Resistant Switch, AV19, 19 mm, SPST-NO, Off-(On), Flush, NaturalProduct InformationPushbutton Switch Type: Anti-VandalContact Configuration: SPST-NOProduct Range: AV19Panel Cutout Diameter: 19mmPushbutton Actuator Style: FlushContact Current Max: 3AContact Voltage AC Max: 250VActuator / Cap Colour: NaturalSwitch Operation: Off-(On)Contact Current AC Max: 3AOperating Force: 2.5NContact Voltage VAC: 250VContact Voltage DC Max: -Contact Current DC Max: -Contact Voltage VDC: -IP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Wire LeadedIllumination Colour: Green, RedPanel Cutout (H x W): -Product OverviewThe AV1910EA12T5Q04 from TE- Alcoswitch is an AV series 19mm size Anti-Vandalswitch. It is designed for security and reliability in a variety of panel mountindustrial and building applications. Anti-Vandal switch achieves a vandal proofsolution with a jam nut accessible for rear of the panel and sealed to IP67.Single pole (momentary) switch configurationMoving ring LED12V dual colour (red & green) LEDCopper with silver plated terminals and contacts, stainless steel actuatorOperating temperature range from -20°C to +55°C, UL (E46765) approvalSilicon terminal seal, PBT case, stainless steel bushingContact rating is 3A at 250VAC, ease of installation with flying leadterminationsElectrical life is 50,000 cycles, dielectric strength is 2KV for 1minuteMaximum contact resistance is 50mohm, minimum insulation resistance is 1000Mohmat 500VDCActuator force is 2.5N, actuator travel is 3.2mm, 1000000 actuationsApplicationsAutomation & Process Control, Industrial
