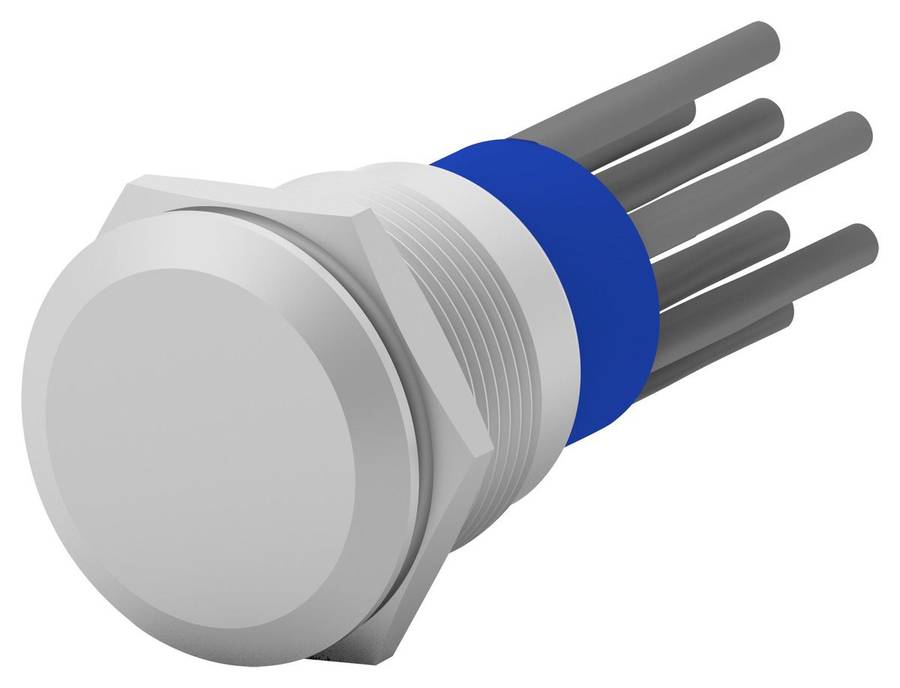

Alcoswitch (AV1920EG12T5Q04) Vandal Resistant Switch, AV19, 19 mm

Alcoswitch (AV1920EG12T5Q04) Vandal Resistant Switch, AV19, 19 mm

65 available / new
R1,059.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2851811
Bob Shop ID
645120419
Vandal Resistant Switch, AV19, 19 mm, DPST-NO, Off-(On), Flush, NaturalProduct InformationPushbutton Switch Type: Anti-VandalContact Configuration: DPST-NOProduct Range: AV19Panel Cutout Diameter: 19mmPushbutton Actuator Style: FlushContact Current Max: 3AContact Voltage AC Max: 250VActuator / Cap Colour: NaturalSwitch Operation: Off-(On)Contact Current AC Max: 3AOperating Force: 3.5NIllumination Colour: Red, YellowContact Voltage VAC: 250VContact Voltage DC Max: -Contact Current DC Max: -Contact Voltage VDC: -IP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Wire LeadedPanel Cutout (H x W): -Product OverviewThe AV1920EG12T5Q04 from TE- Alcoswitch is an AV series 19mm size Anti-Vandalswitch. It is designed for security and reliability in a variety of panel mountindustrial and building applications. Anti-Vandal switch achieves a vandal proofsolution with a jam nut accessible for rear of the panel and sealed to IP67.Double pole (momentary) switch configurationMoving ring LED12V (red & yellow) LEDCopper with silver plated terminals and contacts, stainless steel actuatorOperating temperature range from -20°C to +55°C, UL (E46765) approvalSilicon terminal seal, PBT case, stainless steel bushingContact rating is 3A at 250VAC, ease of installation with flying leadterminationsElectrical life is 50,000 cycles, dielectric strength is 2KV for 1minuteMaximum contact resistance is 50mohm, minimum insulation resistance is 1000Mohmat 500VDCActuator force is 3.5N, actuator travel is 3.2mm, 1000000 actuationsApplicationsAutomation & Process Control, Industrial
