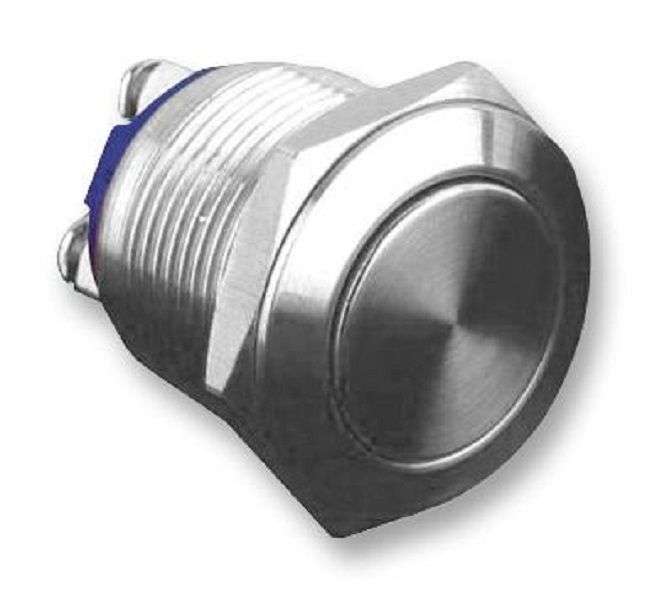

Multicomp Pro (AV01-B22-M1-F-IP65) Vandal Resistant Switch, 19 mm

Vandal Resistant Switch, 19 mm, SPST, Off-(On), Flush, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: -Panel Cutout Diameter: 19mmContact Configuration: SPSTSwitch Operation: Off-(On)Pushbutton Actuator Style: FlushContact Current Max: 2AContact Voltage AC Max: -Actuator / Cap Colour: NaturalContact Current AC Max: -Contact Voltage VAC: -Operating Force: 4NContact Current DC Max: 2AContact Voltage DC Max: 36VContact Voltage VDC: 36VIP Rating: IP65Switch Mounting: Panel MountSwitch Terminals: ScrewIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe AV01-B22-M1-F-IP65 is a single-pole single-throw (SPST) flush Anti-vandalSwitch with screw terminal and OFF-Momentary function. This switch has silveralloy contact, nickel plated brass nut and PBT base. Bushing and button is madefrom stainless steel with varnished polished.50mR Maximum initial contact resistance1000MR at 500VDC Minimum insulation resistance1000Vrms (50 to 60Hz) Dielectric strength-20 to +55°C Operating temperature rangeIP67 Protection rating
