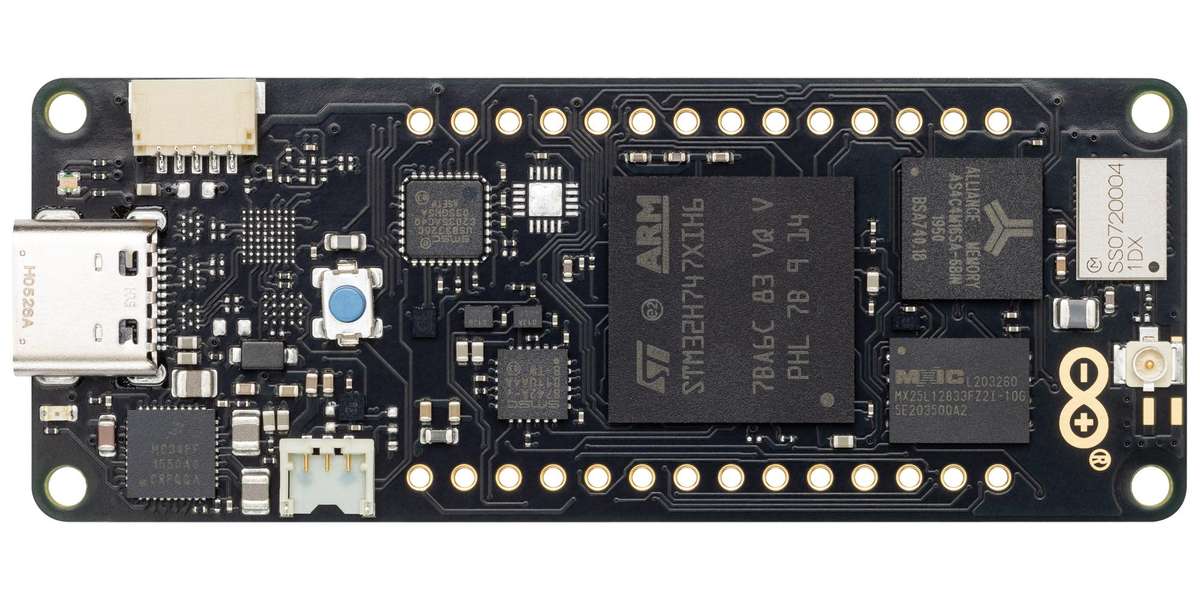

Arduino (ABX00046) Development Board, STM32H747XI

Product Information:- Silicon Manufacturer: STMicroelectronics- No. of Bits: 32bit- Silicon Family Name: STM32- Core Architecture: ARM- Core Sub-Architecture: Cortex-M4F, Cortex-M7F- Silicon Core Number: STM32H747XI- Kit Contents: Portenta H7 Dev Board STM32H747XIProduct Overview:Portenta H7 Lite connected dev board is designed to provide the computationalpower of the Portenta H7 for AI applications and low-latency control solutions,with a module that is made more cost-effective by removing the high-resolutionvideo interface feature. It fills the gap between the full H7 and the H7 Liteversions by integrating wireless connectivity, adding yet another option forArduino Pro clients to build the perfect solution with the right combination ofperformance and simplicity.STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCUEthernet, Wi-Fi, BLE connectivity2.95µA current consumption in standby mode (Backup SRAM OFF, RTC/LSE ON)22x timers and watchdogs, 4x UART ports (2 with flow control)10/100Mbps Ethernet (through expansion port only)Two 80 pin connectors will expose all of the module's peripherals to otherdevices3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS), 2×12-bit DAC (1 MHz)
