Arduino (ASX00031) Breakout Board, Arduino, Connectivity

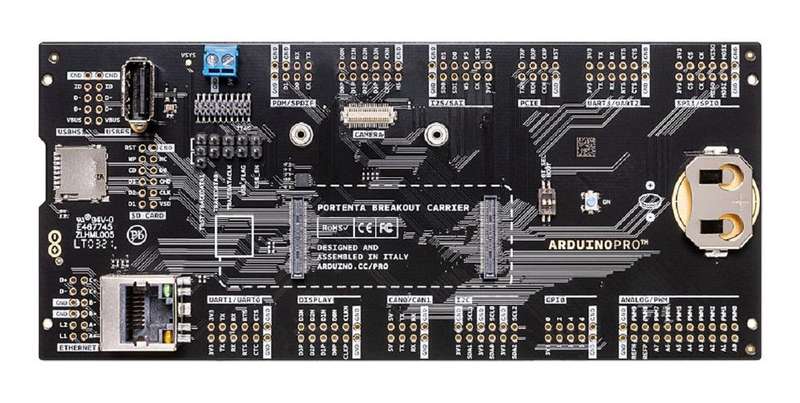

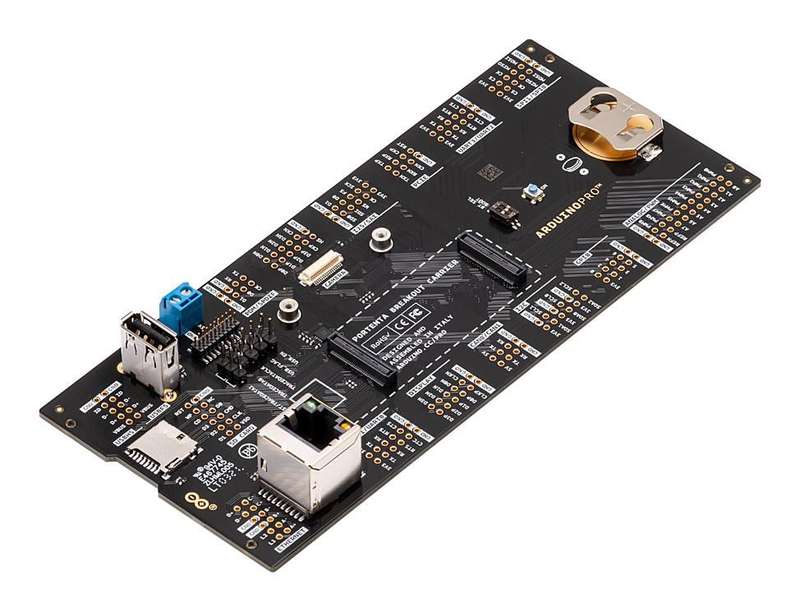

Product InformationSilicon Manufacturer: ArduinoAccessory Type: Arduino Portenta Breakout BoardNo. of Bits: -Silicon Family Name: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -Kit Contents: Portenta Breakout BoardFor Use With: Portenta H7 Family BoardsProduct Range: -Product OverviewASX00031 is an Arduino Portenta breakout board designed to assist developerswith their prototypes by exposing the high-density connectors of the Portentafamily on both sides of the breakout carrier, providing total flexibility formeasuring and controlling signals - developing your own hardware, testing thedesign and measuring the input and output signals out of the high-densityconnectors. The Portenta breakout board reduces development time forindustrial-grade solution automation based on the Portenta line. The Portentabreakout board can act as a first point of entry for technician education inindustrial-grade control and embedded systems.Power ON ButtonBoot mode DIP switchUSB A, RJ45 GBit Ethernet, Micro SD card, OpenMV shutter module, MIPI 20T JTAGwith trace capabilityPower: CR2032 RTC lithium battery backup, external power terminal blockBreak out all Portenta high density connector signalsMale/female HD connectors allow interposing breakout between Portenta and shieldto debug signalsStandard portenta high density connector pinout compatibilitySafety information Class A
