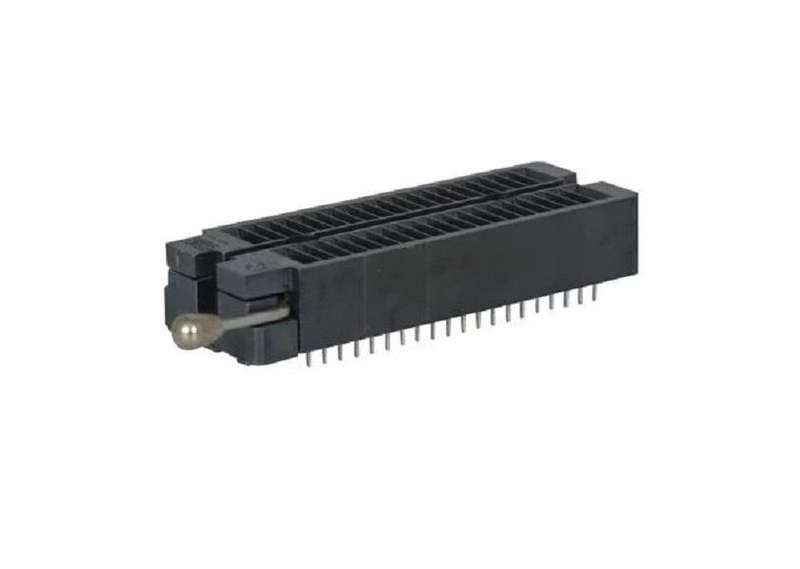

Aries (32-6554-10) IC & Component Socket, 32 Contacts, DIP Socket, 2.54 mm

Product OverviewThe X55X series DIP Test Socket with universal zero insertion force. It acceptsdevices on 0.3 to 0.6-inch centres. Socket handle can be configured with closedcontacts (ON) when in the UP or DOWN position and can be mounted on either theright or left side. Socket can be soldered into PCBs or plugged into any socket.Socket fits into Aries or any competitive test socket receptacle. The socketbody is black glass-filled polyphenylene sulphide (PPS).All pin count sockets go into PCB with either 0.3 or 0.6" centresContacts are normally closed to eliminate dependence on plastic to sustaincontactStainless steel handle1A Contact current rating1000MR Minimum insulation resistance25000 to 50000 Life cyclesUL94V-0 Flammability ratingApplicationsIndustrialProduct InformationNo. of Contacts: 32ContactsConnector Type: DIP SocketPitch Spacing: 2.54mmProduct Range: X55XRow Pitch: 15.24mmContact Material: Beryllium CopperContact Plating: Tin Plated Contacts
