ASUS PRIME B760M-R D4 Intel 12th / 13th / 14th Gen Socket LGA 1700 mATX Motherboard, Intel B760 Chipset, 2 x DDR5 DIMM Memory slots, 1x HDMI Port, 1x PCI-e 4.0 x16 slot, 2x PCI-e 4.0 x1 slots, 2x M.2 slots, 4x SATA 6Gb/s Ports, 1x Realtek 2.5Gb Ethernet, USB 5Gbps Ports (Type-A), USB 2.0 Ports, Realtek 7.1 Surround sound High Definition audio, 3x audio jacks
Overview:
ASUS PRIME B760M-R D4, an IntelB760 LGA 1700 micro-ATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, HDMI, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync
IntelLGA 1700 Socket: Ready for 14th,13th and 12th Gen Intelprocessors
Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 5Gbps support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
Two-Way AI Noise Cancelation : Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Features:

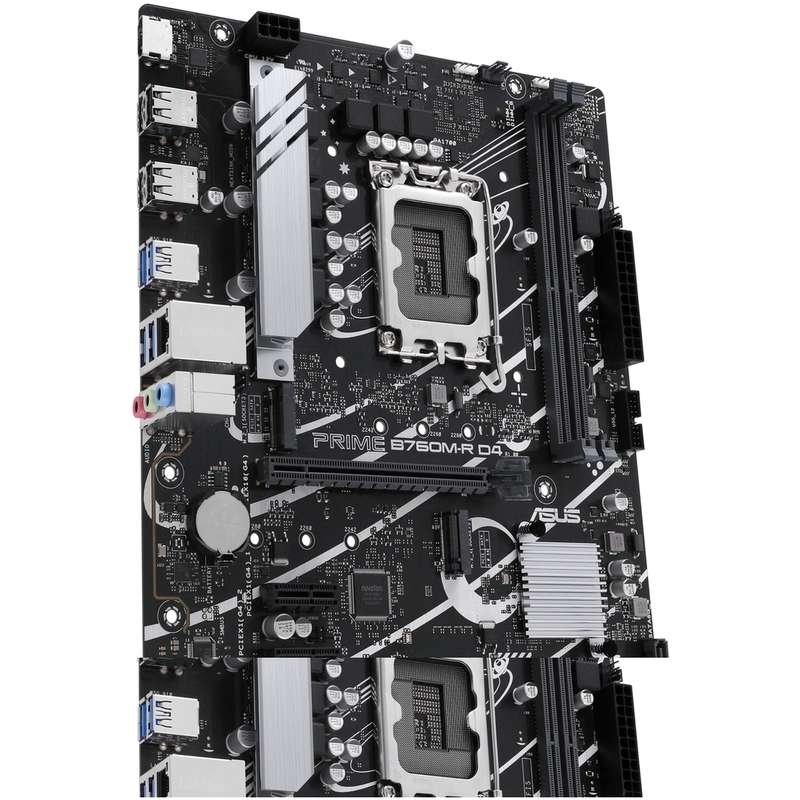

B760M-R D4
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th & 13th Gen IntelCore Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-R D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

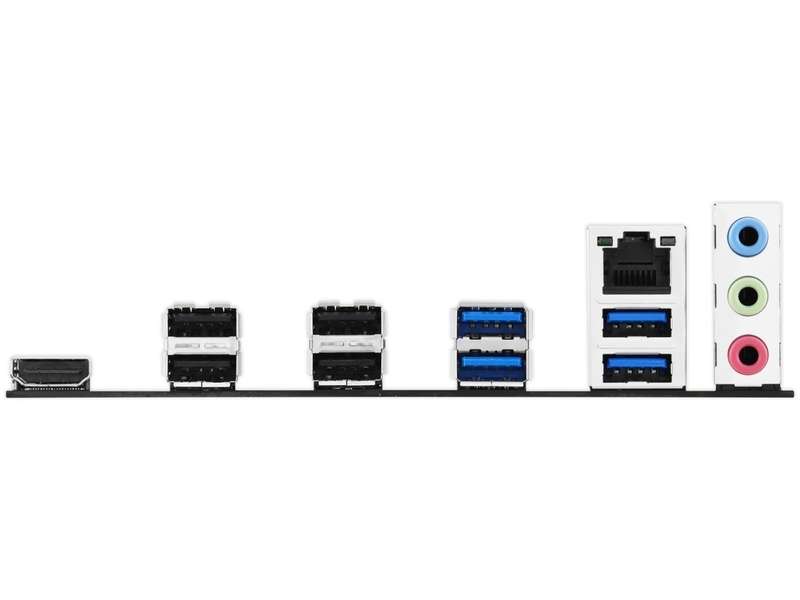

1 x HDMI port
4 x USB 2.0 ports (type-A)
4 x USB 5Gbps ports (Type-A)
Realtek 2.5Gb Ethernet
3 x Audio Jacks
Expansion Slots 1 x PCIe 4.0 x16 slot 2 x PCIe 4.0 x1 slots
1 x Addressable Gen 2 header
8-pin ProCool connector
2 x Addressable Gen 2 headers
IntelSocket LGA1700 for IntelCore 14th & 13th Gen Processors, IntelCore 12th Gen, PentiumGold and CeleronProcessors
DDR4 support Dual Channel
1 x USB 5Gbps header
2 x M.2 slots M.2_1 slot (Key M) 2280 (PCIe 4.0 x4 mode) M.2_2 slot (Key M) 2280 (PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
2 x USB 2.0 headers
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Power Saving
FAN Xpert 2+
Digi+ VRM Control
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
PRIME B760 series are engineered with multiple onboard heatsink and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
PERFORMANCE
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 14th & 13th Gen Intel Core Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intelprocessors. The PRIME B760M-R D4 is geared to cater to the demands of these high-core-count CPUs.
ProCool Connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

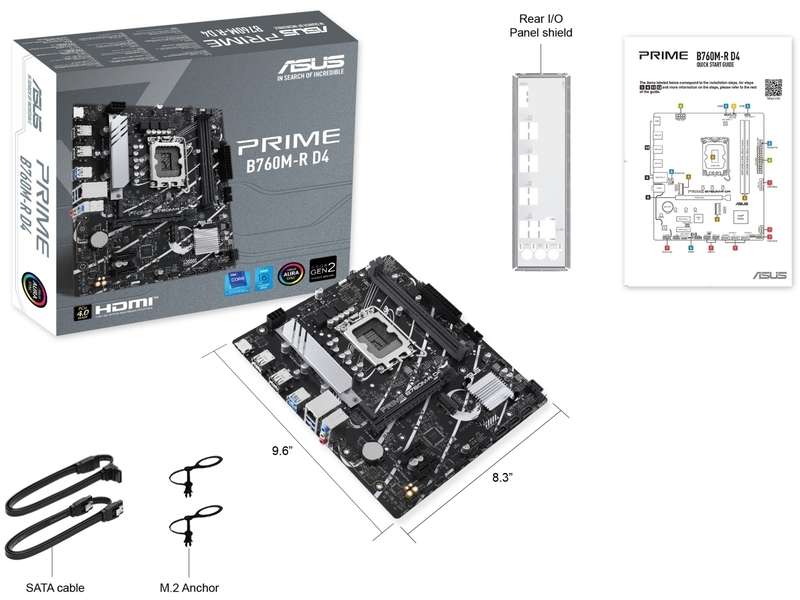

Specifications:
Model PRIME B760M-R D4
CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
Memory 2 x DIMM slots, Max. 64GB, DDR4
5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Graphics 1 x HDMI port
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
2 x PCIe 4.0 x1 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
IntelCore Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
USB Rear USB (Total 8 ports)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio outpu...
