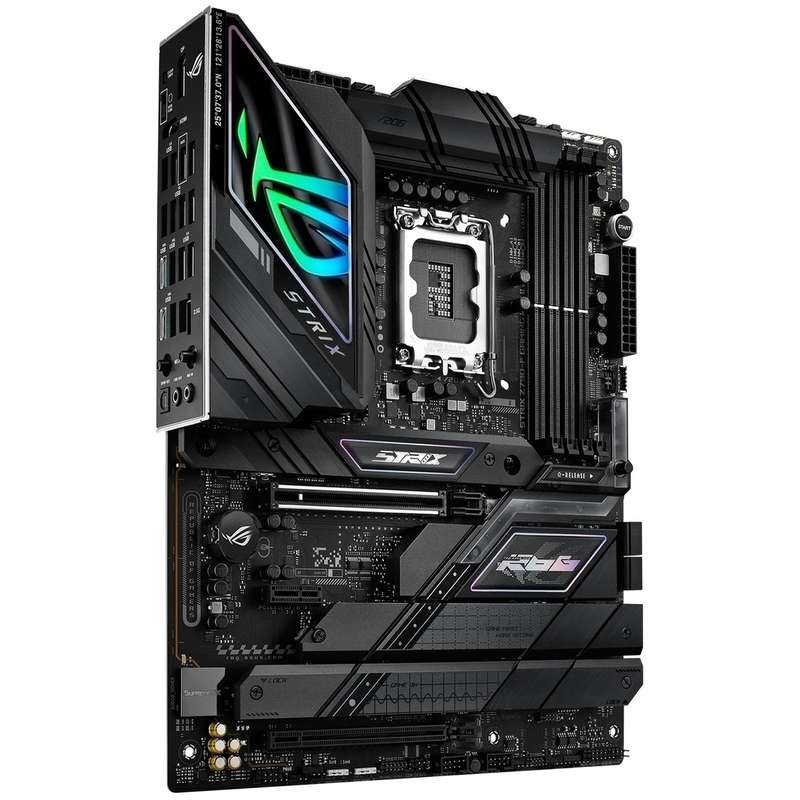

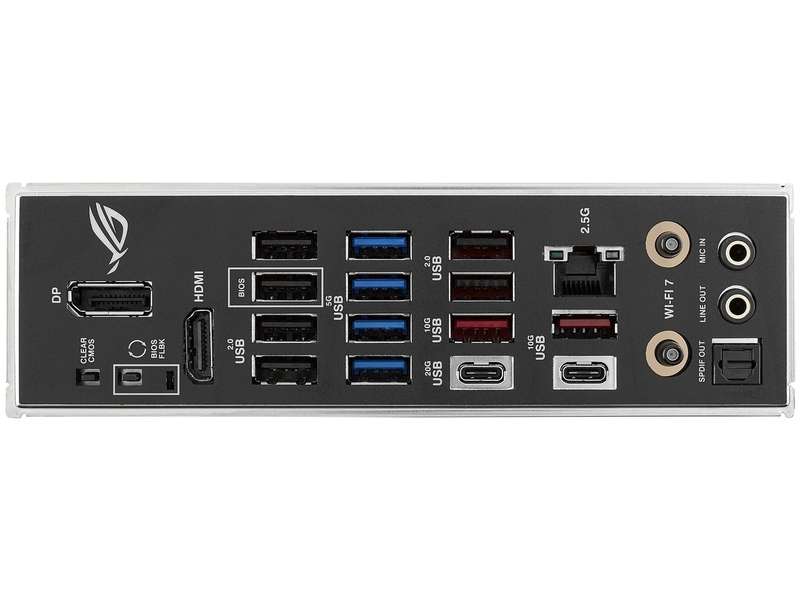

Asus ROG Strix Z790-F Gaming WiFi II Intel 12th / 13th / 14th Gen Socket LGA 1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM Memory slots, 1x DisplayPort, 1x HDMI Port, 1x PCI-e 5.0 x 16 slot (Supports x16 mode), 1x PCI-e 4.0 x16 slot (Supports x4 mode), 1x PCI-e 3.0 x1 slot, 5x M.2 slots, 4x SATA 6Gb/s Ports, 1x Intel 2.5Gb Ethernet, Intel Wi-Fi 7, Bluetooth V5.4, USB 20Gbps Port (Type-C), USB 10Gbps Ports (Type-A & Type-C), USB 5Gbps Ports (Type-A), USB 2.0 Ports, ROG SupremeFX 5.1 Surround sound High Definition audio, 2x Gold-Plated audio jacks, 1x Optical S/PDIF out Port, 1x BIOS FlashBack Button, 1x Clear CMOS ButtonOverview:ROG STRIX Z790-F GAMING WIFI IIThe ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intelprocessors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.WIFI 7ROBUST POWER SOLUTIONGEN 5 SUPPORT x1 PCIe 5.0 x16 slotAI COOLING II One-click fan tuningUSB 20GBPS x1 I/O port, and x1 connector for PD 3.0 at 30W8000+ MT/s, AEMP II, XMPDIY-FRIENDLY DESIGNFeatures:Q-ANTENNAWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.PCIESLOT Q-RELEASEA physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.CLEAR CMOS & BIOS FLASHBACKThe Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.START BUTTONThis convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ? CPU, RAM, graphics card, storage devices ? are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.Q-ANTENNAPCIESLOTQ-RELEASEM.2 Q-LATCHCLEAR CMOS &BIOS FLASHBACKSTART BUTTONQ-LEDBUILT FOR SPEED AND EXPANSIONProCool II Power ConnectorsIntelSocket LGA1700 for IntelCore 14th & 13th Gen Processors, IntelCore 12th Gen, PentiumGold and CeleronProcessorsExpansion Slots1 x PCIe 5.0 x16 SafeSlot (x16 ) [CPU]1 x PCIe 4.0 x16 Slot (x4 ) [CHIPSET]1 x PCIe 3.0 x1 slot [CHIPSET]16(90A)+1(90A)+2 Power StagesDDR5 8000+ MT/s (OC)4 x DIMMDual Channel5 x M.2 Slots2 x M.2 22110 (PCIe 4.0 x4)2 x M.2 2280 (PCIe 4.0 x4)1 x M.2 2280 (PCIe 4.0 x4, SATA)ALL-ROUND PERFORMANCERobust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-F II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.LEADING CONNECTIVITYThe ROG Strix Z790-F II delivers next-gen connectivity for ultrafast data transfers and low-latency networking. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel2.5 Gbps Ethernet.Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.PLAY IN STYLEBrooding aesthetics and Aura Sync RGB controls allow the ROG Strix Z790-F II to effortlessly flex between blending in and showing off.UNDENIABLY ROG STRIXWhen the lights are out, the ROG Strix Z790-F II blends into the shadows with its dark pcb and black metal heatinks. Activate the customizable RGB logo on the shroud, and the board makes a bold statment. Transparent layers and subtle brand-centric details add aesthetic depth and texture. Pair the Strix Z790-F II with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.DARE TO BE GREENWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG's commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.INTELUNISONOur latest ROG and ROG Strix Z790 WiFi 7 motherboards offer a seamless tech experience, complemented by a complimentary enablement of Intel Unison (free access until September 30, 2024).Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your computer and tablet or phone, and to do thing like accessing your smartphone's picture photos while you're working on your PC. You can also keep an eye on your text messages and phone notifications while working on your PC and even make calls without touching your phone. Stay connected and in your flow with Intel Unison!Specifications:CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.Chipset Intel Z790 ChipsetMemory 4 x DIMM slots, Max. 192GB, DDR58000+(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory*"Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem IIASUS Enhanced Memory Profile II (AEMP II)Supports DIMM Flex* Supported memory types, data ra
