The ASUS ROG Thor 1600T Gaming Power Supply is engineered for enthusiasts and professionals who demand exceptional power, efficiency, and aesthetics. Designed with high-performance gaming PCs and workstation builds in mind, this 1600W PSU delivers 80 PLUS Titanium-certified efficiency, ensuring minimal power loss and maximum stability. Whether you're an overclocker, content creator, or high-end gamer, the ROG Thor 1600T provides the reliability needed to push your system to its limits.
Featuring 100% Japanese capacitors and a digital power control system, this PSU ensures rock-solid stability and ultra-clean power delivery, essential for high-performance CPUs and GPUs. The 135mm PWM-controlled fan with ROG heatsinks keeps temperatures in check while minimising noise, making it perfect for silent PC builds.
A standout feature of the ROG Thor 1600T is its integrated OLED power display, giving you real-time power consumption insights at a glance. The customisable Aura Sync RGB lighting allows for seamless integration into any gaming setup, adding an extra layer of visual appeal. With ATX 3.0 compatibility, 16-pin PCIe 5.0 support, and a fully modular cable design, this PSU is future-proofed for next-generation GPUs and high-performance hardware.
Built for extreme durability and backed by a 10-year warranty, the ASUS ROG Thor 1600T is the ultimate choice for high-end PC builders who refuse to compromise on quality and performance.
FEATURES:
- Fully Modular Cable System
- 80 PLUS Titanium Certification
- 1600W Power output
- OLED Power Display
- ROG Heatsinks & 135mm PWM Fan
- ATX 3.0 & PCIe 5.0 Ready
- Aura Sync RGB Lighting
SPECIFICATIONS:
- PFC Type: ATX12V
- Efficiency: 80Plus Titanium
- MTBF: >120,000 hrs @ 25°C
- Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials: ROHS
- AC Input Range: 100-240Vac
- DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
- Maximum Load: 20A 20A 133.3A 0.3A 3A
- Combined Load: 100W 100W 1600W 3.6W 15W
- Total Output: 1600W (115V-240V). 1300W (100V-115V)

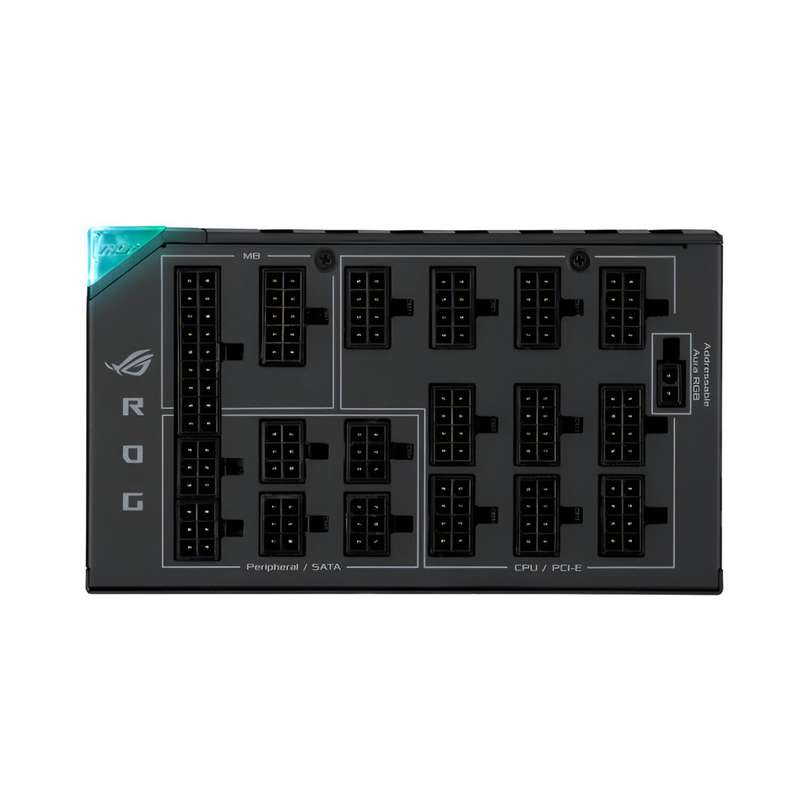

- Cable Connectors:
- MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (component side)
- PCI-E 6+2-pin x 10
- SATA x 12
- PERIPHERAL x 6
- PCIe Connectors: 16-pin (12VHPWR)
- Dimensions: 19 x 15 x 8.6 cm
- Weight: Approx. 2.36 kg
- Protection Features: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP)
WHAT'S IN THE BOX:
- ASUS ROG Thor 1600T Gaming Power Supply 1600W 80+ Titanium x1
