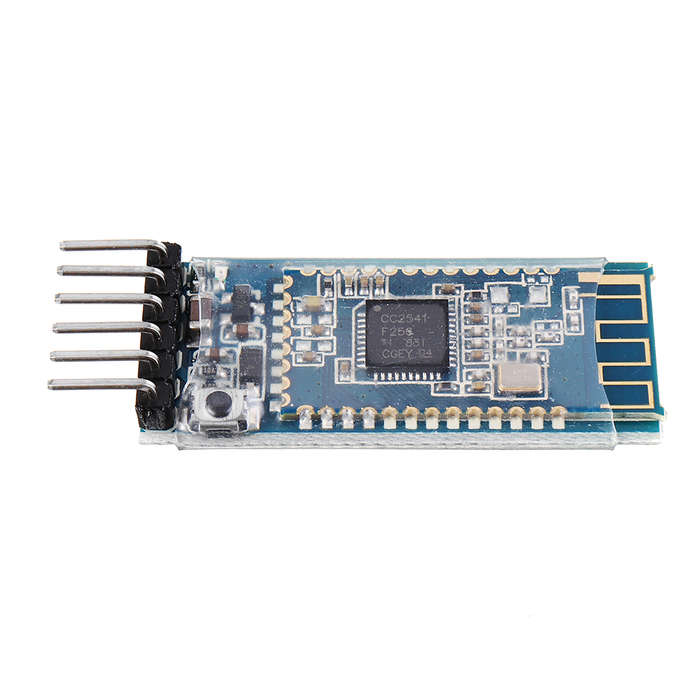

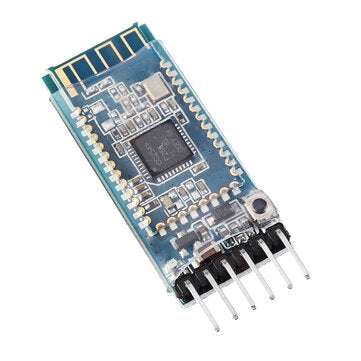

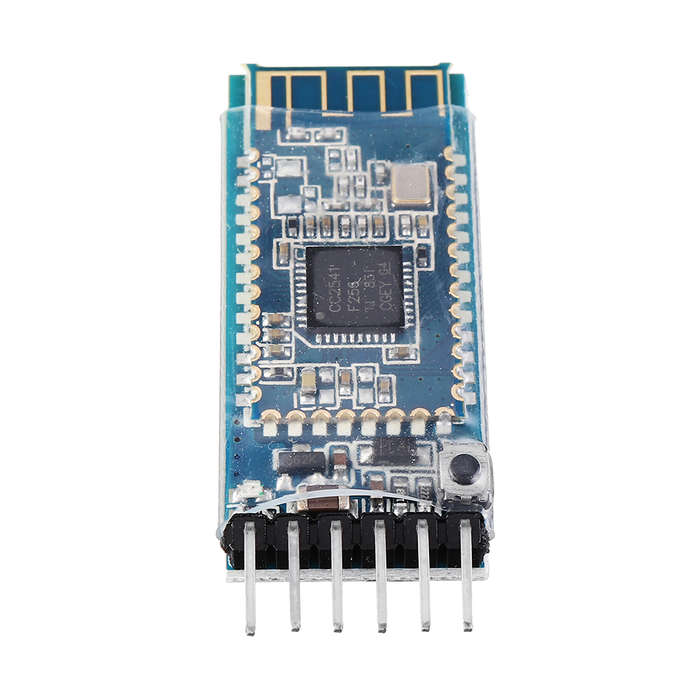

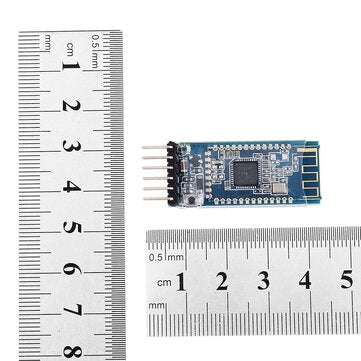

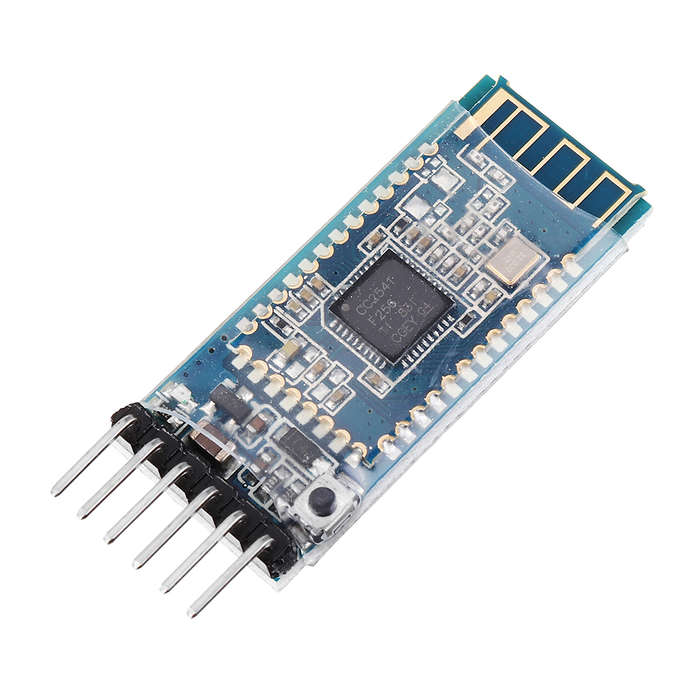

AT-09 4.0 BLE Wireless bluetooth Module Serial Port CC2541 Compatible HM-10 Module Connecting Single

New

20 available

R399.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4038

92.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654092201

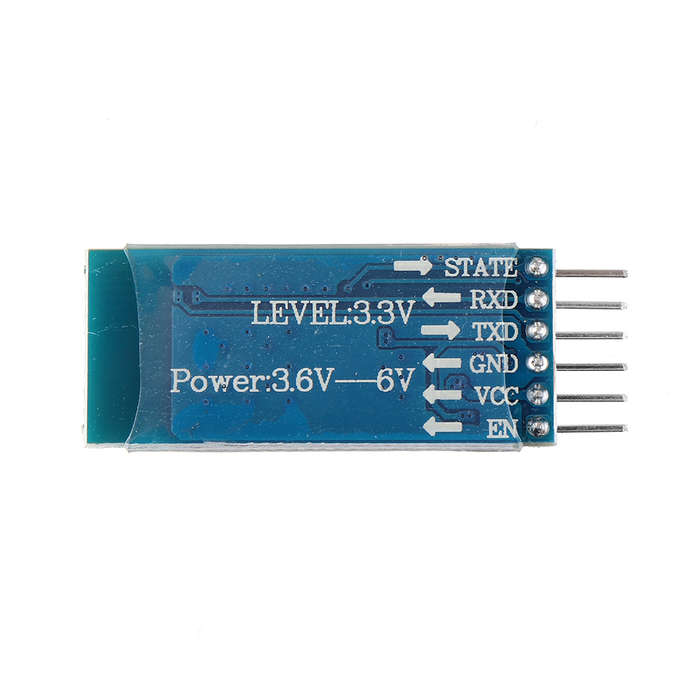

Features: - bluetooth 4.0 module Serial port extraction bluetooth BLE CC2540 CC2541 - The bluetooth module has a backplane, and the HM-10 module is used on this module. - 5V power supply or 3.3V power supply. The serial port level is the same as the power supply voltage. - Built-in level shifting function. Specifications: - Input voltage: 3.3V/5V - If a 5.0V MCU is used to communicate with the bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V. - If a 3.3V MCU is used to communicate with the bluetooth module, the 3.3V power port is powered, and the RX TX logic level is 3.3V. Pin: RX, the serial port receiving end of the bluetooth module is connected to the TXD of the MCU. TX, the serial port sender of the bluetooth module is connected to the RXD of the MCU. GND, ground terminal negative 3.3V, 3.3V power supply at the power supply 5V, power supply 5V power supply Package Incleded: 1 x AT-09 4.0 BLE Wireless bluetooth Module
