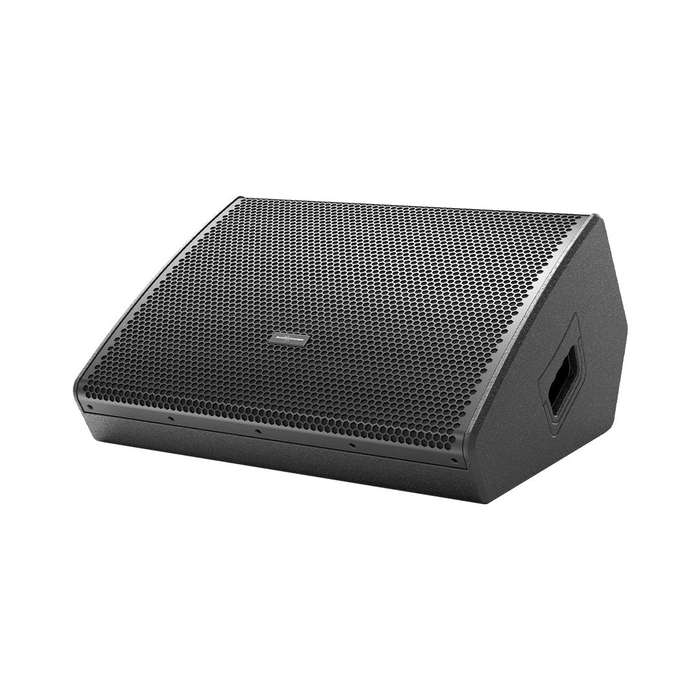

Active DSP Wedge Monitor
WM3210A is Audiocenter's latest active DSP controlled wedge monitor speaker with high-output, reliability and supreme performance.
The Audiocenter WM3210A is perfectly integrated with BrainCore™ technology, with its advanced technology and scientific methodology, Brain Core TM analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving smooth transitions between the LF and HF, excellent frequency response and audio reproduction even at high levels of SPL. The wave guide of WM3210A provides a perfect coverage angle of 60° x 90° , which can achieve symmetrical sound field coverage of large and medium-sized shows and live bands. WM3210A can fulfill the requirements of artists with excellent performance and high audio reproduction. WM3210A is specially designed for touring performance and fixed installation like Live sound reinforcement floor monitor, Touring systems, Clubs, Auditoriums, Theatres and Houses of Worship.
FEATURES
Innovative BrainCore TM technology to improve the audio performance of the system
Class D Amplifier
Symmetrical Wave Guide
Active Speaker DSP
Solid Wood Construction
Advanced Digital FIR Filter Technology
Advanced Cooling System
Customized ProDriver
Sleep mode
Front loaded cabinet design
Type: Active DSP Wedge Monitor
Frequency Response (-6dB anechoic chamber): 50Hz-20KHz
Maximum Calculated SPL/1 M(MAX SPL ): 130dB
LF Driver: Customized driver, 2.0"voice coil
HF Driver: Customized driver, 1.0"exit, 1.75"voice coil
Coverage Angle: 60° X 90°
(Symmetrical)
AMPLIFIER
Amplifier Circuitry: Class D
Power (Peak): 2200W
Frequency Response: 20Hz-20KHz(±0.5dB) <0.05% <0.05%
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System: Cooling with fans, air convection
DSP
Processor 96KHz signal sampling frequency, FIR filtering
Output/ Input
Signal Input/Output: 1 x female XLR, 1x male XLR
Power Input/Output: Power Input/Output
AC Power Operating Range: 100V-130V or 220V-240V (±10%,50/60Hz)
Power consumption: 100W
Cabinet
Cabinet Material: CNC machine plywood
Monitor Angle: 30°
Cabinet Colour: Black is standard and default colour. Consult with Audiocenter sales team for other customized colours
Dimension (WxHxD): 593x320x515mm
Net Weight: 19.0Kg
