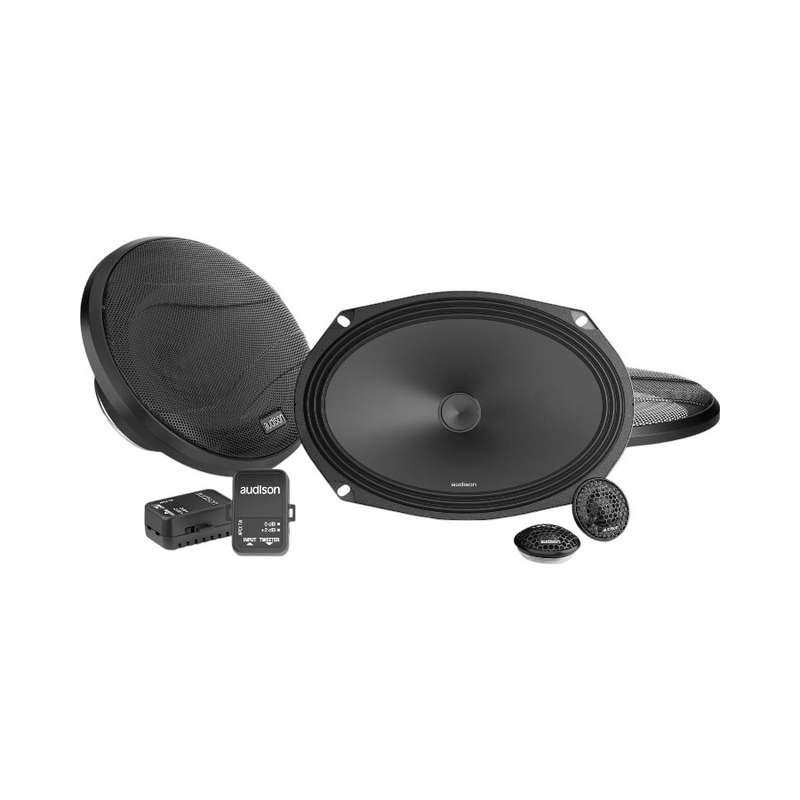

Audison APK 690 Prima Series 6x9" 300w Component Split System

Audison APK 690 Prima Series 6x9"" 300w Component Split System

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.The R & amp;D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.

Woofer Size 690 mm
Tweeter Size 26 mm
Woofer Voice Coil Diameter 25 mm
Tweeter Voice Coil Diameter 20 mm
Crossover Type HP 6 dB Oct - 3,3 kHz
Magnet Size Woofer 90 x 32 x 15
Power Handling - Peak 300 W
Power Handling - Continuous 100 W
Impedance 4 Ohm
Frequency Response 40 - 20 k
Woofer Cone Diameter 171 mm
Xmax Woofer 4 mm
