Automatic Digital Pressure Controller ON OFF Switch 220V For Water Ail Gas Pump

New

20 were available

R1,098.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4010

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

636707474

Specification:
Working Pressure Range: 0-10 Bar, matching with all pumps
Relay Capacity: 220V AC 10A.
Output signal: active output, to provide pump 220V, start the pump below 1.5KW directly.
Fluid Temperature: 80 degrees
Waterproof: IP466
Long Life: can be used continuously for more than 20 million times.
Socket type: International three flat pins plug

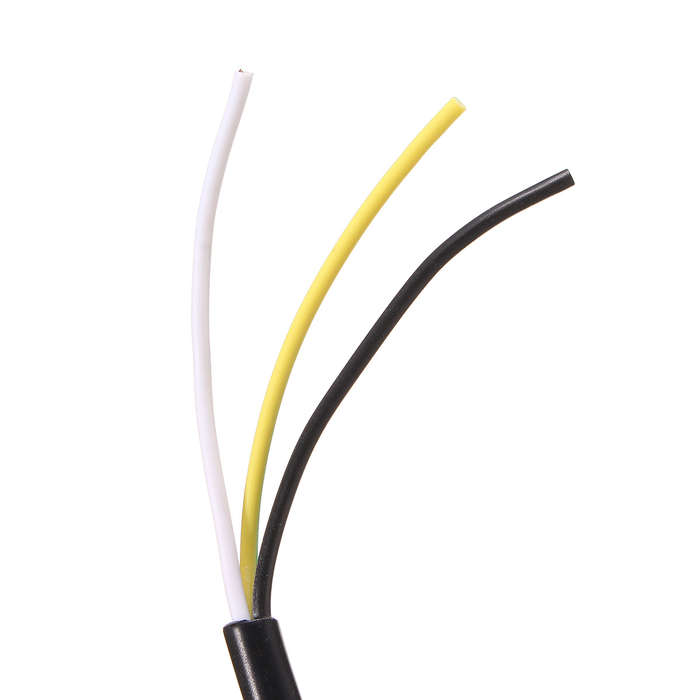

Wiring:(3 wires)
White: Positive
Black: Negative
Green&Yellow: Ground

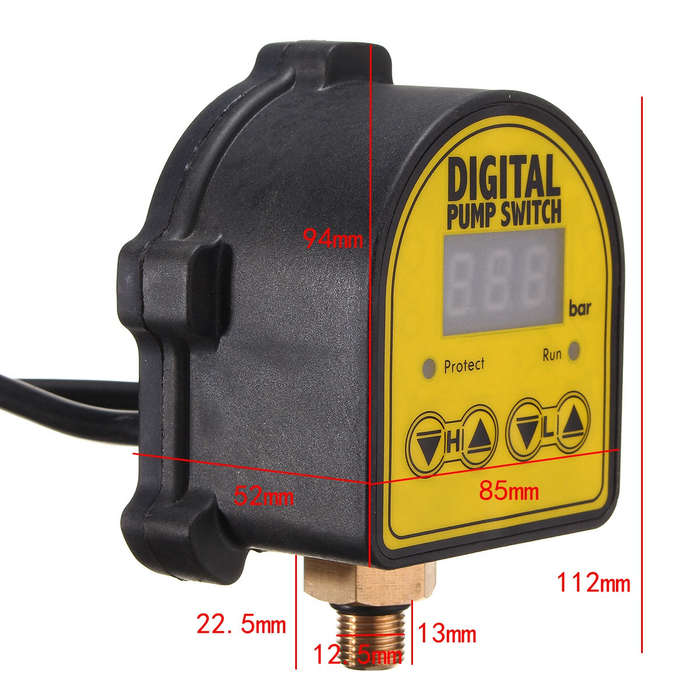

Overall Size: 85x52x112mm
Cable length: the Long one is 88cm ; the short one is 35cm.
Package Size: 12x9.3x9.8cm(LxWxH)

Features:
- Pressure transimitter inside, stable and accuracy.
- Switch of the pump during water shortage and on with water.
- MCU micro computer process chip, safe and intelligent control.
- One-click set up on/off limit.

Installation remarks:
1. If the pump doesn't have a check valve, then a check valve must be installed in front of the pressure, in this case the pump may on/off ,ore frequently.
2. When you turn on the tap water, if the pump is on/off time to time, please adjust the H valve to a larger valve.
3. If the pump keep runs with stopping, please lower the H valve, on the other hand, if th epump doesn't work, please set the L valve higher.

Note:
1. (IMPORTANT) Professional Installation Is Highly Recommended !
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

Package included:
1 x Pressure Switch
1 x English user maual
