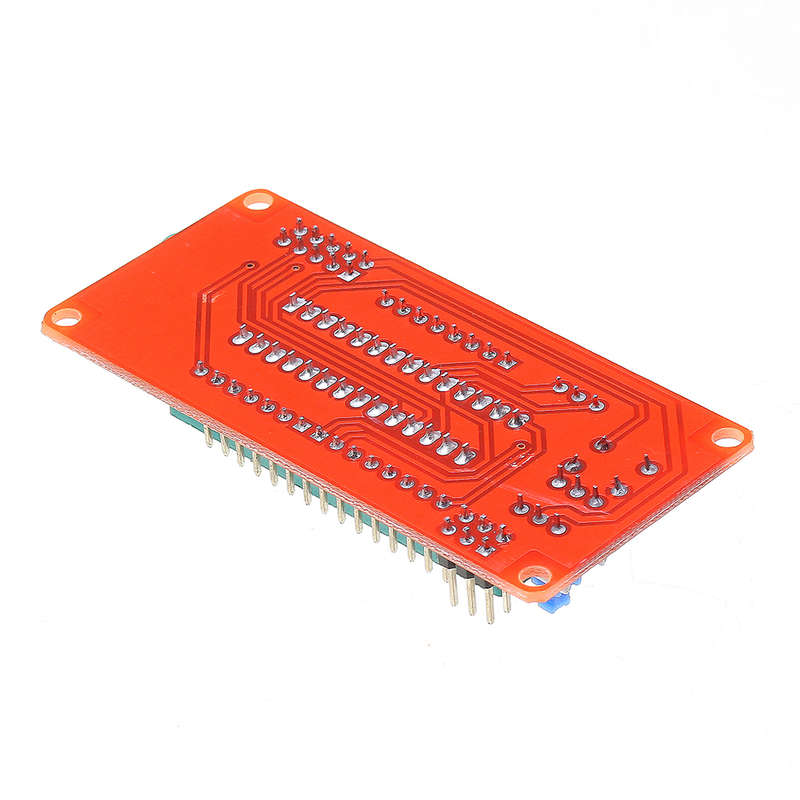

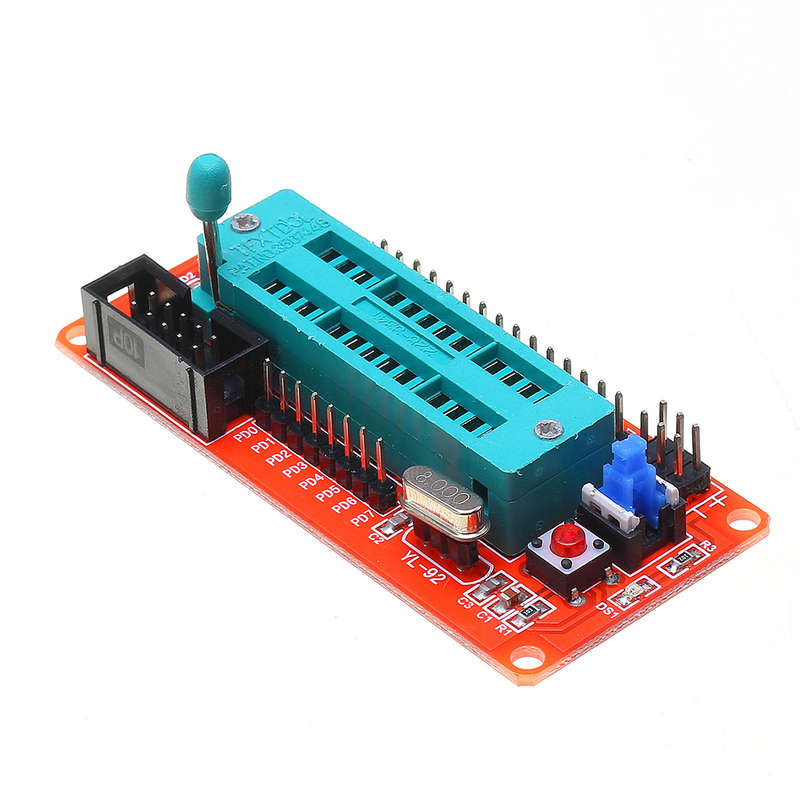

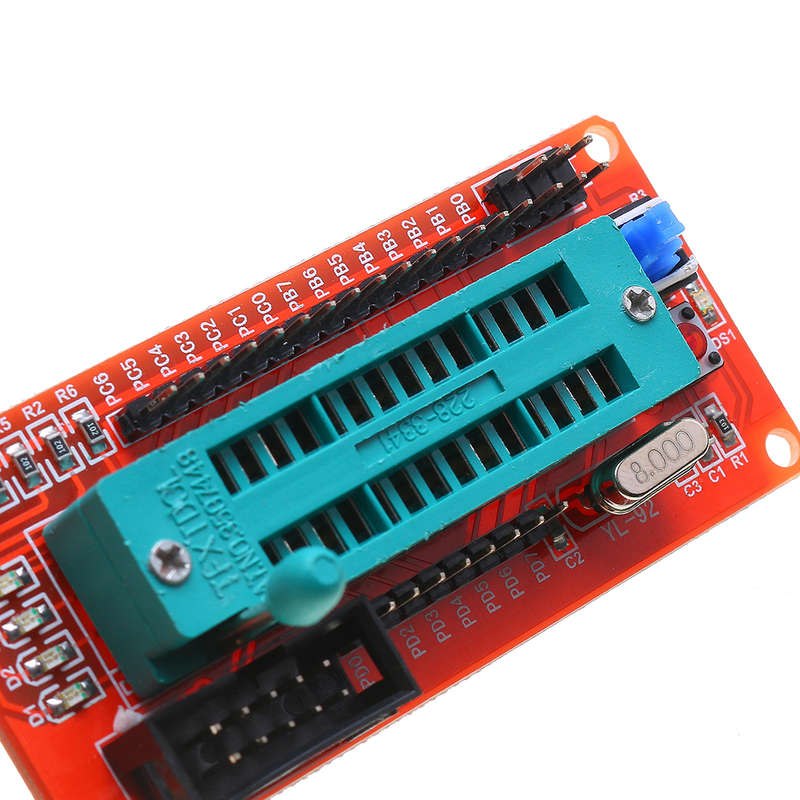

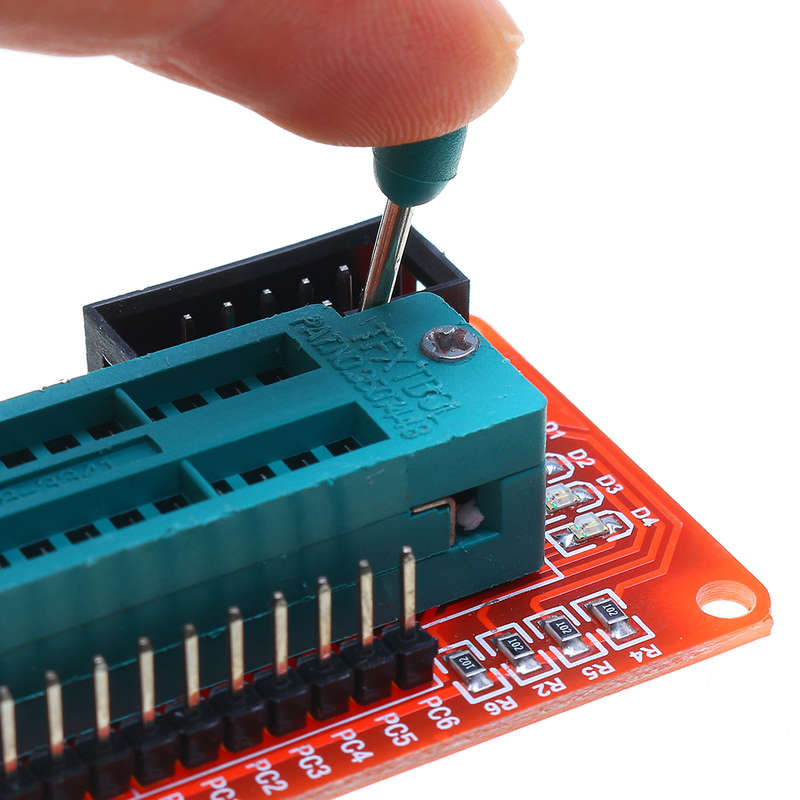

AVR Microcontroller Minimum System Board ATmega8 Development Board

20 available / new

R376.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641117299

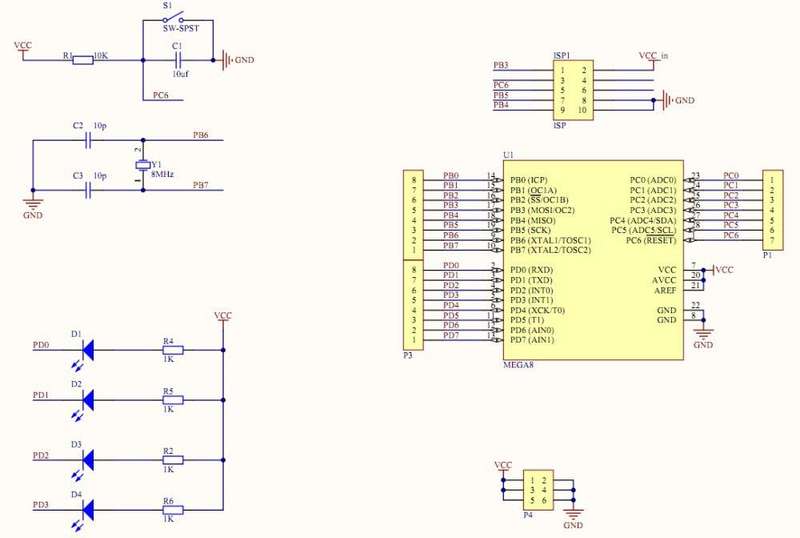

Features: 1. 23 IO pin all the leads. 2. Classic ATmega8 minimum system, eliminating the hassle of soldering 3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, default 8MHZ crystal 4. Support chip: ATmega8 5. Power supply: ISP downloader or external expansion pin power supply 6. External expansion 3 channel VCC, GND, as shown in the pin 7. Reset: Power-on reset and reset button 8. external expansion 4 led lights for easy debugging 9. Power LED (DS1) 10. Standard ISP download interface, by using 51/avr Downloader could easily download the program to achieve minimum system programming (the board does not require a separate power supply, support ISP download interface power supply) Package Included: 1 x AVR Microcontroller Minimum System Board
