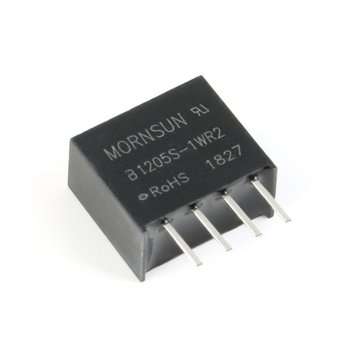

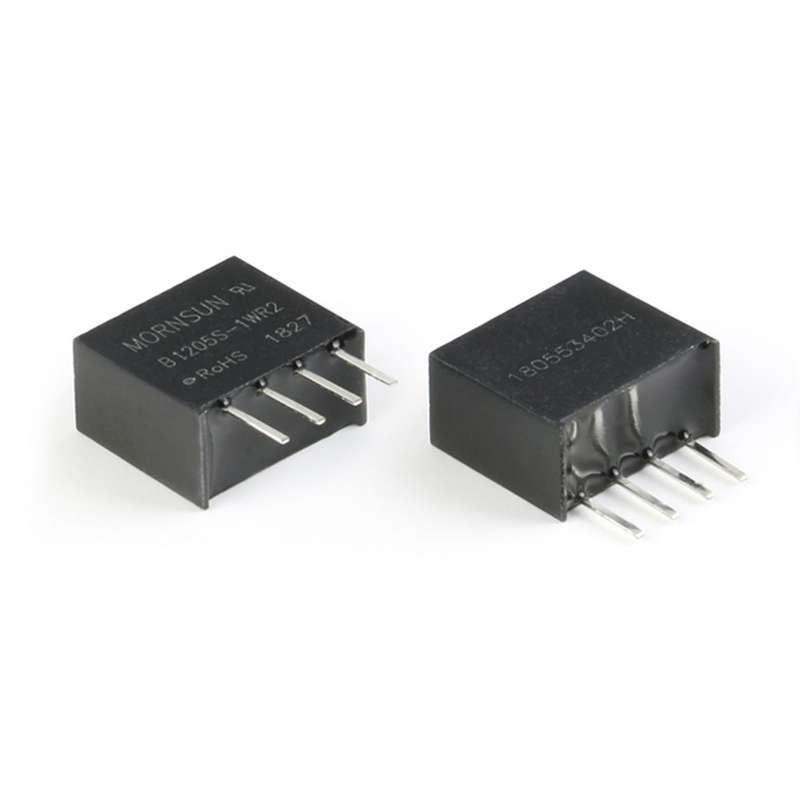

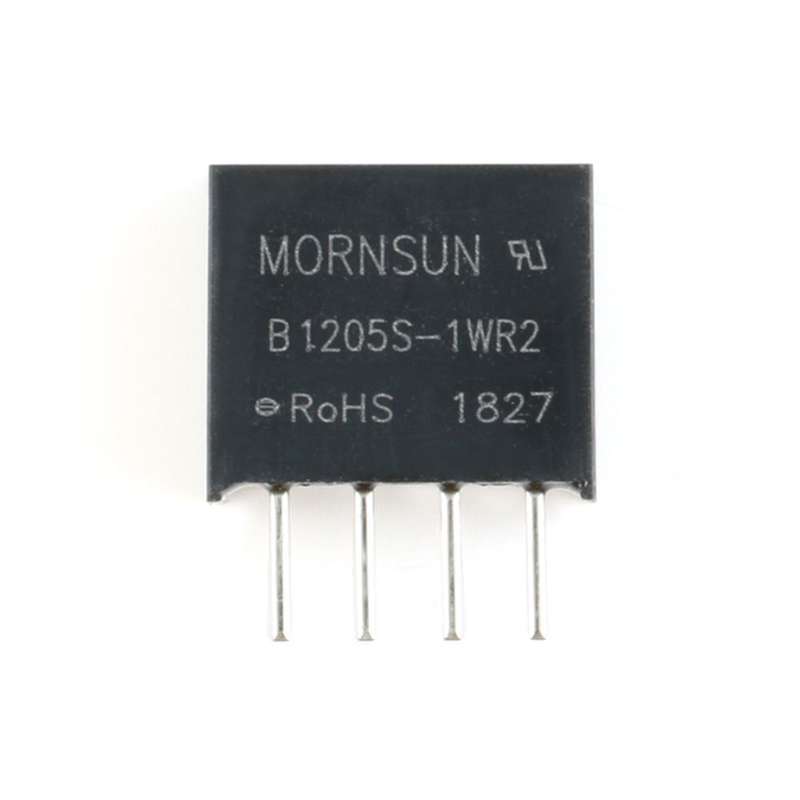

B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V
B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V

B1205S-1WR2 B1205S DC-DC Isolation Power Supply Module Step Down Module Input 12V Output 5V

20 available / new
R357.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
645869592
>>>Manual: to open<<< Overview: The B_S-1WR2 family is specifically designed for applications in the board power system that require a set of voltages that are isolated from the input supply. This product is suitable for to: 1. The input power supply voltage is relatively stable (voltage variation range &pm;10% Vin); 2. Requirements isolation between input and output (isolation voltage a 1500VDC); 3. The output voltage stability and output ripple noise are not high. Specifications: Input voltage: 10.8-13.2V DC Output voltage: 5V DC Output current: 200/20mA (max/min) Full load efficiency: 76/80 Maximum capacitive load: 220uF Features: - High power density - Up to 86% efficiency - Operating temperature range: -40ᆪC to +105ᆪC - Small SIP / DIP package - International standard pin mode - Isolation voltage 1500VDC Package Included: 1 x B1205S-1WR2 DC-DC Power Supply Module Input 12V Output 5V
