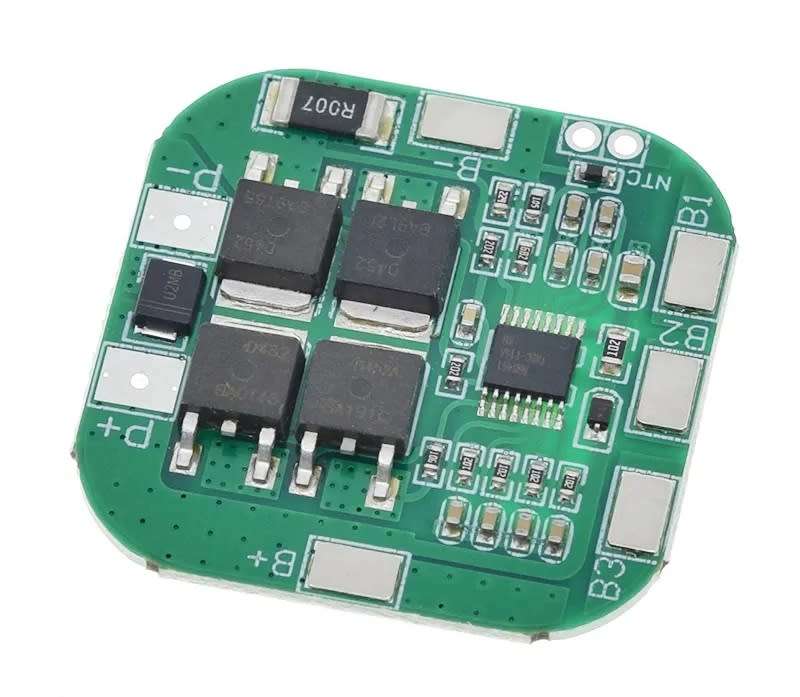

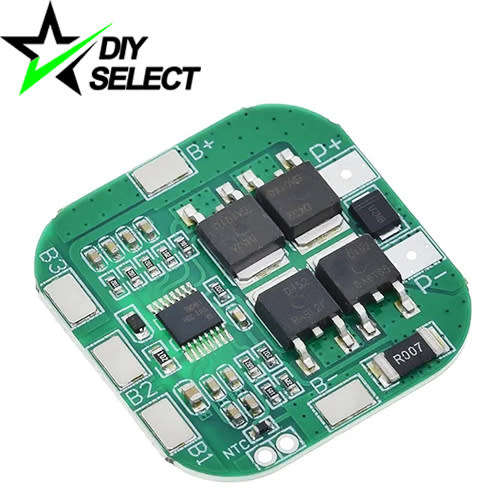

Battery 18650 Li-ion Protection and Balance Board 4s 16.8V 10A / 20A Peak **LOCAL STOCK**

Battery 18650 Li-ion Protection and Balance Board 4s 16.8V 10A / 20A Peak LOCAL STOCK

Name: Battery 18650 Li-ion Protection and Balance Board 4s 16.8V 10A / 20A Peak **LOCAL STOCK**
SKU: BAT282
Price: 55.00 ZAR
Availability: InStock

6 available / new

R55.00

Add to watchlist Watch

Shipping

Free shipping is available from Diy Select - Cape Town for all orders above R2,000.00, using one of our trusted couriers.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Diy Select - Cape Town8452

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Product code

BAT282

Bob Shop ID

642616570

Battery 18650 Protection Board 4s 16.8V 10A:

Specifications:

Charge Voltage: 16.8 - 18V DC
Max Working Current: 10A / 20A Peak
Over Charging Voltage: 4.25 - 4.35V
Over Discharge Voltage: 2.3 - 3.0V

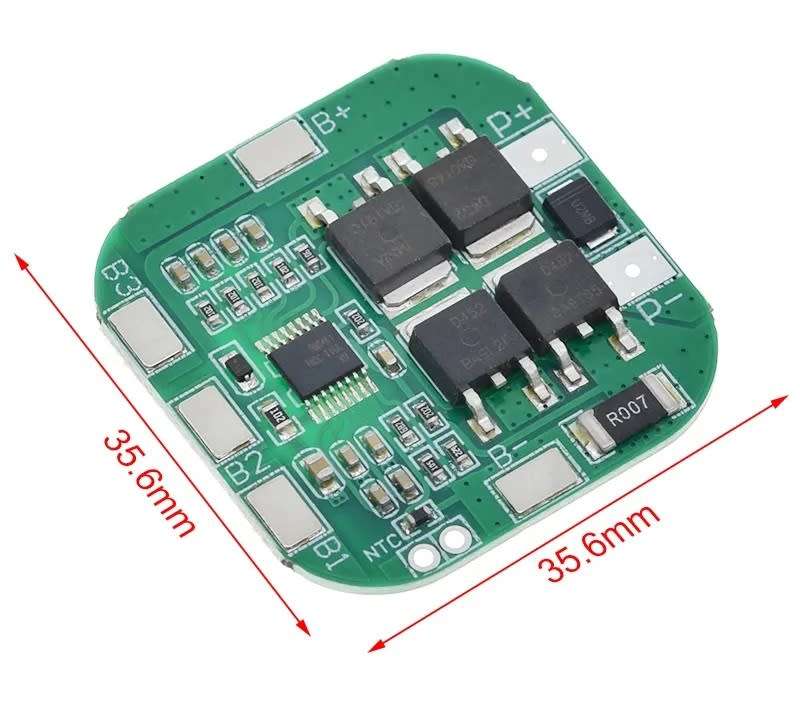

Size: 35 x 35 x 2mm

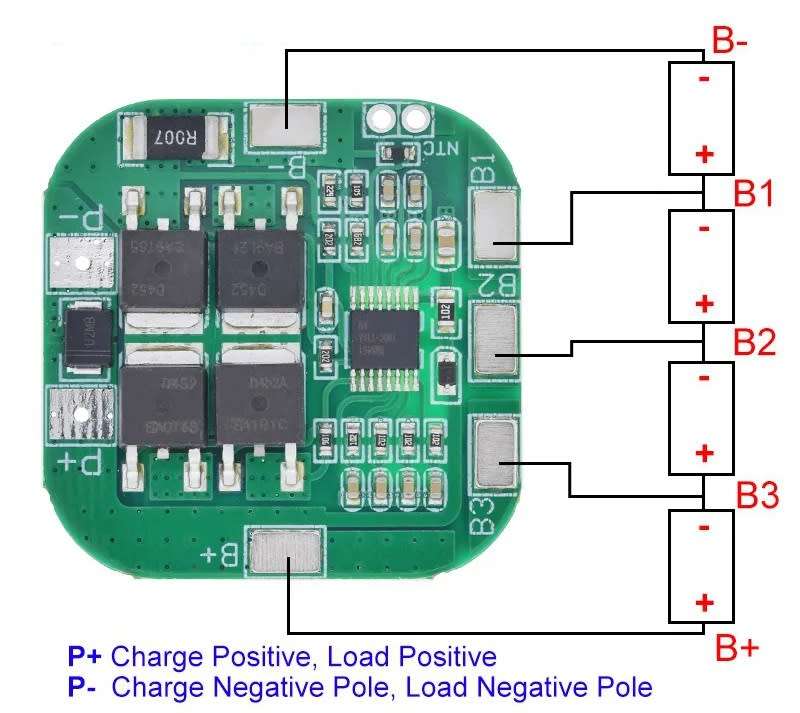

Soldering Point Layout:

B+ connected battery positive;
B1 the connect point between battery 1 and battery 2
B2 connect the point between battery 2 and battery 3
B3 Connect the point between battery 3 and battery 4
B- connect to battery negative end
P- + connection charge / discharge positive
P- connection charge / discharge negative
