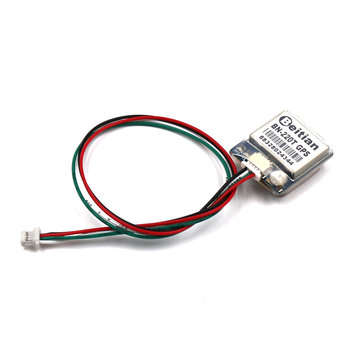

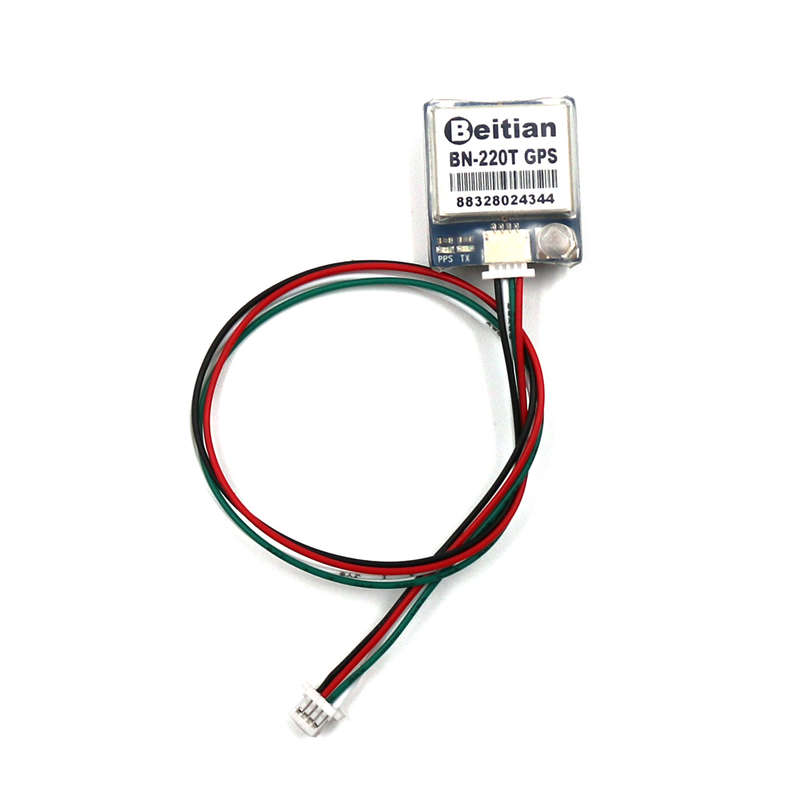

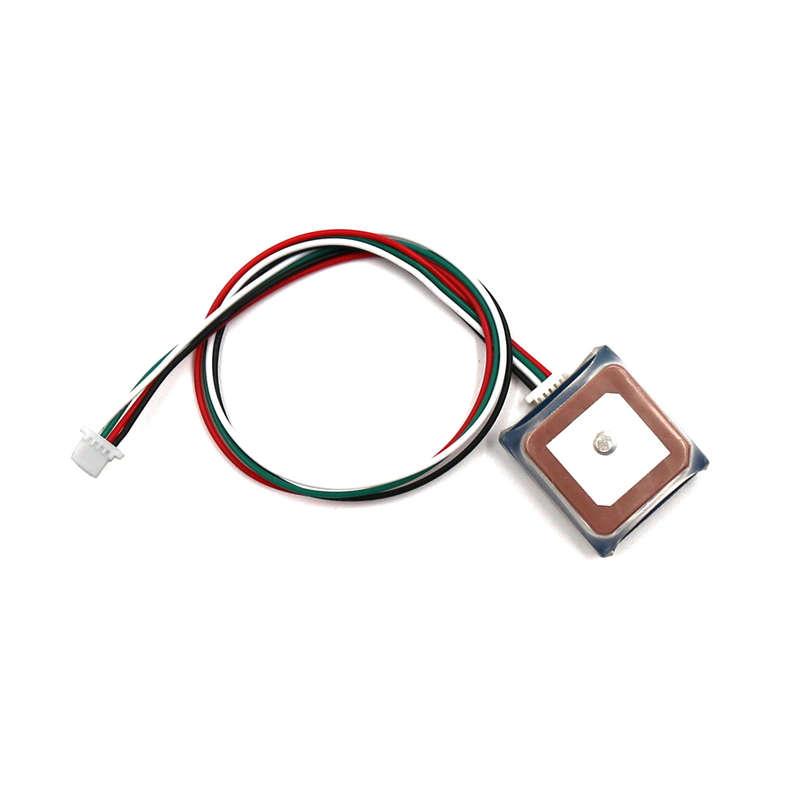

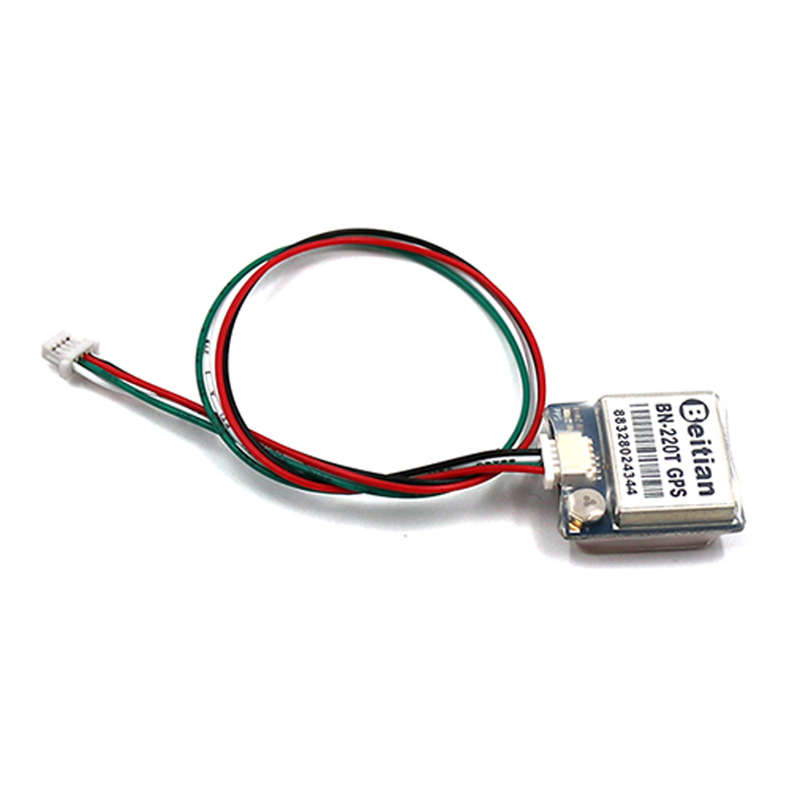

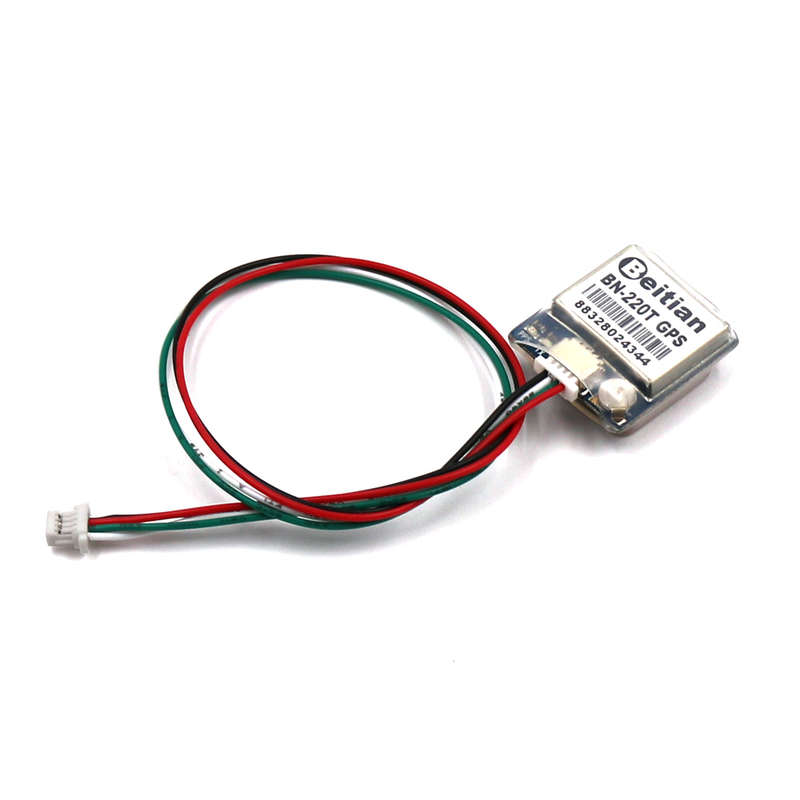

Beitian BN-220T GPS GLONASS Module for APM Pixhawk CC3D Naze32 F3 F4 Flight Controller RC Drone

Specification:

Electrical Characteristics	Chipset	M8030-KT
?	Frequency	GPS L1, GLONASS L1, BEIDOU?B1, GALILEO?E1, SBAS L1, QZSS L1
?	Receiving?Format	GPS,?GLONASS,?BEIDOU, GALILEO,?SBAS,?QZSS. Default GPS, GLONASS, SBAS, QZSS.
?	Channels	72?Searching?Channel
Sensitivity	Tracking	-167dBm
?	Reacquisition	-160dBm
?	Cold Start	-148dBm
?	Hot Start	-156dBm
Accuracy	Position Horizontal	2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
?	Velociti	0.1m/sec 95% (SA off)
?	Timing	1us synchronized to GPS time
Acquisition Time	Cold Start	26s
?	Warm Start	25s
?	Hot Start	1s
Data Output	Support?Rate	4800bps?to?921600bps,?Default 9600bps
?	Data Level	TTL Level
?	Data Protocol	NMEA-0183?or UBX, Default?NMEA-0183
?	NMEA Message	RMC, VTG, GGA, GSA, GSV, GLL
?	Update Rate	1Hz-10Hz,?Default?1Hz
?	FLASH	4M FLASH, Store the configuration permanently
Operational Limits	Altitude	50,000m Max
?	Velociti	515m/s Max
?	Acceleration	Less than 4g
Power Consumption	VCC	DC?Voltage?3.0V-5.5V,?Typical:?5.0V
?	Current	Capture?50mA@5.0V
Mechanical Specifications	Dimension	22mm20mm8mm
?	Weight	8.3g
?	Connector	1.00mm?4pins?connector
Environment	Operating Temp	-40 ?ﾣC ~ +85?ﾣC
?	Storage?Temp	-40?ﾣC ~ +105?ﾣC

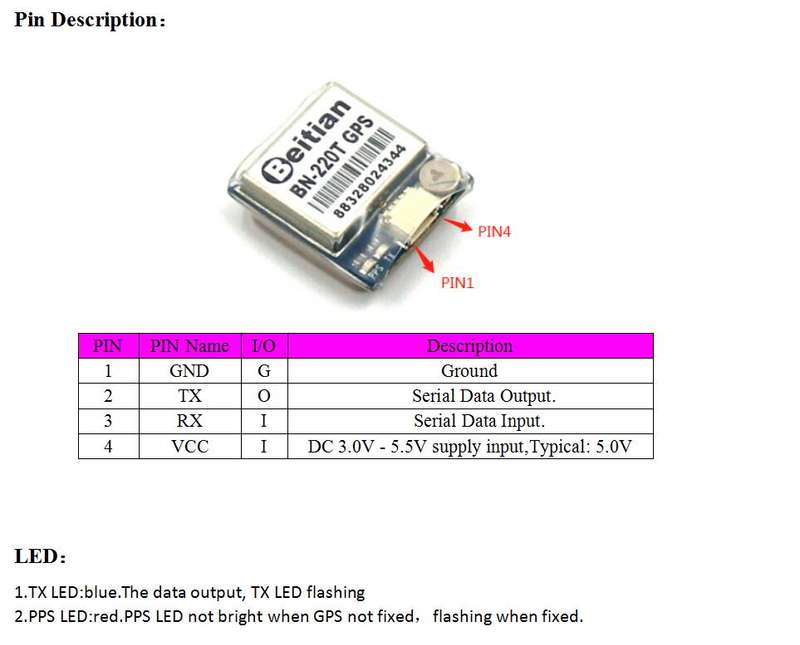

LED	Built-in?LED	TX LED:?blue.?The data output, TX LED flashing
?	?	PPS LED:?red.?PPS LED not bright when GPS not fixed, flashing when fixed
