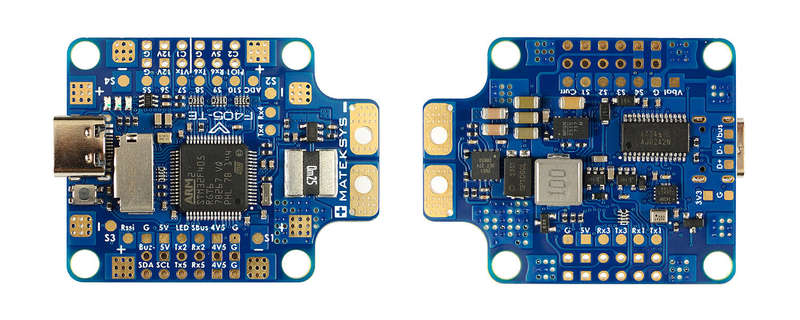

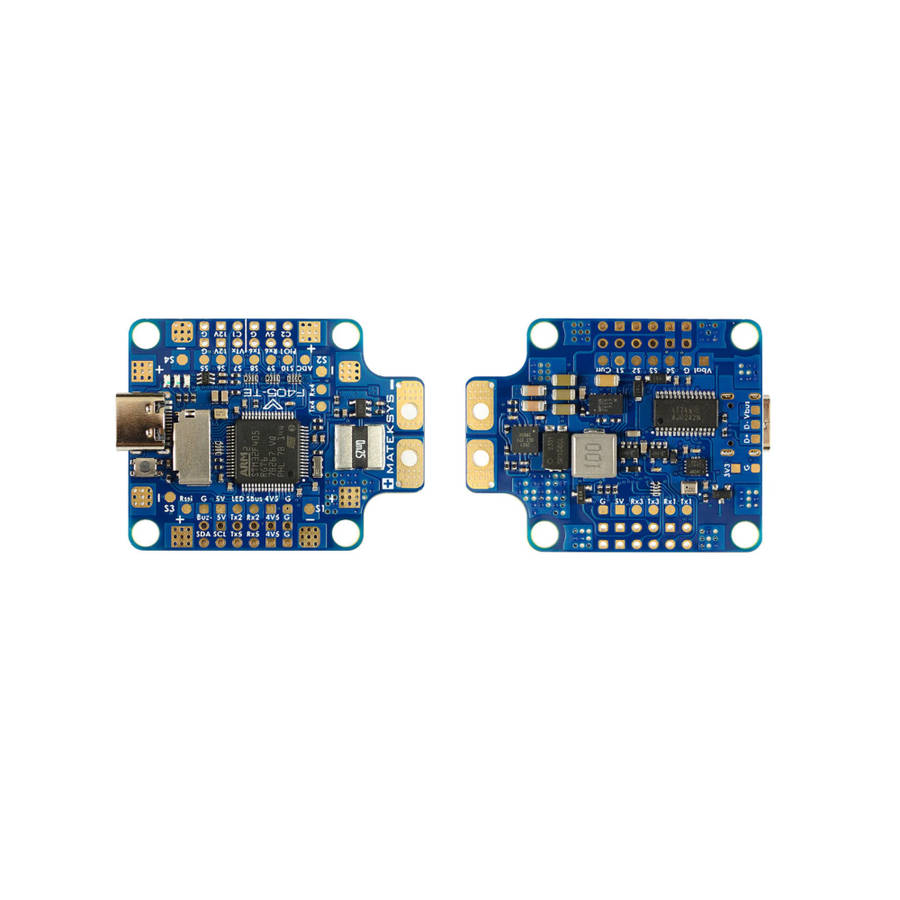

Matek F405-TE Flight Controller

Matek F405-TE Flight Controller

4 available / new
Only 4 left – grab it before it’s gone!
R2,223.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAT060
Bob Shop ID
612483940

Specifications

  • MCU: 168MHz STM32F405RGT6
  • IMU: ICM42688-P (SPI)
  • Baro: SPL06-001 (I2C)
  • OSD: AT7456E (SPI)
  • Blackbox: MicroSD slot (SPI)
  • 6x UARTs,  1x Softserial_Tx option(INAV/BF)
  • 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 1x spare PINIO
  • 4x individual ESC power/signal pads
  • 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Input

PDB Specifications

  • Input: 9~36V (3~8S LiPo)
  • PDB: 4x 35A (Max.4x 50A)
  • BEC: 5V 1.5A
  • BEC: 12V 2A
  • LDO 3.3V: 200mA
  • Current Senor: 220A,  3.3V ADC  (INAV/BF scale 150,  ArduPilot  66.7 A/V)
  • Battery Voltage divider 1K:20K (INAV scale 2100,  BF scale 210,  ArduPilot BATT_VOLT_MULT 21.0)

Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE_SD
  • BetaFlight: MATEKF405TE

Physical

  • Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
  • Dimensions:  36 x 46 mm
  • Weight: 10g

Including

  • 1x F405-TE
  • 6x silicon grommets M4 to M3
  • 1x Rubycon ZLH 35V/470uF (Low ESR)
