Matek H743-WING Flight Controller V3
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Westlake business Park, Westlake
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Monday, 6 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
751523
Bob Shop ID:
612483926

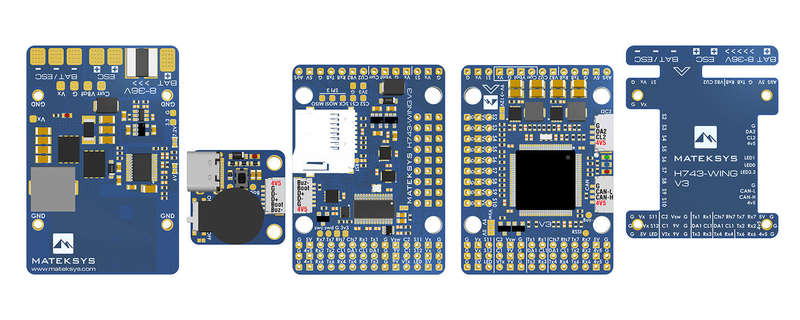

Matek's H743-WING V3 Flight Controller arrives with new features and improvements over the original. This FC features a STM32H743VIT6 MCU running at 480MHz, dual gyro - ICM42688-P(SPI1) + ICM42605(SPI4), DPS310 (I2C2) barometer, and much more.
Compared to V2, the board now has updated gyros and color has changed to blue.
Specifications:

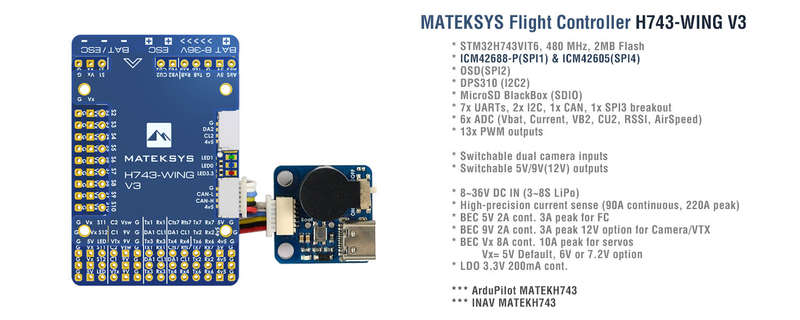

- MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- IMU: ICM42688-P(SPI1) + ICM42605(SPI4)
- Baro: Infineon DPS310 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card slot (SDIO)
- 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 13x PWM outputs(including "LED" pad)
- 2x I2C
- 1x CAN
- 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x SPI3 breakout
- USB/Beep Extender with Type-C(USB2.0)
- Dual Camera Inputs switch
- 5V/9V(12V) for Camera/VTX power switch
- High-Precision Current Sense (90A Continuous, 220A Peak)
- Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
- ADC VB2 voltage divider: 1K:20K
- ADC AirSpeed voltage divider: 20K:20K
- Static power 160mA@5V
- Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
- Dimensions: 54 x 36 x 13 mm
- Weight: 30g with USB extender
Firmware:
- ArduPilot(ChiBiOS): MATEKH743
- INAV: MATEKH743
PDB:
- Input voltage range: 8~36V (3~8S LiPo) w/TVS protection
- 2x ESC power pads
- Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in ArduPilot)
- Sense resistor: 90A continuous, 220A peak.
BEC 5V output:
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Output 5.15 +/- 0.1V DC
- Continuous current 2 Amps, 3A Peak
BEC 9V /12V output:
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current 2 Amps, 3A Peak
- 12V option with Jumper pad
BEC Vx output:
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current 8 Amps, 10A Peak
BEC 3.3V output:
- Linear Regulator
- Continuous current: 200mA
Includes:

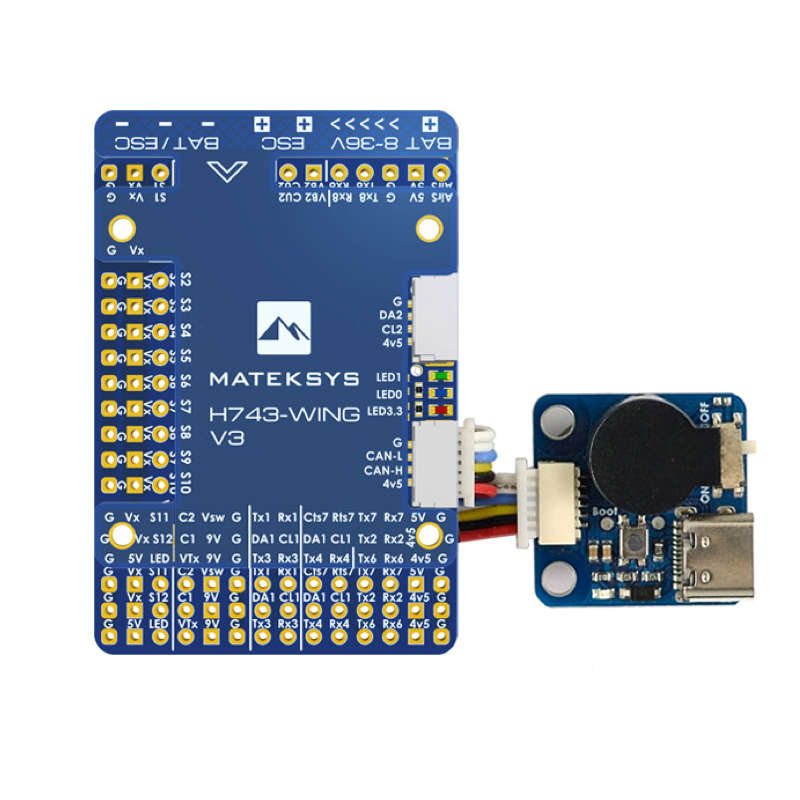

1x Matek H743-WING V3 Flight Controller
1x USB (Type-C ) / Passive Buzzer Extender
1x 20cm JST-SH-6P to JST-SH-6P cable for USB Extender
2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C Port
1x Rubycon ZLH 35V 470uF Capacitor
Dupont 2.54 pins (Board is shipped Unsoldered)
