Bixolon 3 inch Kitchen Impact Receipt Printer - SERIAL USB LAN

The Bixolon SRP-275III is a high-quality, reliable Dot-Matrix Receipt printer. It features an ergonomic design for easy cleaning and paper loading, making it ideal for Hospitality Kitchens, Front of House, or Retail printing. This printer produces high-quality two-color printing even in harsh environments, reaching speeds of up to 5.1 lines per second (at 40 columns). With Intelligent Logic Seeking and Bi-Directional Print Technology, it can reliably print multiple copies of the same data, totaling up to 18 million lines.

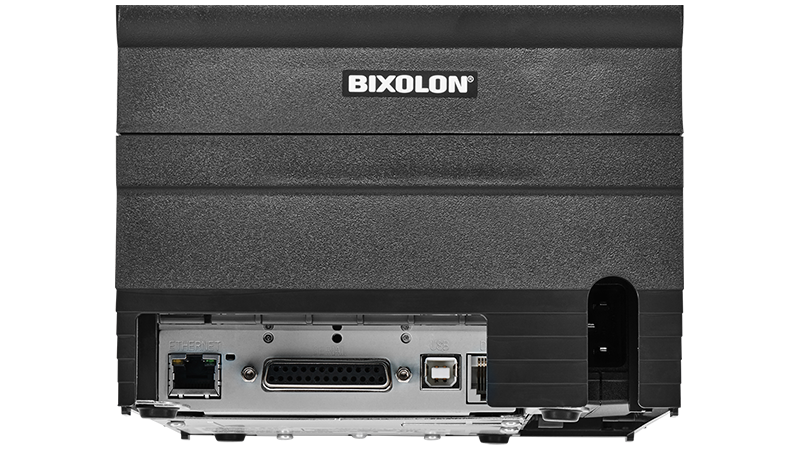

Built-In Interface:

• USB V2.0 FS + Serial + Ethernet* (*with DHCP enabled)
• USB V2.0 FS + Parallel
• USB V2.0 FS + Serial

Powerful Printing Performance:

• Fast printing speed of up to 5.1 lines per second (at 40 columns), 8.5% faster than competitive models
• High-reliability mechanism (up to 18 million lines)
• Two-color printing for high-quality fonts and graphics

User-Friendly Design:

• Anti-jam technology
• Internal kitchen buzzer and built-in SMPS
• Simple drop-in paper loading
• Stand-alone and wall-mount options

Specifications

Print Characteristics:

• Print Method: 9 Pin Serial Dot Matrix
• Print Speed: Up to 5.1 lps (at 40 columns)
• Print Resolution: 80 dpi (Horizontal), 144 dpi (Vertical)
• Print Width: Up to 63.5 mm
• Sensors: Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark

Media Characteristics:

• Media Type: Receipt
• Media Width: 76.5 mm
• Media Roll Diameter: Up to 83 mm
• Media Thickness: 0.06 ~ 0.085 mm
• Supply Method: Easy Paper Loading

Physical Characteristics:

• Dimensions (W x D x H): 160 x 239 x 157 mm (6.29 x 9.40 x 6.18 inches)
• Weight:
  • 2.4 kg (5.29 lbs.)


Electrical:

• EnergyStar Certified
• External Power Supply Housed Internally (Adaptor 24V/2.5A, 50/60Hz)
• Drawer Port: 2 ports (via y-type adaptor)

Performance Characteristics:

• NV Image Memory: 256 Kbytes (mono)
• Receive Buffer: 64 Kbytes
• User-Defined Buffer: 64 Kbytes
• Interface:
  • USB V2.0 FS + Serial + Ethernet*
  • USB V2.0 FS + Parallel
  • USB V2.0 FS + Serial (*with DHCP enabled)

Environment Characteristics:

• Temperature:
  • Operating: 0 ~ 40°C (32 ~ 104°F)
  • Storage: -20 ~ 60°C (-4 ~ 140°F)
• Humidity:
  • Operating: 10 ~ 80% RH
  • Storage: 10 ~ 90% RH

Software:

• Emulation: BXL / POS
• Drivers / Utilities:
  • Windows Driver, OPOS / JPOS Driver
  • Linux / Mac CUPS Driver, Virtual COM USB / Ethernet Driver
• Utility Program: SDK / Plugin
  • Android / iOS / Windows SDK, Linux SDK, Chrome SDK, Web Print SDK
• MDM: BIXOLON Profile Manager
  • XPM, XCM (Windows, Android)

Fonts / Graphics / Symbologies:

• Character Size:
  • Font A: 9 x 9
  • Font B: 7 x 9
  • KOR: 17 x 9
  • CHN: 16 x 16
• Characters Per Line:
  • Font A: 35
  • Font B: 40
  • KOR: 20
  • CHN: 22
• Character Sets:
  • Alphanumeric: 95
  • Extended Graphics: 128 x 27 page
  • International: 48
• Graphics: Supports user-defined fonts, graphics, formats, and logos
