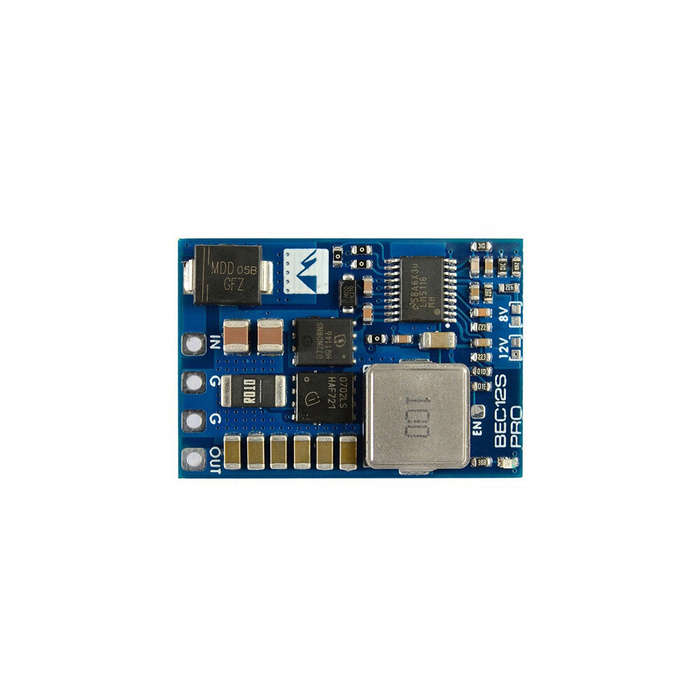

Blue - Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input f Blue - Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input f
Blue - Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input f Blue - Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input f

Blue - Matek Systems 12S Pro BEC Step-Down Module with TVS Protection 9V-55V To 5V/8V/12V-5A Input f

New 1 available
Indicative market price: R1,440.48
Only 1 left – grab it before it’s gone!
R957.90
34% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2028838-POA11135495
Bob Shop ID
652210321

Feature:
-9V to 55V wide operating input voltage range with TVS protection.

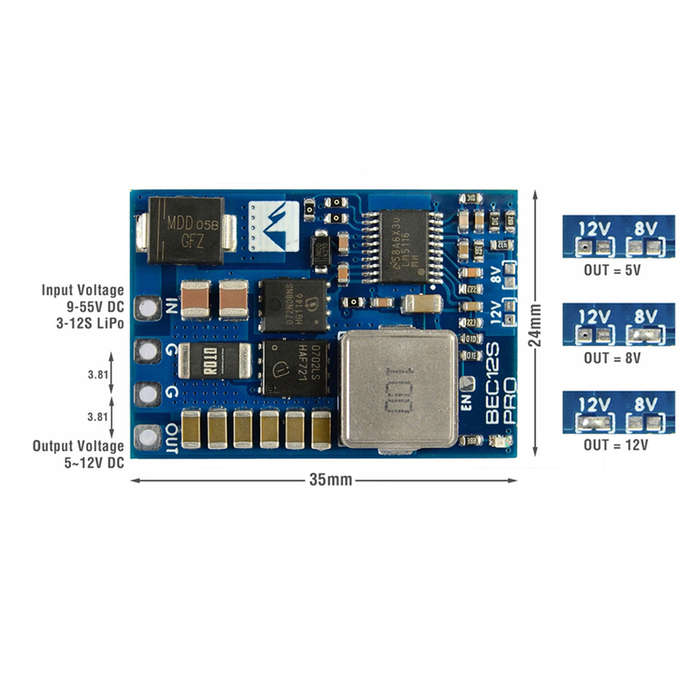

-3× output voltage options, 5.2V, 8V or 12V, default 5.2V.
-Synchronous switching step-down (buck) regulator with typical efficiency of 88% to 96%
-Supports up to 5A continuous output current, 9A peak current.
- Output ripple 30mV (VIN=50V, output 5.2V@5A), 60mV (VIN=50V, output 12V@5A).
- No reverse input voltage protection.
- Thermal shutdown output short circuit tolerance (2 seconds).

Specifications:
Brand:MATEK
Item Name: BEC 12S-PRO Step-Down Module
Standby current: 5~10mA
Overcurrent protection & self-recovery dropout voltage: 2V (input>=14V is required for stable 12V output)
Pin spacing: 3.81mm
Dimensions: 35×24×5.5mm
Weight: 5g

Package included:
1x MATEK BEC 12S-PRO Step-Down Module
