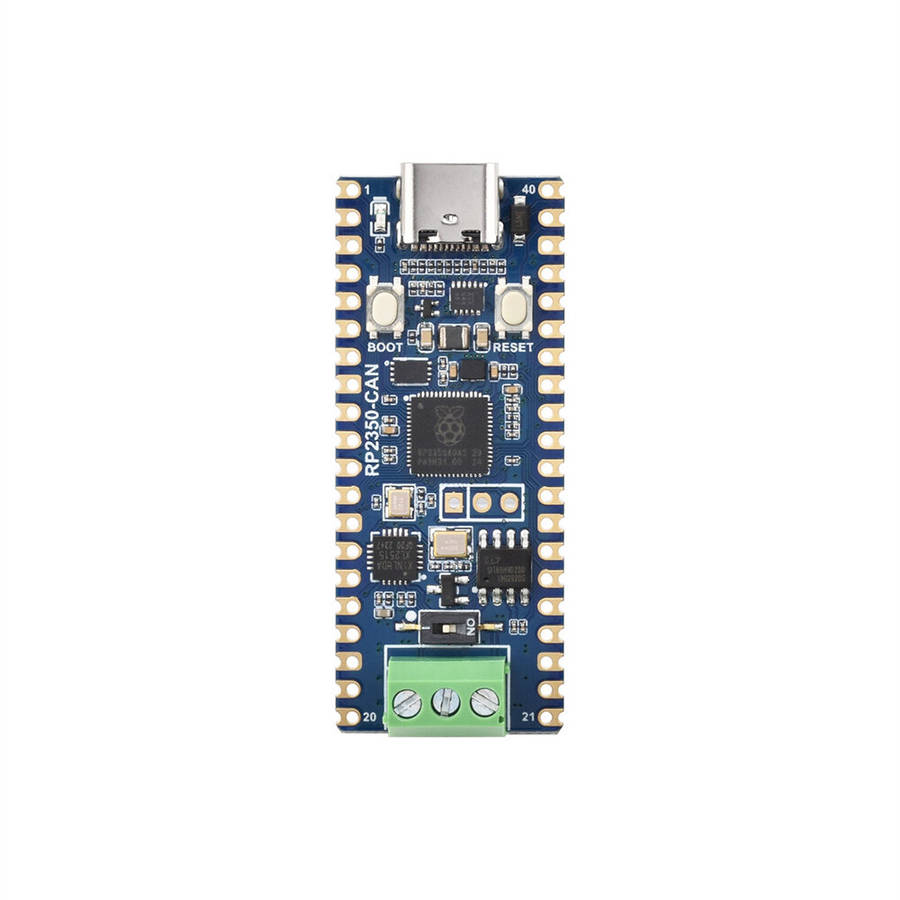

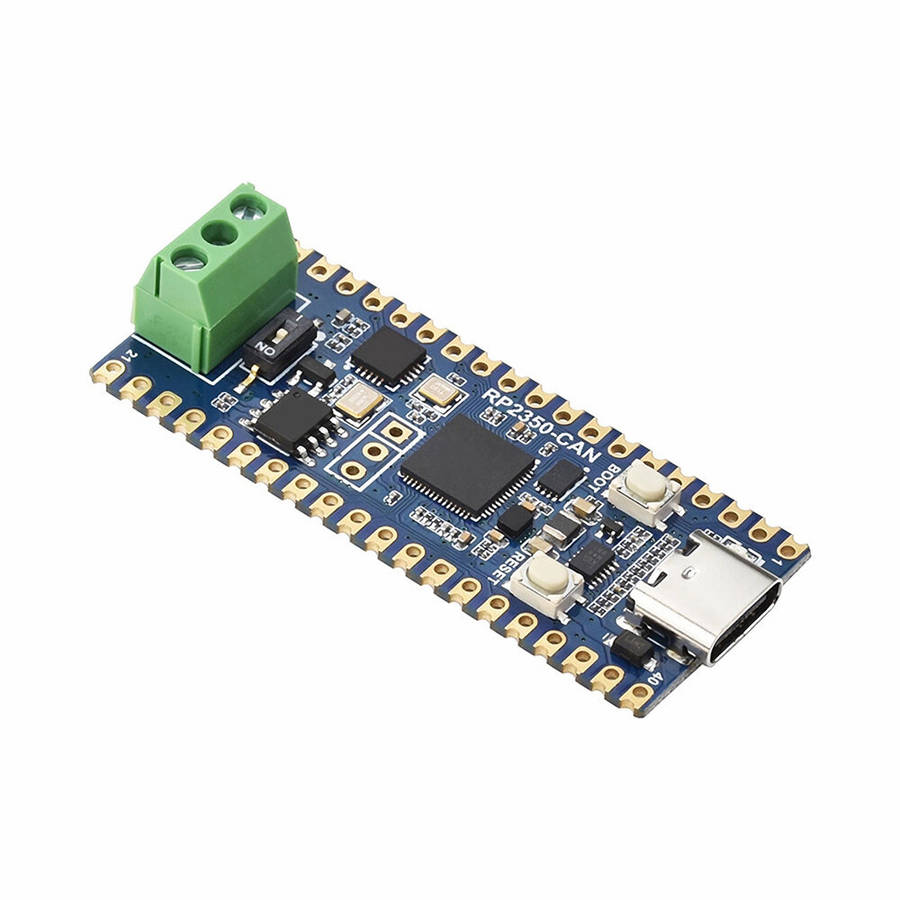

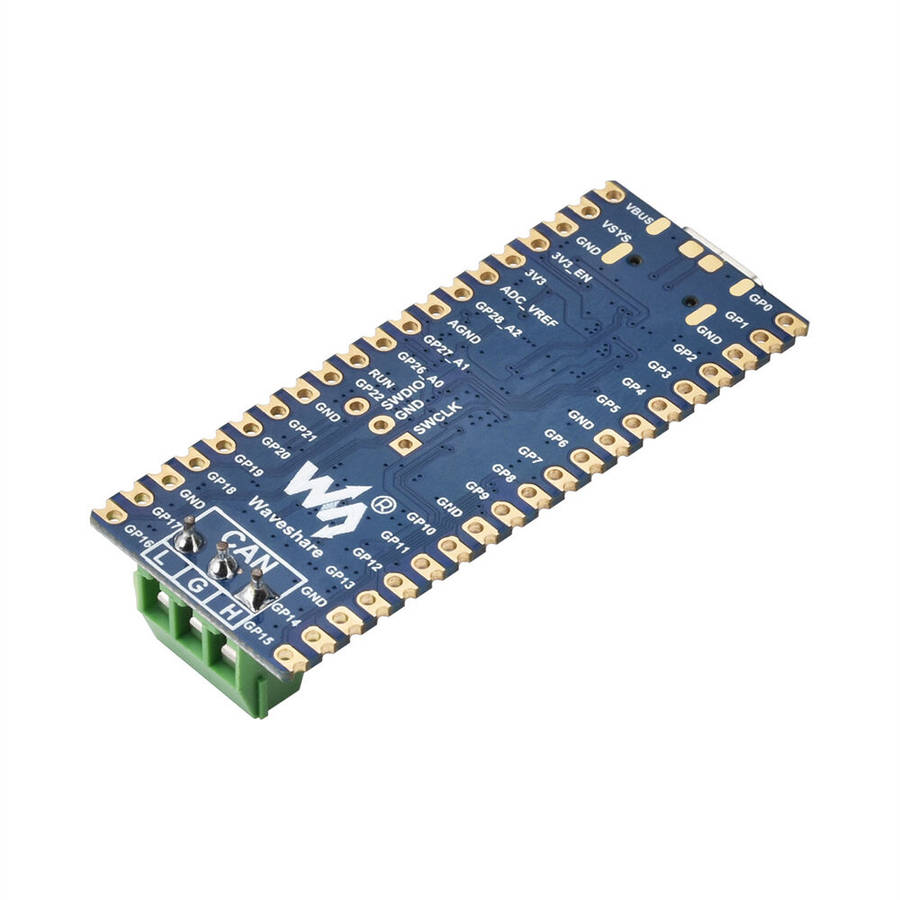

Specifications: Microcontroller: Raspberry Pi RP2350A
CPU Architecture: Dual-core ARM Cortex-M33 & Dual-core Hazard3 RISC-V; Clock Speed: 150MHz
Memory: 520KB SRAM, 4MB On-chip Flash
CAN Controller: XL2515, supporting CAN V2.0B; Communication Rate: Up to 1Mbps
Interfaces: 2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x PWM Channels
External Connections: Type-C interface, USB 1.1 host and device support
Programmable Pins: 12 Programmable I/O (PIO) pins
Additional Features: On-chip timer, integrated temperature sensor, floating-point library acceleration
Power Management Modes: Low-power sleep and standby modes
Mounting: Mail slot design for simplification of PCB integration
Features: 1. Dual-Core & Dual-Architecture Processing
Powered by dual ARM Cortex-M33 and Hazard3 RISC-V cores, e
