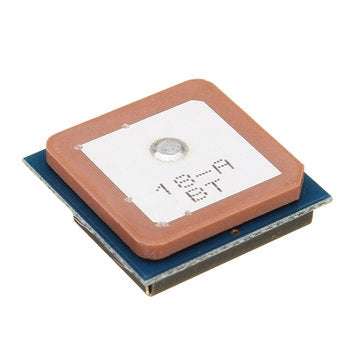

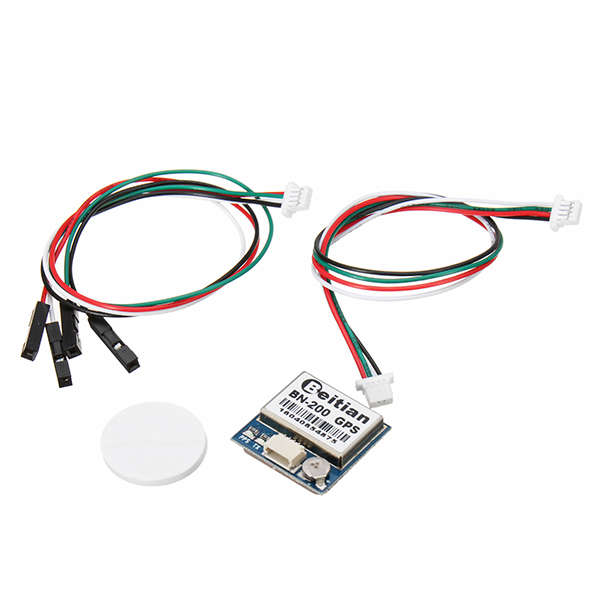

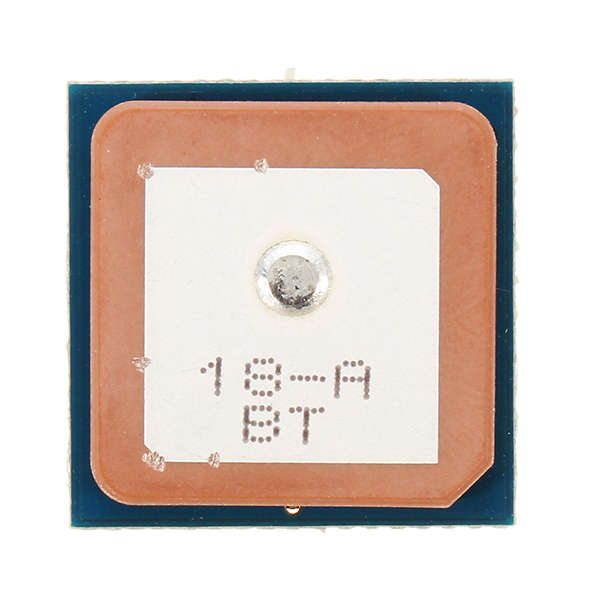

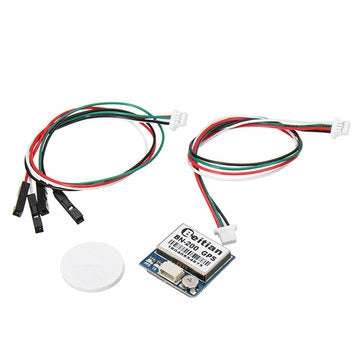

BN-200 Small Size M8030 Chipset GPS Module Antenna GPS GLONASS Dual GNSS Module With 4M FLASH 20mmx2

20 available / new

R567.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3501

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641118565

Feature:

Parameter	Specification
Electrical Characteristics	Chipset	M8030-KT
	ReceivingFormat	GPS,GLONASS,Galileo,BeiDou,QZSSandSBAS
	Frequency	GPS L1, GLONASS L1, BeiDou B1,SBAS L1, Galileo E1
	Channels	72SearchingChannel
Sensitivity	Tracking	-167dBm
	Reacquisition	-160dBm
	Cold start	-148dBm
	Hot start	-156dBm
Accuracy	Position Horizontal	2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
	Velocity	0.1m/sec 95% (SA off)
	Timing	1us synchronized to GPS time
Acquisition Time	Cold Start	26s
	Warm start	25s
	Hot start	1s
Data and Update Rate	SupportRate	4800bpsto921600bps,Default 9600bps
	Data Level	Default TTL level
	Data Protocol	NMEA-0183or UBX, DefaultNMEA-0183
	Single GNSS	1Hz-18Hz
	Concurrent GNSS	1Hz-10Hz,Default1Hz
Operational Limits	Altitude	50,000m Max
	Velocity	515m/s Max
	Acceleration	Less than 4g
Power consumption	VCC	DCVoltage3.0V-5.5V,Typical:5.0V
Power consumption	Current	Capture50mA/5.0V
Mechanical Specifications	Dimension	20mm20mm6mm
	Weight	5.2mm
	Connector	1.00mm spacing 4pins connector
Environment	Operating temp	-40 ﾣC ~ +85ﾣC
Environment	StorageTemp	-40ﾣC ~ +105ﾣC

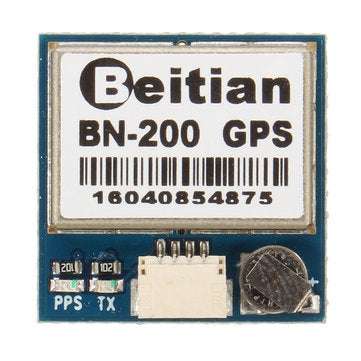

LED	built-inLED	TX LED:blue.The data output, TX LED flashing
LED	built-inLED	PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
