BN-200 Small Size M8030 Chipset GPS Module Antenna GPS GLONASS Dual GNSS Module With 4M FLASH 20mmx2

New 20 available
R567.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654093641
Feature:

Parameter Specification
Electrical Characteristics Chipset M8030-KT
ReceivingFormat GPS,GLONASS,Galileo,BeiDou,QZSSandSBAS
Frequency GPS L1, GLONASS L1, BeiDou B1,SBAS L1, Galileo E1
Channels 72SearchingChannel
Sensitivity Tracking -167dBm
Reacquisition -160dBm
Cold start -148dBm
Hot start -156dBm
Accuracy Position Horizontal 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity 0.1m/sec 95% (SA off)
Timing 1us synchronized to GPS time
Acquisition Time Cold Start 26s
Warm start 25s
Hot start 1s
Data and Update Rate SupportRate 4800bpsto921600bps,Default 9600bps
Data Level Default TTL level
Data Protocol NMEA-0183or UBX, DefaultNMEA-0183
Single GNSS 1Hz-18Hz
Concurrent GNSS 1Hz-10Hz,Default1Hz
Operational Limits Altitude 50,000m Max
Velocity 515m/s Max
Acceleration Less than 4g
Power consumption VCC DCVoltage3.0V-5.5V,Typical:5.0V
Current Capture50mA/5.0V
Mechanical Specifications Dimension 20mm*20mm*6mm
Weight 5.2mm
Connector 1.00mm spacing 4pins connector
Environment Operating temp -40 ᆪC ~ +85ᆪC
StorageTemp -40ᆪC ~ +105ᆪC

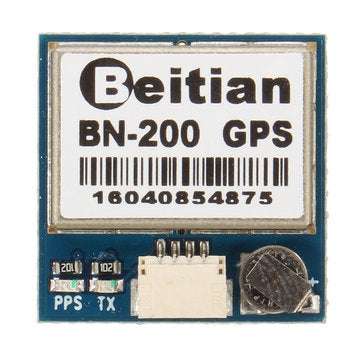

LED built-inLED TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed






















































Package included:

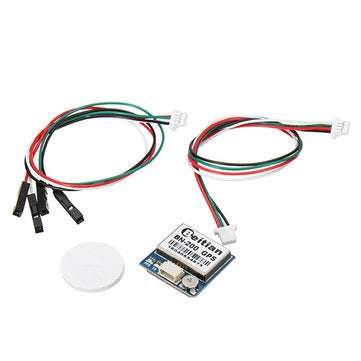

1 xBN-200 Small Size M8030 Chipset GPS Module



, , , , , , , , ,
