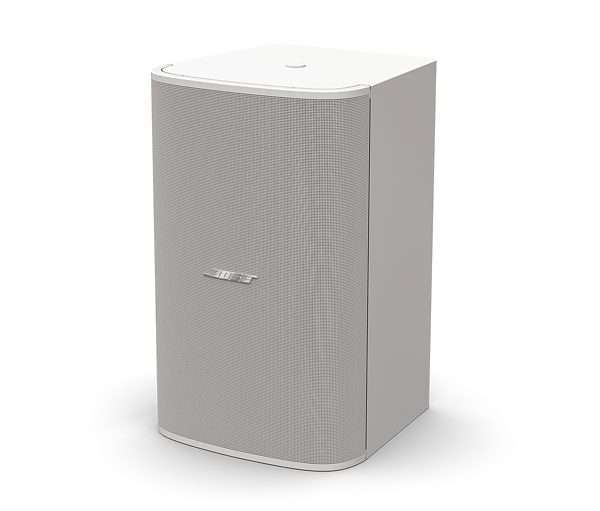

Bose Professional DesignMax DM10S-Sub Subwoofer - Each - White

Bose Professional DesignMax DM10S-Sub Subwoofer - Each - White

Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesginMax subwoofers complement and enhance any DesignMax installation.

Features:

• Combine DesignMax models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

• Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

• Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

Specifications:

Technical Summary
Frequency Response (+/-3 dB)
41 - 108 Hz

Nominal coverage (H x V)
Onmidirectional below 200 Hz

Power Handling, peak
1200 W

Maximum SPL @ 1m
115 dB

Frequency Range (-10 dB)
35 - 125 Hz

Power Handling, long-term continuous
300 W

Sensitivity (SPL/1W @ 1 m)
90 dB

Nominal Impedance
8 (transformer bypass
