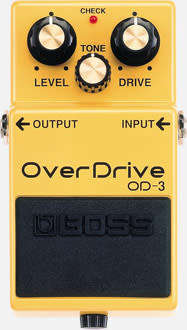

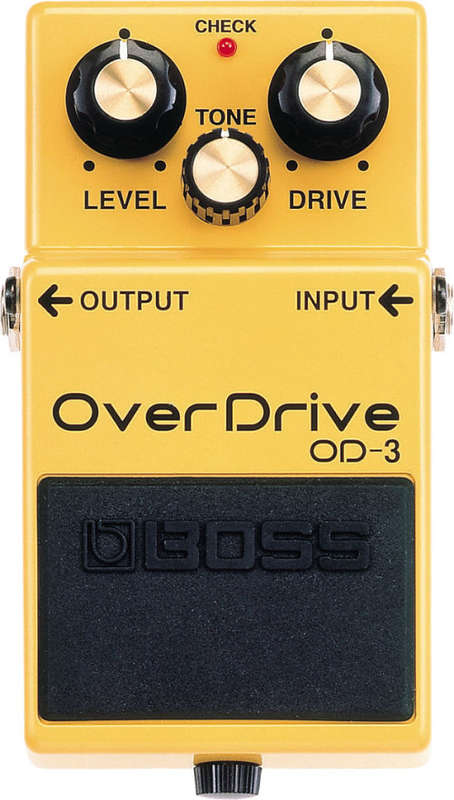

BOSS OD-3 OVERDRIVE

Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
Straightforward Drive, Tone and Level controls
BOSS five-Year Warranty

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
DRIVE knob
TONE knob
LEVEL knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
15 mA
Expected battery life under continuous use
Carbon: Approx. 34.5 hours
Alkaline: Approx. 56 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width
73 mm
Depth
129 mm
Height
59 mm
Weight (including battery)
370 g
