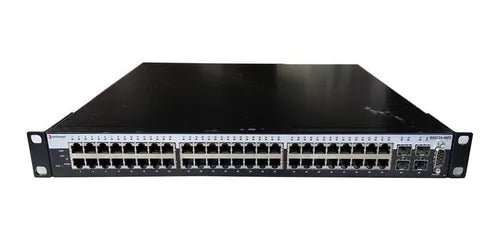

The refurbished Brocade B5G124-48P2 is a high-performance 48-port Gigabit Ethernet switch designed for enterprise and campus networks. Featuring full IEEE 802.3af/at PoE+ support, it provides up to 30W per port and 375W total system power, enabling simplified deployment of IP phones, cameras, and wireless access points without additional power infrastructure.
With a switching capacity of 96 Gbps and stacking support, the B5G124-48P2 offers high throughput and scalability. Its reliable hardware design and enterprise-class features make it ideal for high-density environments requiring both performance and power delivery.
Key Features & Benefits
48 x Gigabit Ethernet PoE+ ports with auto-negotiation and MDI/MDI-X support
4 x Combo SFP uplink ports for flexible fiber connectivity
2 x dedicated stacking ports for switch-to-switch scalability
96 Gbps switching capacity and 71.4 Mpps forwarding performance
Per-port PoE monitoring with overload and short circuit protection
Enterprise-class Layer 2 switching with stackable design
1U rackmount chassis with built-in power supply
Ideal Uses
High-density office environments requiring PoE+ for IP endpoints
Scalable network core or access layer switching with stacking
Campus deployments needing fiber uplinks and flexible expansion
Edge switching for VoIP, CCTV, or wireless access infrastructure
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Product Type: Managed Gigabit PoE+ Switch
Model: B5G124-48P2
Switching Capacity: 96 Gbps
Forwarding Rate: 71.4 Mpps
Ports:
48 x 10/100/1000 PoE+ RJ45 ports
4 x Combo SFP ports
2 x Stacking ports
1 x DB9 Console Port
1 x RPS Connector
PoE Support: IEEE 802.3af/at, up to 30W per port
Total PoE Power Budget: 375W
Power Consumption: 125W max
Input Voltage: 100240 VAC
Input Frequency: 5060 Hz
Input Current: 7.5A max
Heat Dissipation: 427 BTU/hr
Acoustics: 44.5 dB
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% 95% (non-condensing)
Operating Altitude: Up to 10,000 ft
Dimensions: 44.1 cm (W) x 36.85 cm (D) x 4.4 cm (H)
Weight: 6.49 kg
Certifications: UL 60950-1, FCC Part 15 Class A, CE, VCCI, RoHS
Warranty: 3 Month Carry-in Warranty
What's in the Box: B5G124-48P2 Switch
