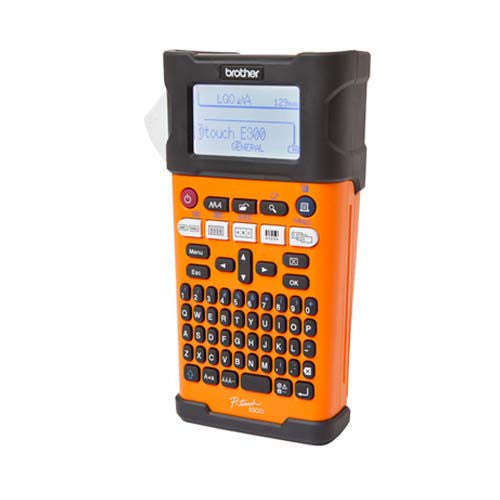

Brother P-TOUCH E300VP

Brother P-TOUCH E300VP. The P-touch E300VP is an indispensable tool for all electricians and datacom installers. It comes complete with a lithium-ion rechargeable battery and AC adapter, all housed in a durable carry case. The large backlit graphic LCD, standard QWERTY style keyboard and specialised functions have been developed to make common industrial labelling tasks quick and easy. Leave a professional impression by creating high quality labels for your installations.

Product Features

• Brother P-touch laminated TZE tapes consist of seven layers of materials, resulting in a thin, A extremely strong label. Characters are formed with a thermal transfer ink and sandwiched between two protective layers of PET (polyester film). The result is a virtually indestructible label that can withstand even the harshest conditions
• Prints on new heat shrink tube cartridges
• Prints 6, 9, 12 & 18mm labels
• Industry standard barcode compatible
• Large backlit graphic display
• Dedicated function keys to easily create labels

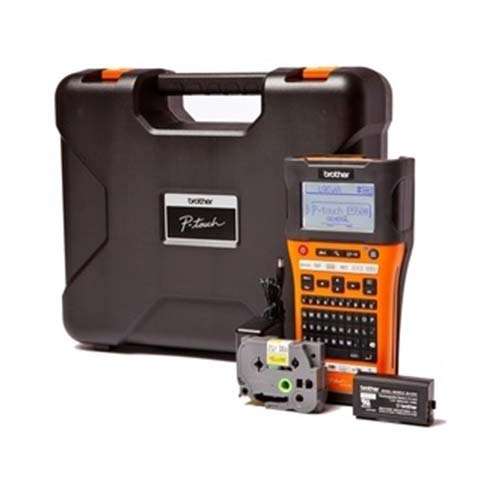

• Includes tape cassette, Li-ion Battery, AC adapter, wrist strap and carry case
• Over 300 electrical datacom symbols

Technical Specifications

• Housing dimensions: 133 (w) x 220 (h) x 69 (d)
• Tape size/type TZE tape: 6, 9, 12, 18mm
• Print resolution 180 dpi
• Max. print speed 20mm / sec
• Cutter type Manual: Cutter blade
• Keyboard type QWERTY with numeric keypad
• LCD display 15 characters x 3 line graphic
• LCD backlight Yes
• LCD size 67mm x 40mm
• Label memory 50 memory locations with up to 2,400  characters total
• Power Li-ion battery (supplied)
• AC adapter (supplied)
• 6 x AA alkaline
• Built-in fonts 7
• Built-in symbols 384
• Character sizes 7: (6, 9, 12, 18, 24, 36, 42 pt)
• Character widths 4: (x, x normal, x2)
• Font styles 9
• Frames 7
• Underline Yes
• Max. number of lines 5
• Horizontal alignment Automatic length labels: left aligned
• Pre-set label length: centre aligned
• Tape length setting Yes (25-300mm)
• Tape margin setting Narrow, half, full, chain print
• Specialist labelling Cable wrap, cable ag, faceplate, sequential
• numbering, patch panel, punch block
• Automatic numbering: Yes
• Mirror printing: No
• Vertical printing: Yes
• Barcode: Yes: 9 kinds
• Copy (repeat) printing: Yes (1-9)
• Print preview: Yes (graphic preview)
