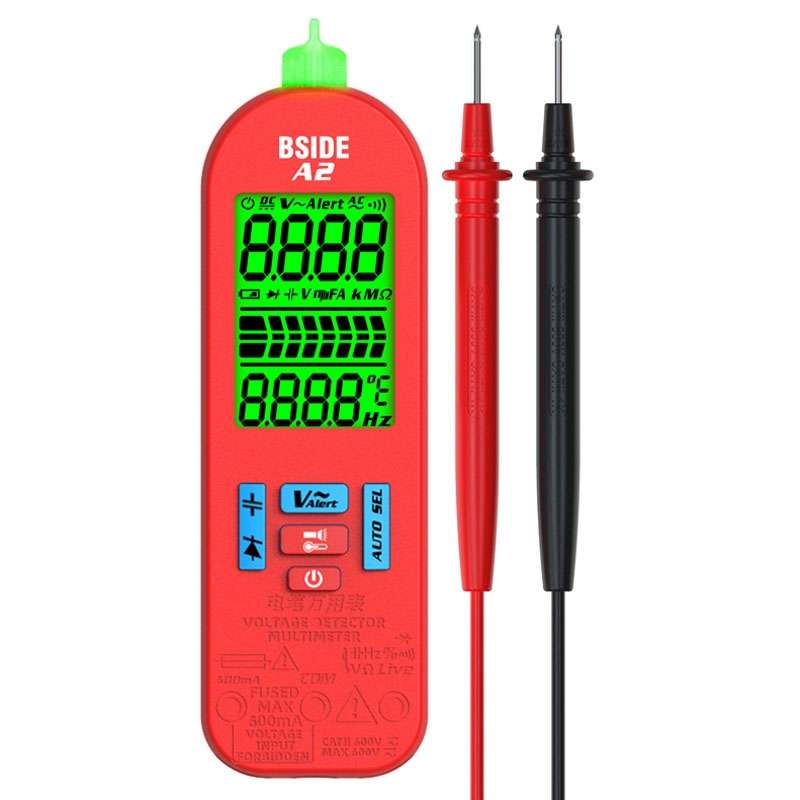

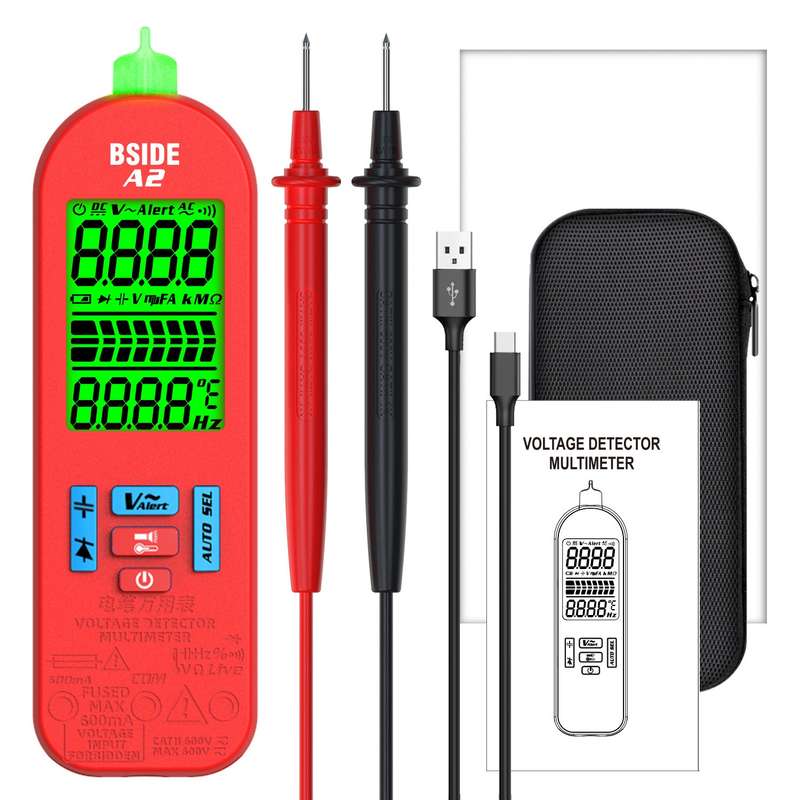

BSIDE A2 Charging Model Mini Digital Auto-Ranging Pencil Multimeter, Specification: With Tool Pack

1. Display range: 0-6000 counts
2. Operation mode: automatic/manual
3. Frequency: 0Hz-9999Hz
4. DC/AC voltage: 0-620V (DC/AC mode), 0.8-620V (auto mode)
5. Current range: DC current 1-610mA; AC current 1-610mA (40-1000Hz)
6. Capacitance range: 60.00mF
7. Resistance range: 0-60 megohm
8. Li-ion battery capacity: 400 mAh
9. Charging interface: USB-C
10. Auto shutdown time: about 15 minutes
11. Working altitude: less than 2000m
12. Multimeter weight: about 95 g
13. Size: about 14.6 x 4.4 x 2.5 cm

Functional features:
1. Portable pen-type appearance, small size, easy to carry
2. LCD color display, red and green back-light alarm, fresh font, easy to take and read data, easy to operate
3. Intelligent identification, power-on measurement, automatic identification of the measurement signal, no need to change gears, easy to use
4. Direct measurement of AC voltage and DC voltage, resistance, circuit connection and disconnection, fast and accurate measurement
5. Equipped with LED flashlight, easy to illuminate and use when measuring in dark environment
6. Support non-contact voltage detection alarm, less than 3V diode automatic identification, the use of safety
7. Type-C cable charging, long-lasting battery life, 15 minutes without operation after the automatic shutdown, worry-free use
8. Continuity: If the resistance is less than 50 ohms, the buzzer will sound
9. Multi-functions, can measure AC voltage and DC voltage, resistance, frequency, diode, with power zero line and fire line judgment, etc.
10. Wide range of applications, suitable for electrical testing, automotive maintenance, as well as more home improvement, industrial electrical maintenance, etc.
