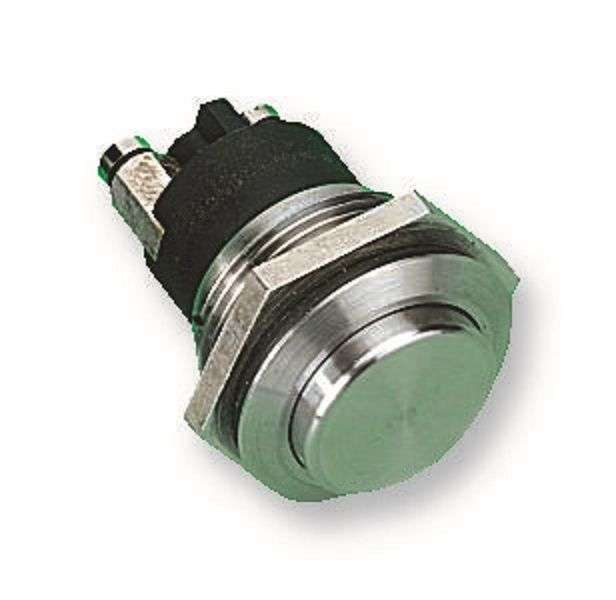

Bulgin Limited (MP0037/2) Vandal Resistant Switch, 19.2 mm, SPST-NO

Vandal Resistant Switch, 19.2 mm, SPST-NO, Momentary, Round Raised, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: -Panel Cutout Diameter: 19.2mmContact Voltage AC Nom: 50VContact Configuration: SPST-NOContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: Round RaisedContact Current Max: 1AActuator / Cap Colour: NaturalContact Current AC Max: 1AContact Voltage VAC: 50VContact Current DC Max: 1AContact Voltage VDC: 50VIP Rating: IP68Switch Mounting: Panel MountSwitch Terminals: ScrewIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe MP0037/2 is a single-pole single-throw (SPST) front panel-mount VandalResistant Switch with NO contact and OFF-(ON) function. The vandal resistantswitch is complemented by a range of 16mm stainless steel switches of robustconstruction designed for use in applications where space is at a premium. Ithas SP push to make slow momentary action, screw terminals, stainless steel bodyand prominent button.Glass filled nylon mouldingSilver-plated brass tags/terminationsSilver-plated brass, silver contactsSealed to IP68-20 to 70°C Operating temperature rangeApplicationsIndustrial
