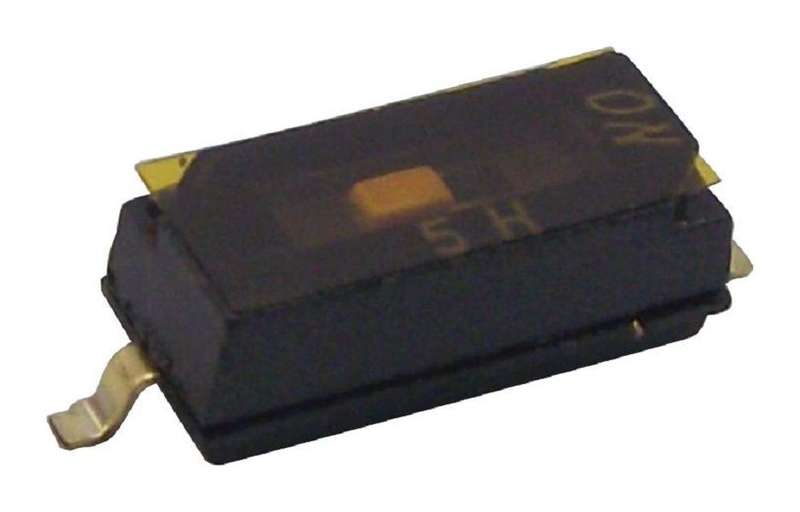

C&K Components (TDA01H0SB1R) DIP / SIP Switch, SPST, 24 V, 25 mA

DIP / SIP Switch, 1 Circuits, Slide, Surface Mount, SPST, 24 V, 25 mAProduct InformationNo. of Circuits: 1CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Surface MountProduct Range: -Switch Type: DIPContact Voltage DC Max: 24VContact Current DC Max: 25mAProduct OverviewThe TDA01H0SB1R is a 1-pole surface-mount DIP Switch features half-pitchultra-miniature and bifurcated contact for increased electrical reliability.Process sealed for surface mount soldering and washable processing. Suitable foruse with hand-held electronic devices, portable computer and electronic devicesand instrumentation controls applications.1000 Cycles mechanical and electrical life100mR Maximum contact resistance100MR Minimum insulation resistance at 100VDC300VAC Minimum dielectric strength4.9N Maximum operating forceUL94V-0 Flammability rated PPS case and coverUL94V-0 Flammability rated LCP actuatorCopper alloy with gold plate over nickel plate contactsCopper alloy with gold flash over nickel plate terminals-40 to 85°C Operating temperatureApplicationsIndustrial, Computers & Computer Peripherals, Sensing & Instrumentation
