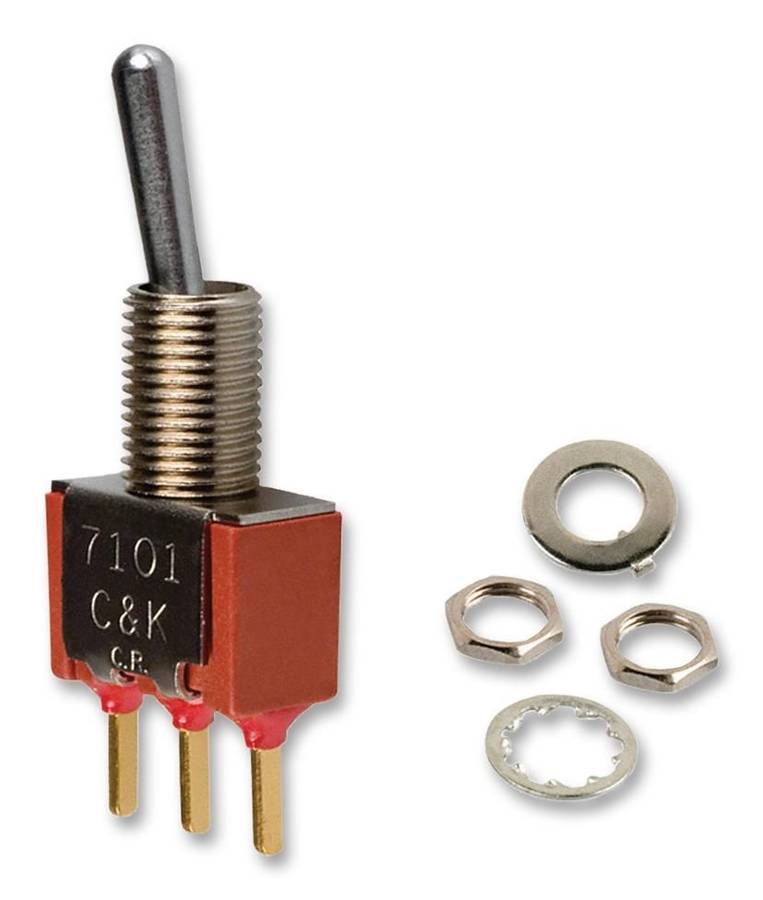

C&K Copmonents (7101SYCQE) Toggle Switch, On-None-On, SPDT, Non Illuminated

Toggle Switch, On-None-On, SPDT, Non Illuminated, 7000 Series, Through Hole, 5 AProduct InformationSwitch Operation: On-None-OnContact Configuration: SPDTIllumination: Non IlluminatedProduct Range: 7000 SeriesSwitch Mounting: Through HoleContact Current Max: 5AContact Voltage AC Nom: 120VSwitch Terminals: PC PinContact Voltage DC Nom: 28VProduct OverviewThe 7101SYCQE is a single-pole double-throw (SPDT) Miniature Toggle Switch withPC through-hole termination, 0.42-inch chrome plated brass actuator, 0.35-inchhigh keyway bushing and ON-NONE-ON function. The 7000 series switch has silverplated coin silver contact and stainless steel housing. Epoxy terminal seal iscompatible with bottom-wash cleaning.1000Vrms at sea level Minimum dielectric strength-30 to 65°C Operating temperature rangeSolderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hoursteam aging)ApplicationsCommunications & Networking, Sensing & Instrumentation, Medical
