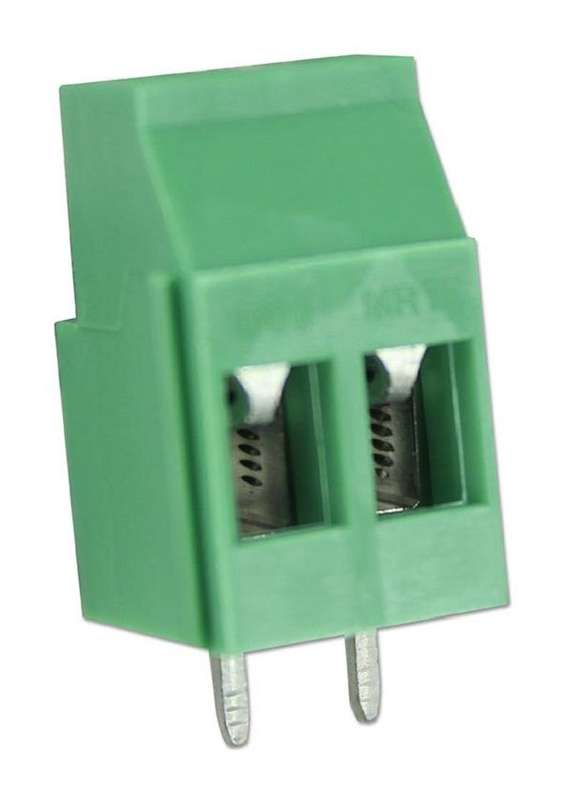

Camdenboss CTB0700/2) Standard Terminal Block, Wire to Board, CTB0700

Standard Terminal Block, Wire to Board, CTB0700, 2 Contacts, 5 mm, TerminalBlock, PCB, PCB MountProduct OverviewThe CTB0700 series PCB Terminal Block with 5mm pitch and high power risingclamp. It has 2 and 3-pole double interlocking mechanism for increased strengthand moulded in green flame retardant PA. It is a professional rising clampterminal with 0.2 to 4mm² (30 to 12AWG) solid cable and 0.2 to 2.5mm² (30 to12AWG) stranded cable.UL94V-0 Flammability4 to 12 Solid block end stackableGuided pin alignmentCaptive screwsApplicationsIndustrialProduct InformationProduct Range: CTB0700No. of Contacts: 2ContactsPitch Spacing: 5mmConnector Type: Terminal Block, PCBConnector Mounting: PCB MountWire Size AWG Max: -Wire Size AWG Min: -Contact Plating: Nickel Plated ContactsContact Material: Brass
