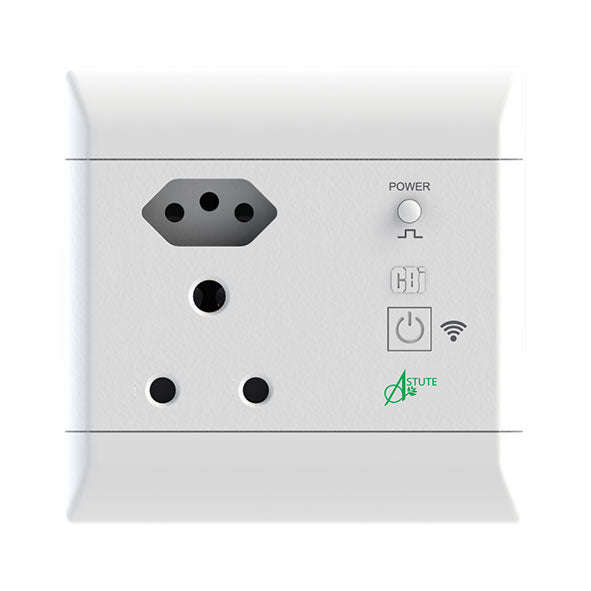

The Astute Smart Plug is an energy monitoring, scheduling and control switch with load management and automation capability. The CBI Home App enables the user to configure the ASP to react to current, voltage, time, power and many other variables or a combination thereof. The ASP can be used to remotely control appliances, lights, etc.
Colour: | White |
Finish: | Gloss |
Material: | Plastic |
Mounting Type: | Surface or Wall Mount |
Wi-Fi Frequency: | 2.4 GHz |
Socket Type: | RSA (164-1) and Slimline (164-2) |
Switch Type: | Isolator and Power Switches on the unit |
Number of Switches: | 2 x Switches |
Number of Sockets: | 2 x Sockets |
Contact Life: | 20000 Cycles |
Time Range: | Week / Day / Minute |
Current: | 16A |
Voltage: | 230VAC |
Frequency: | 50 Hz |
Phase: | Single Phase |
Rated Impulse Voltage: | 2.5kV |
Height: | 125mm |
Width: | 125mm |
Depth: | 26mm |
Size: | 4 x 4 |
Cable / Wire Size (sq.): | 6mm² |
Operating Temperature: | -20°C to +55°C |
IP Rating: | IP20 |
Technical Document: | Download |
Product Manual: | Download |
