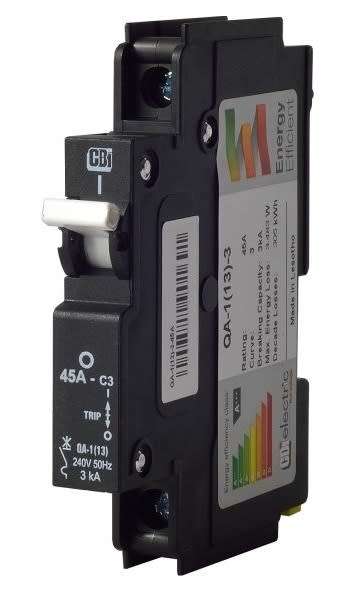

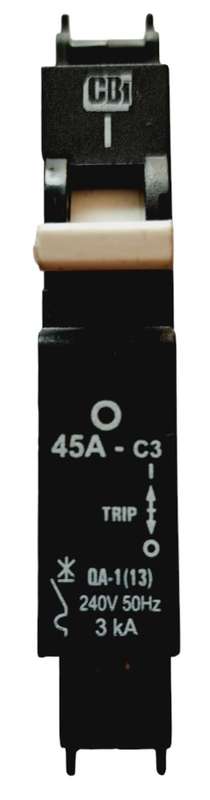

CBI Miniature Circuit Breaker 1 Pole 45A 3kA 240V QA-1(13)-45A QA18345

Features:

• AC Circuit Breaker.
• Hydraulic Magnetic Technology.
• 100% rating capability, independent of ambient temperature.
• VC 8036 compliant (SANS 556-1).
• VDE approved; CE certified.
• Ratings 5 to 60 A (subject to certification)
• Precision tripping characteristics.
• Ultra compact - 13 mm wide module.
• Trip indication with mid-trip position.
• Can be switched on immediately after tripping.
• Mini Rail Mount product in black shells.
• Suitable to use for electrical isolation.
• Shell designed for easier installation onto busbar.

Applications:

• AC branch circuit protection (SANS 60947 - 2)
• Telecom / Datacom equipment.
• Lighting control.
• UPS equipment.
• Alternative energy equipment.
• Mobile power generation equipment.
• Railway signaling equipment.
• Residential equipment.
• Industrial equipment.

Safety Features:

Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation.

Technical Specifications:

• Colour: Black.
• Material: Plastic.
• Handle Colour: White.
• Mounting Type: Mini Rail.
• Number of Modules: 1.
• Poles: 1.
• Curve: 3.
• Escutcheon: 57mm.

• kA Rating: 3kA.
• Height:  92.8mm.
• Width:  13mm.
• Weight: 102g.
