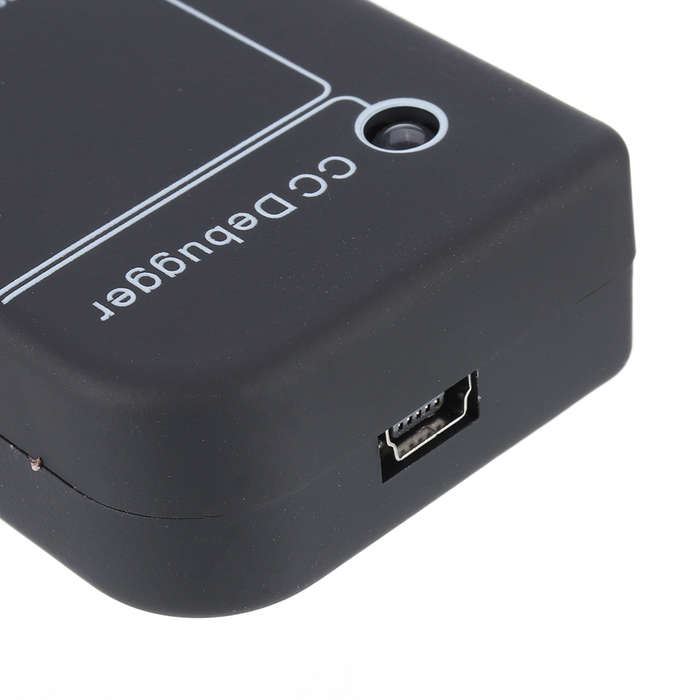

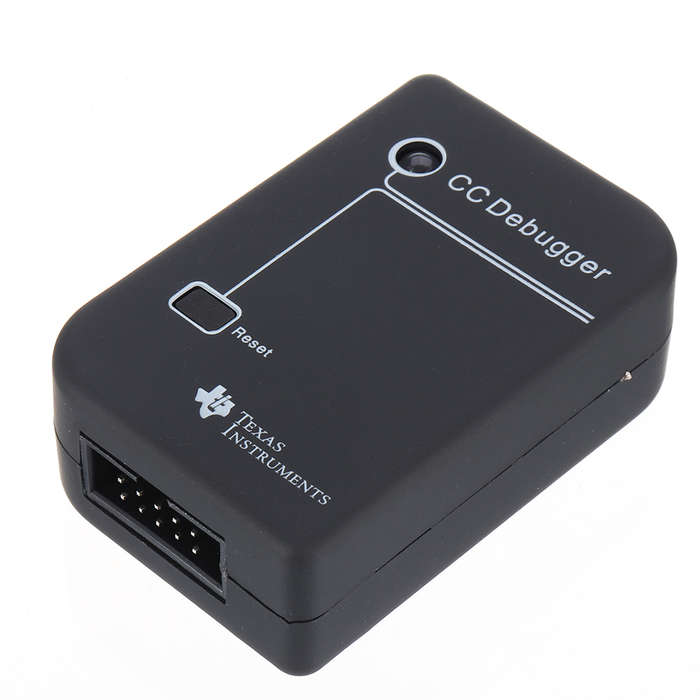

CC Debugger Emulator for CC2531 CC2540 Sniffer Dongle Capture USB Programmer Downloader with Cable

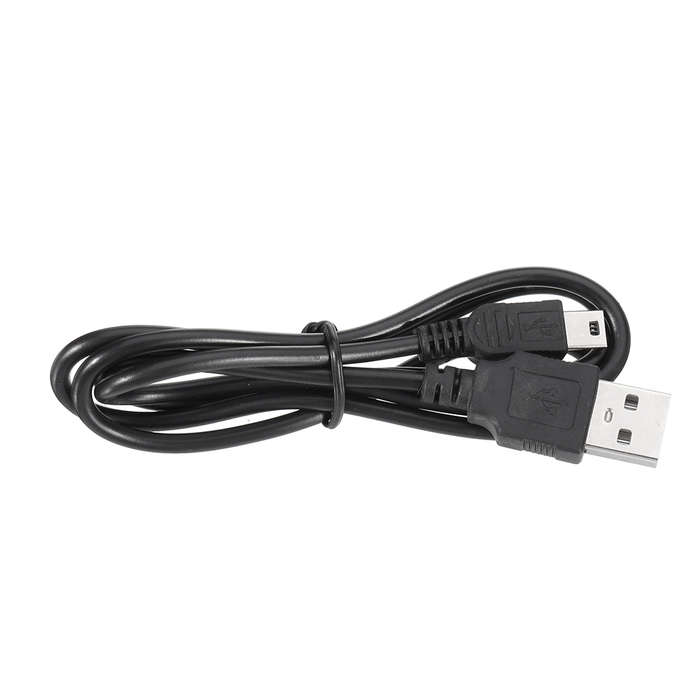

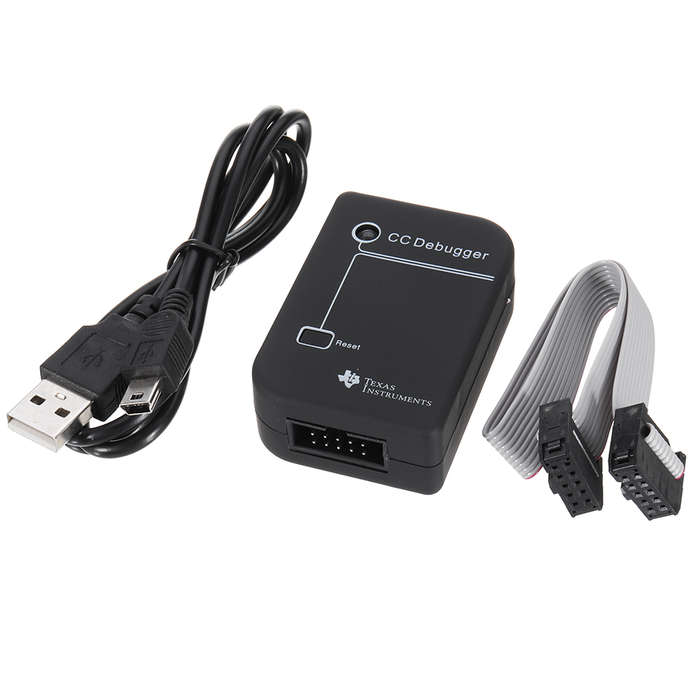

Usage: 1. Connect to computer through emulator. 2. Downloader Cable connects to the 10 Pin needle on Dongle. 3. Supply power for Dongle through USB interface. The CC Debugger is a small programmer and debugger for the TI Low Power RF System-on-Chips. It can be used together with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging and SmartRF Flash Programmer for flash programming. The CC Debugger can also be used for controlling selected devices from SmartRF Studio. Features: - CC-Debugger can be used to program and debug the following 8051-based system-on-chips from Texas Instruments: CC1110, CC1111 CC2430, CC2431 CC2510, CC2511 CC2530, CC2531, CC2533 CC2540, CC2541 CC2543, CC2544, CC2545 - It is possible to control the same devices from SmartRF Studio. In addition, CC-Debugger can control the following transceivers from SmartRF Studio: CC1120, CC1121, CC1125, CC1175 CC1100, CC1101, CC110L, CC113L, CC115L CC2500, CC2520 - It can also be used to program the PurePath Wireless devices: CC8520, CC8521 CC8530, CC8531 - The CC Debugger works with IAR EW8051 version 7.51A or later. Package Included: 1 x CC Debugger Programmer Downloader 1 x USB Cable 1 X Downloader Cable
