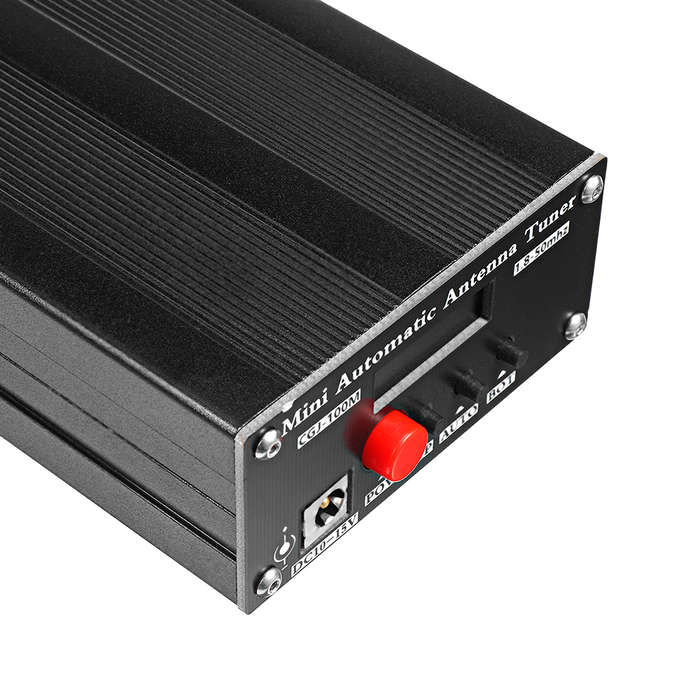

CGJ100M 1.8-50mhz Portable Automatic Antenna Tuner 1-40W USB Rechargeable with 0.91inch OLED Display

New 20 available
R1,758.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654095043
Description:

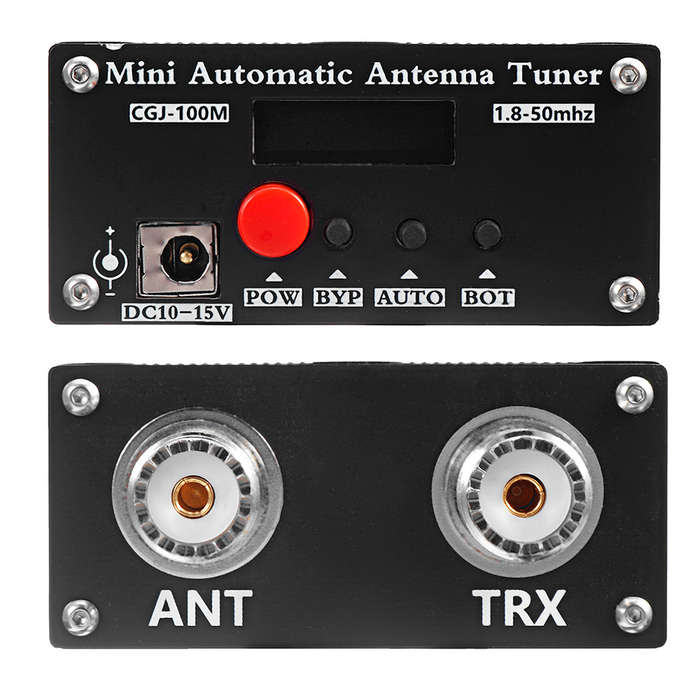

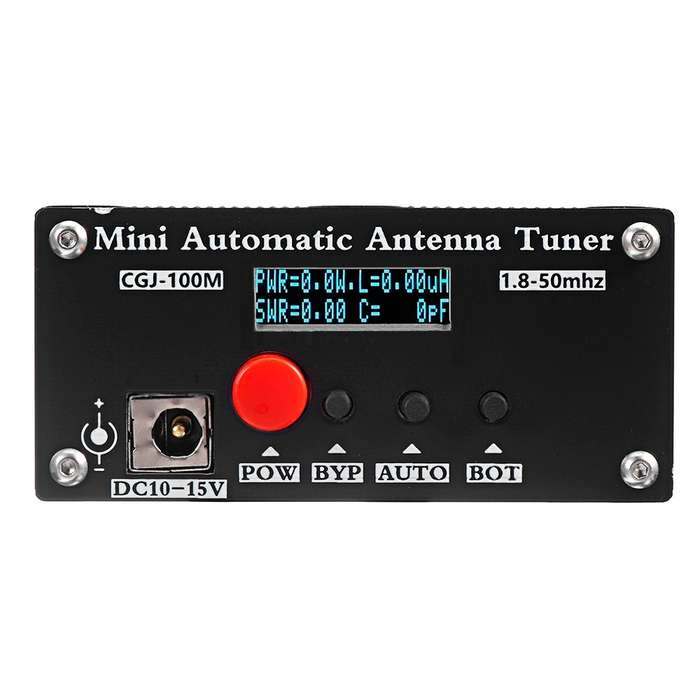

The device contains a set of 7 capacitors and 7 inductors, which enables it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-50mhz. Power supply :DC 10-15V Maximum current consumption: 400ma Maximum working throughput: 40W Maximum possible measurement power: 50W Minimum power required to start tuning: 1W The smallest possible measurement power: 0.1W Steps for measuring power up to 10W: 0.1W Measurement procedure for power higher than 10W: 1W Power measurement accuracy: 10% Maximum installation inductance: 8.53uH Minimum installation inductance step length: 0.05uH Maximum installation capacitance: 1869pF Minimum installation capacitance step length: 10pF The number of panel buttons is 4: power supply POW, BYP pass-through, AUTO automatic, BOT function Display: 0.91inch OLED
Package Included:
1 xAutomatic Antenna Tuner

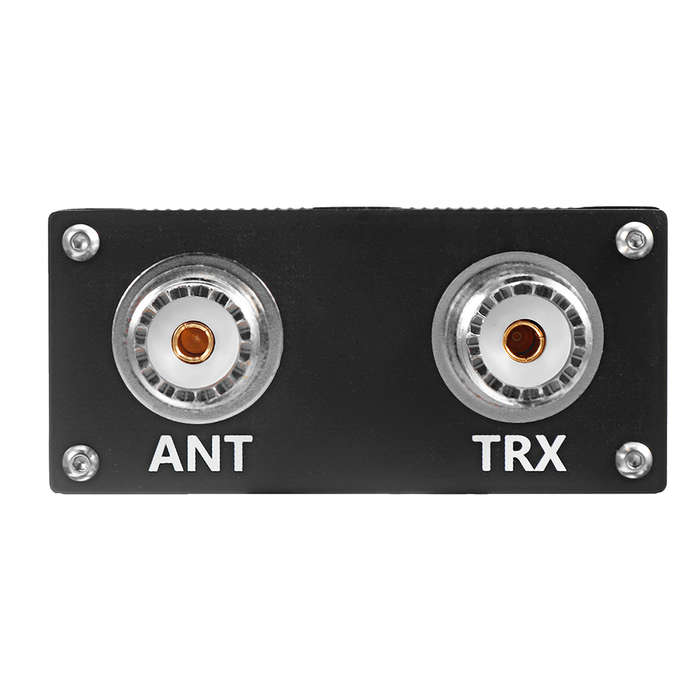

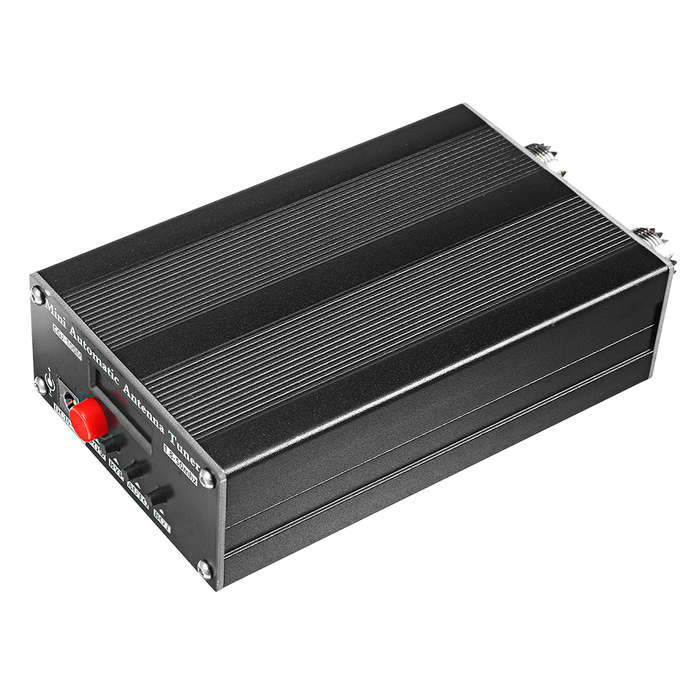

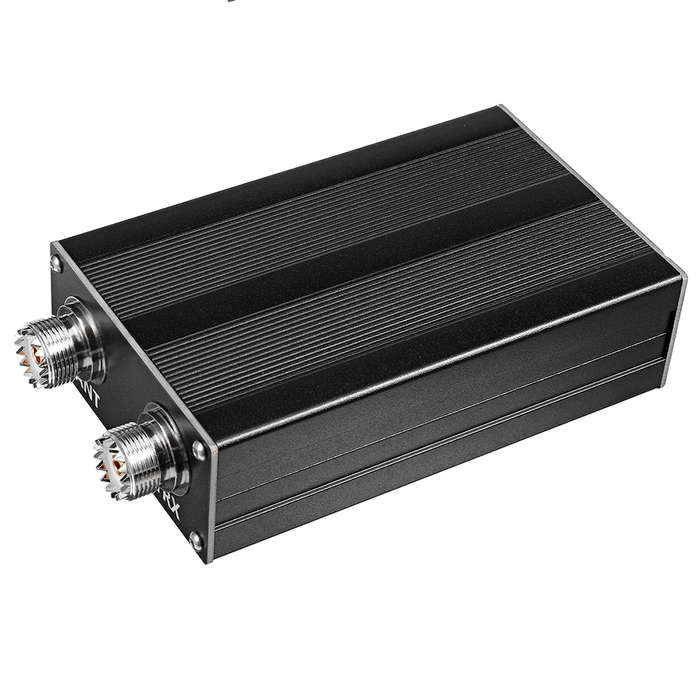

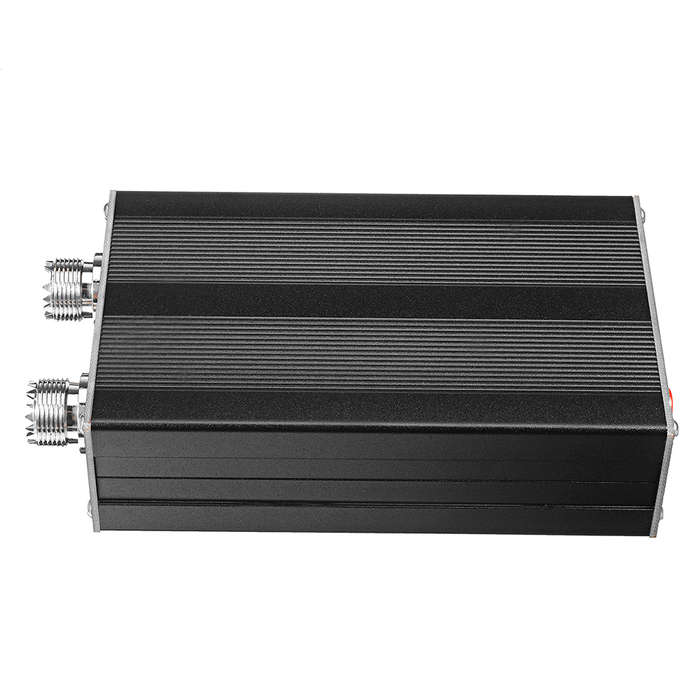

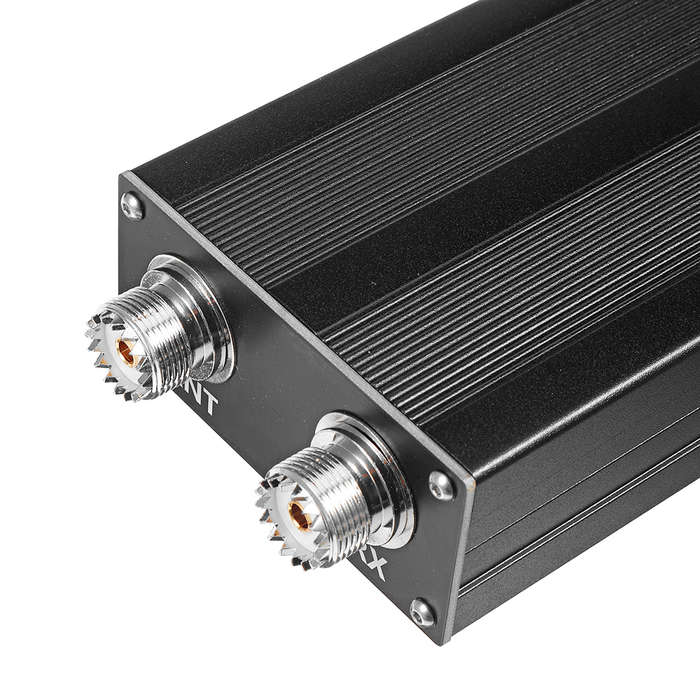

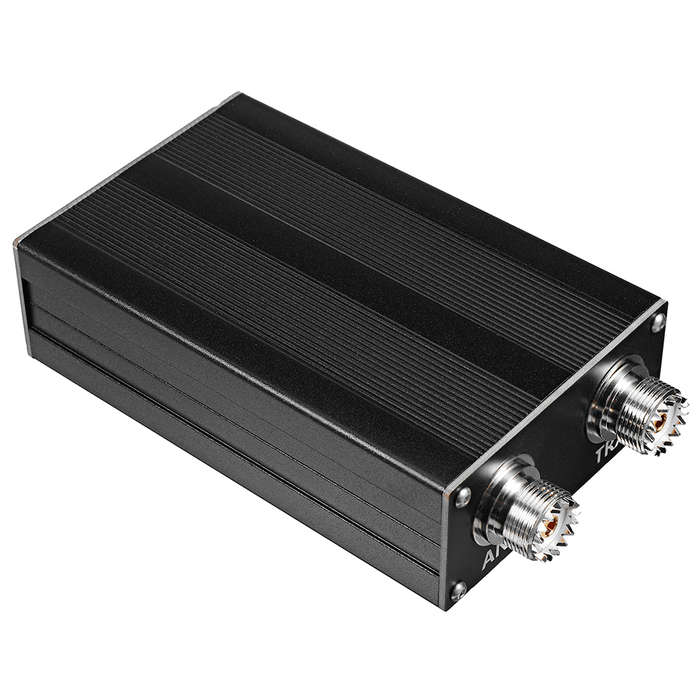

Details Picture:
