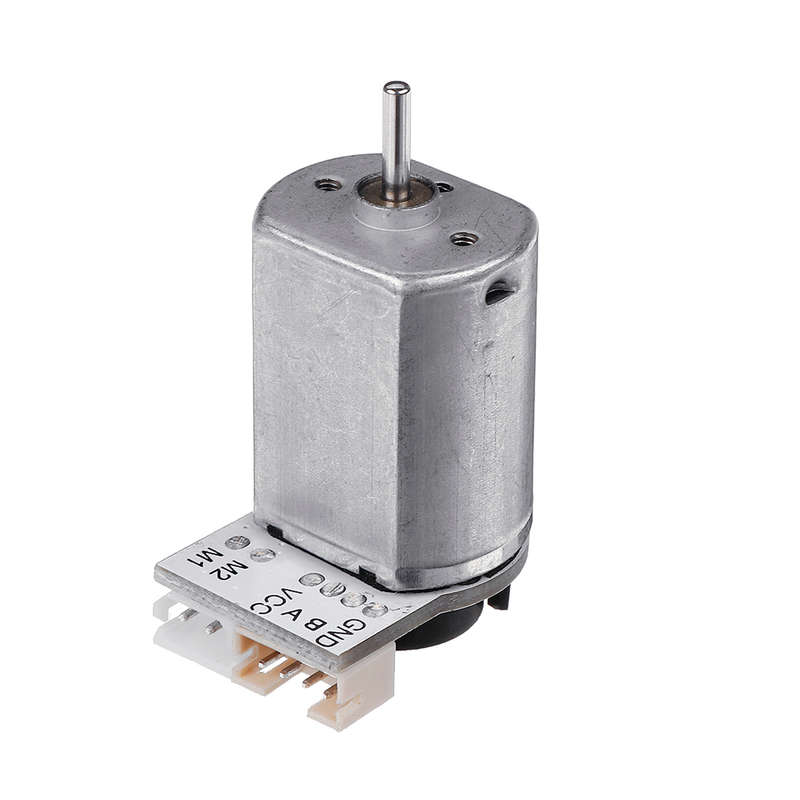

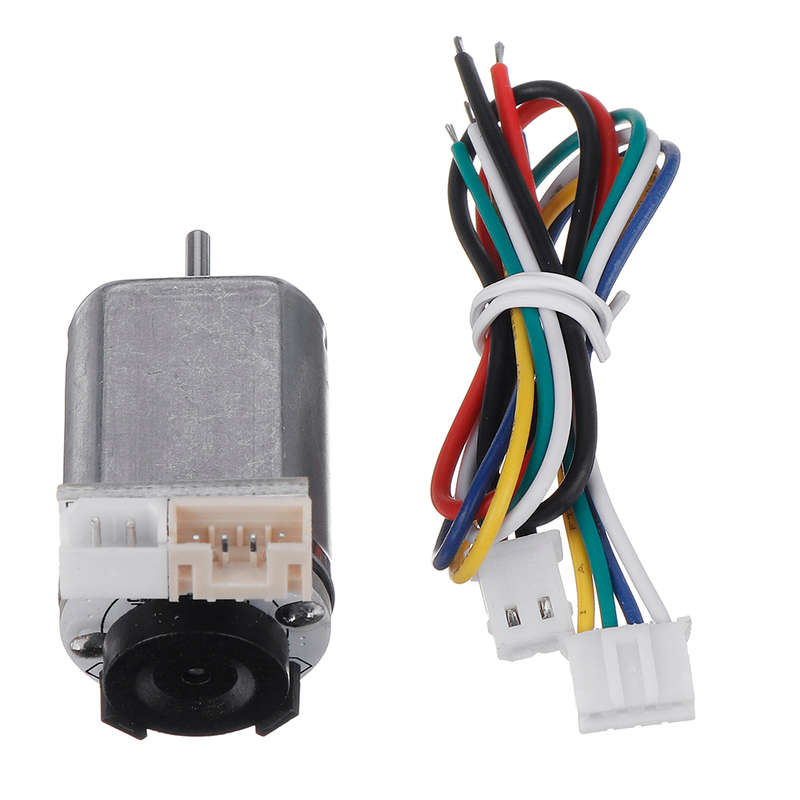

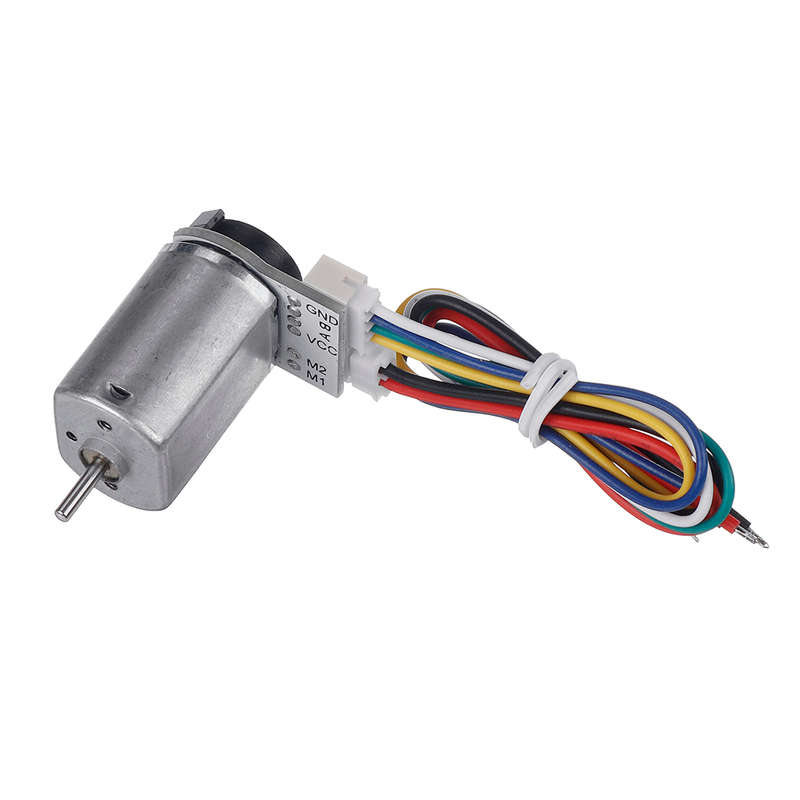

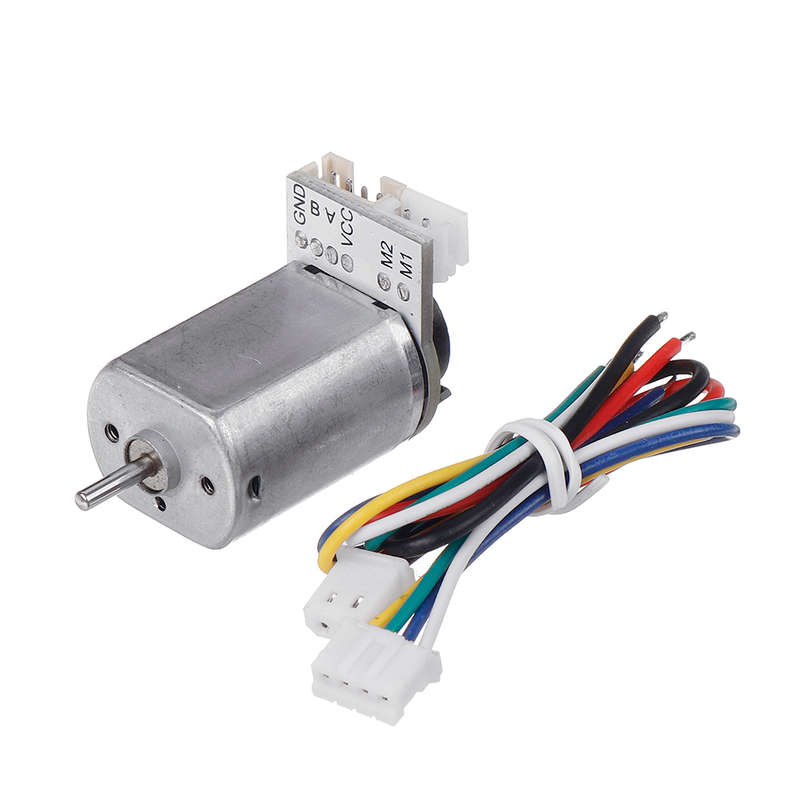

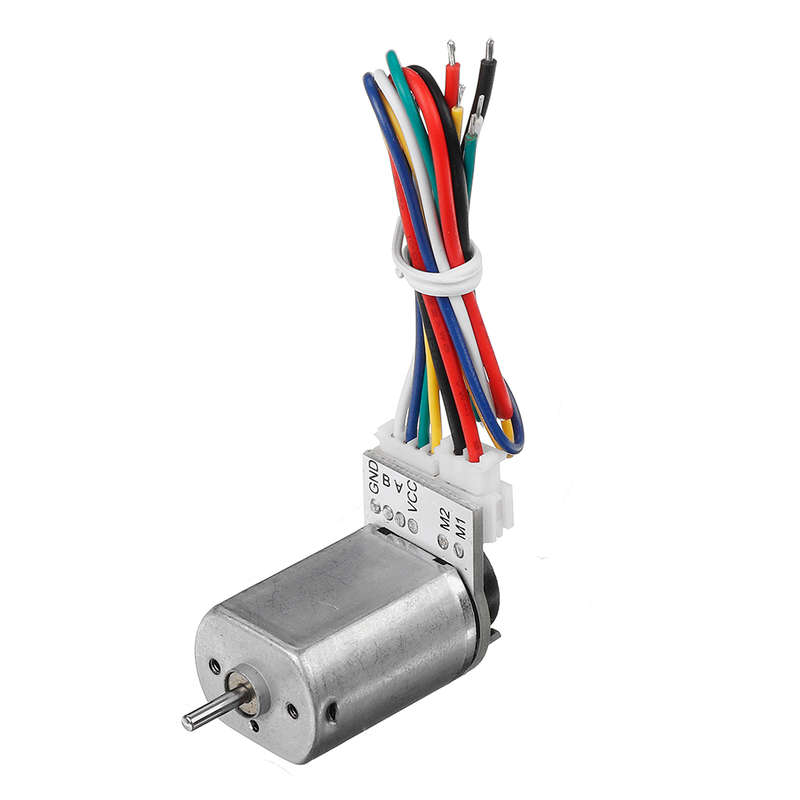

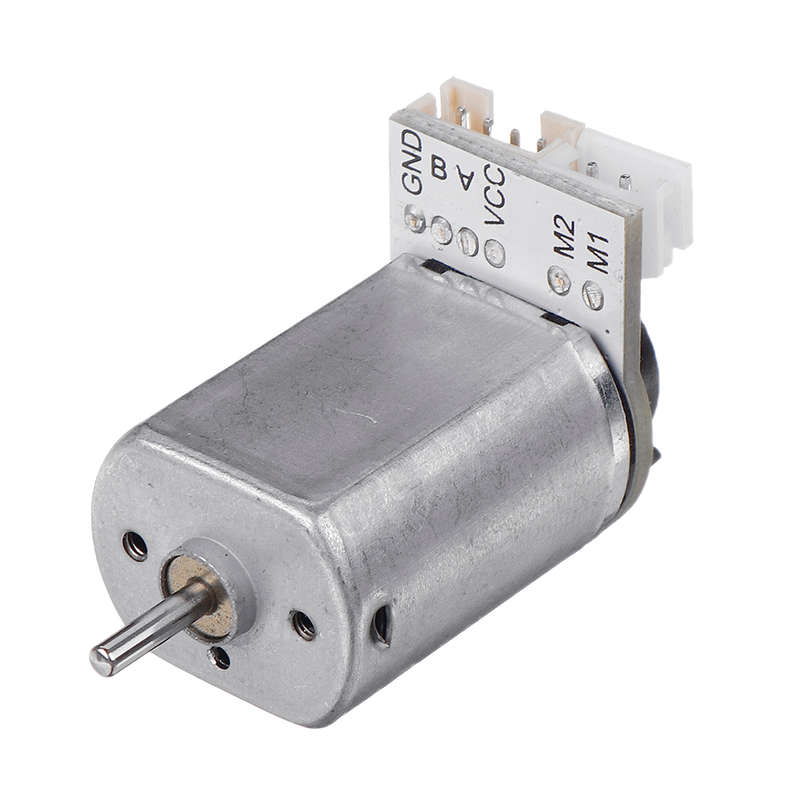

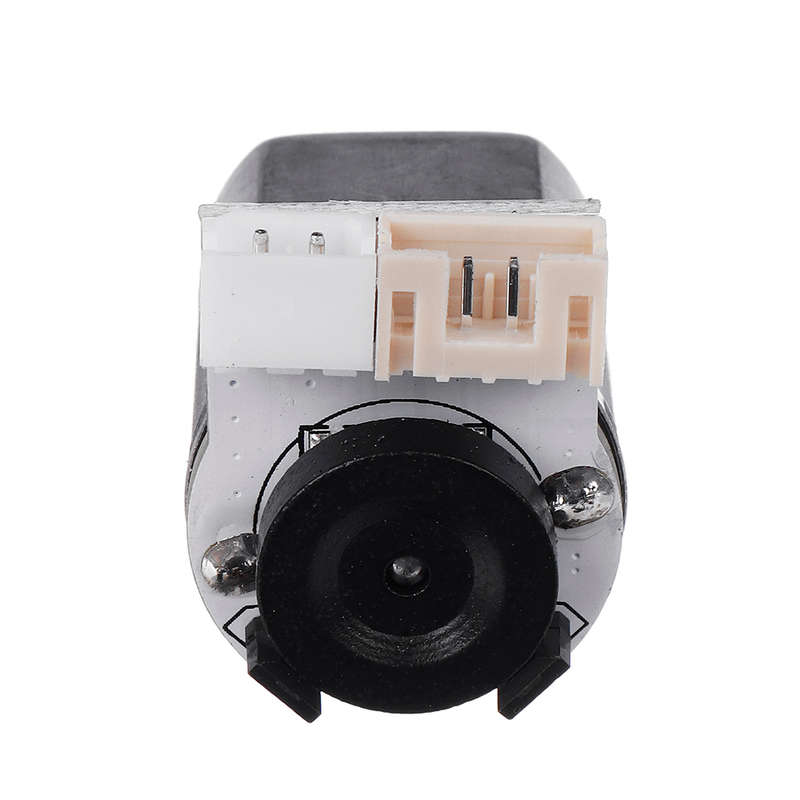

CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo

20 available / new

R440.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641120012

Description:

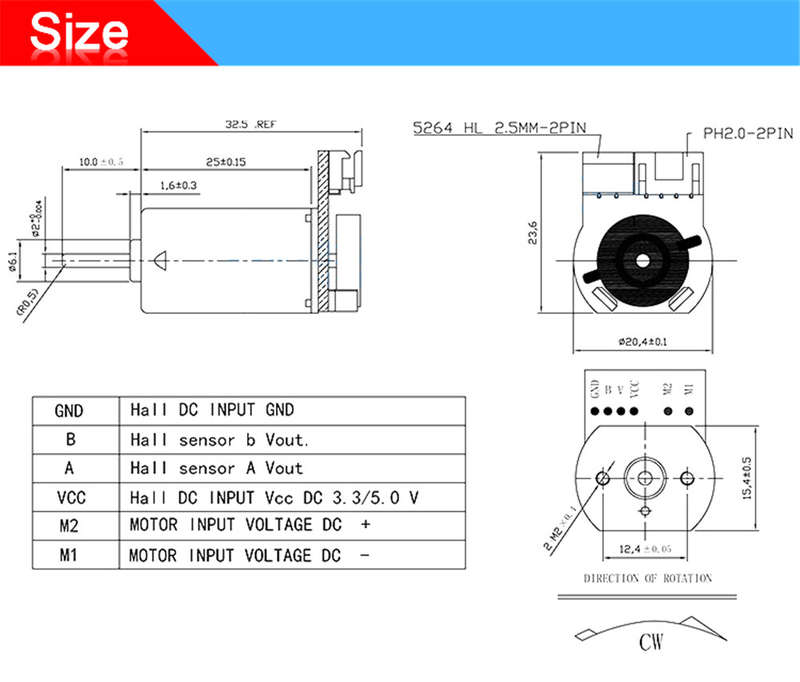

CHIHAI CHF-130SA-ABHL 6V Permanent Magnet DC Hall Coded Reduction Gear Motor Specification:

Brand	Chihai motor
Model	CHF-130SA-ABHL (Permanent magnet dc hall coded reduction motor)
Shaft diameter	a2mm
Shaft Length	10mm
Weight	About 28g
Applications	Automation of bathroom appliances,robot education, Applications TT motor coding input,smart toys,smart instrument,etc

Voltage	DC6.0V
No-load Speed	9500&pm;10% rpm
No-load Current	a150mA
Rated load	20 g.cm
Rated speed	6200&pm;10%rpm
Rated Current	0.55 A MAX
Rated Power	1.3W
STALL Torque	a45 g.cm
STALL Current	1.2A

Feature:

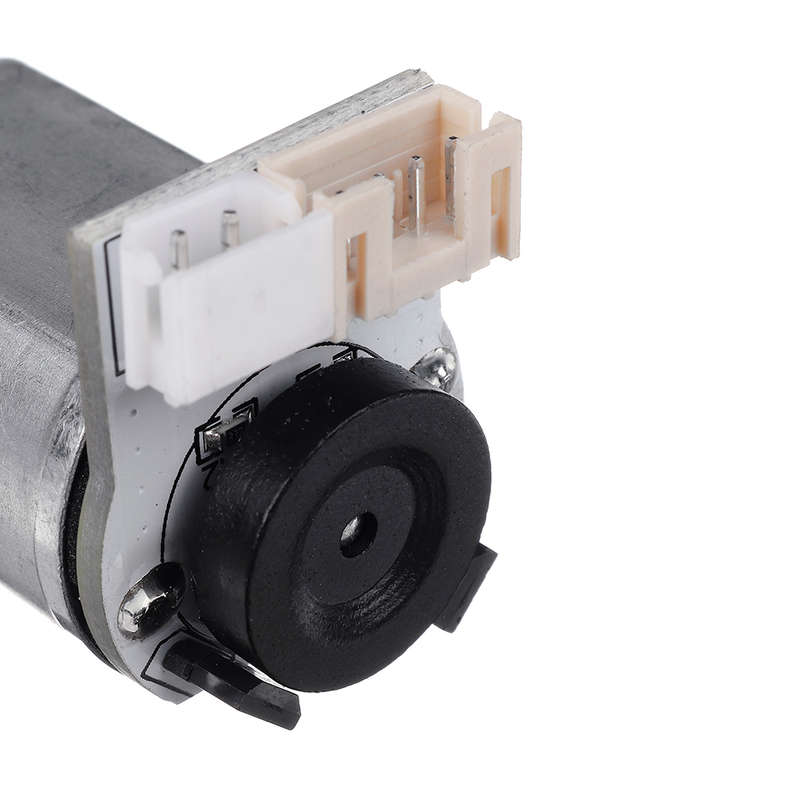

- N-S 14 pole magnet. - AB phase dual hall encoding board withbuilt-in pull-up resistence. - Metal gear reduction mechanism: high strength, stable transmission, high efficiency and high torque. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. Package Included: 1 x Reduction Gear Motor
