Description:

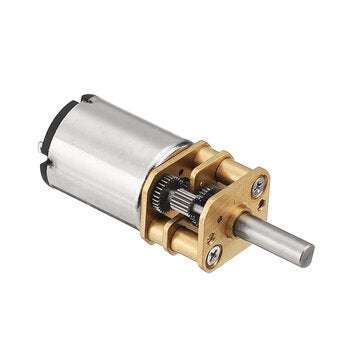

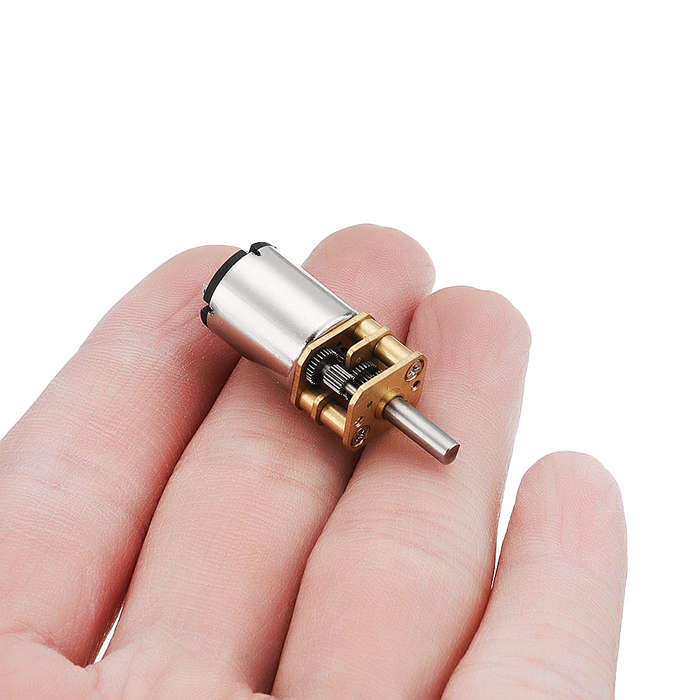

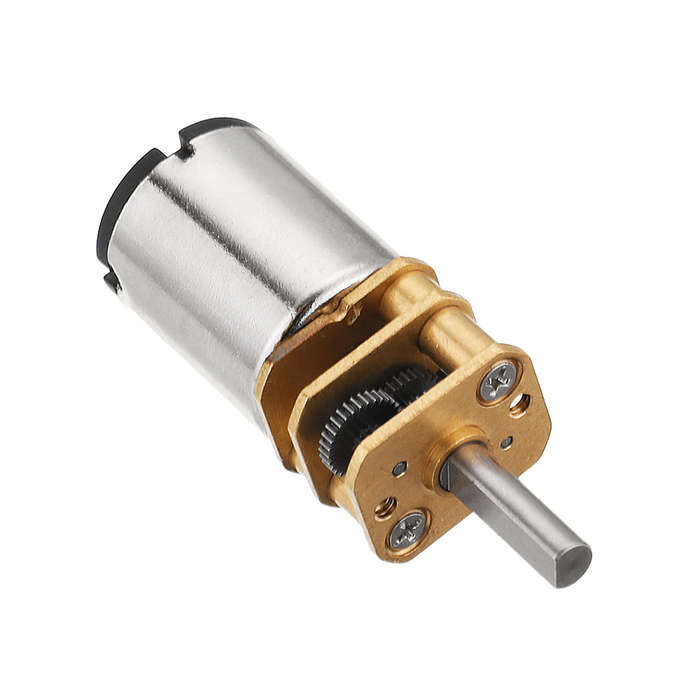

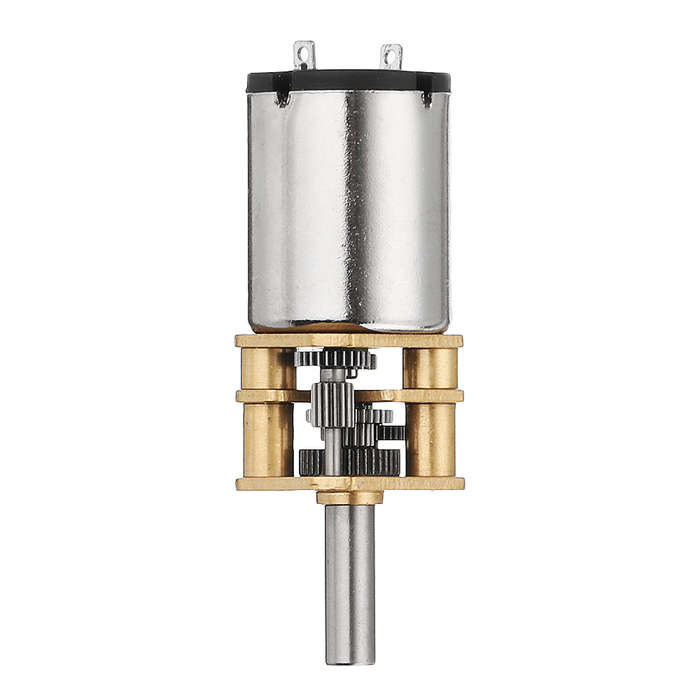

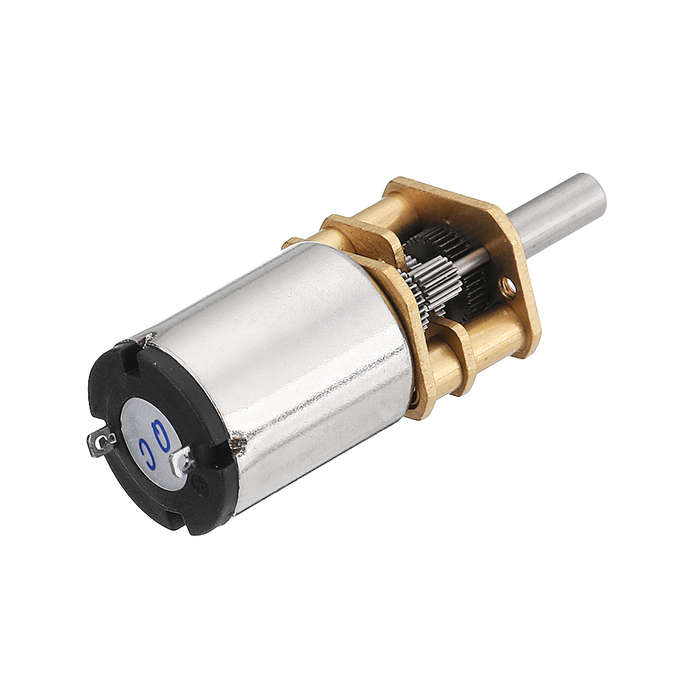

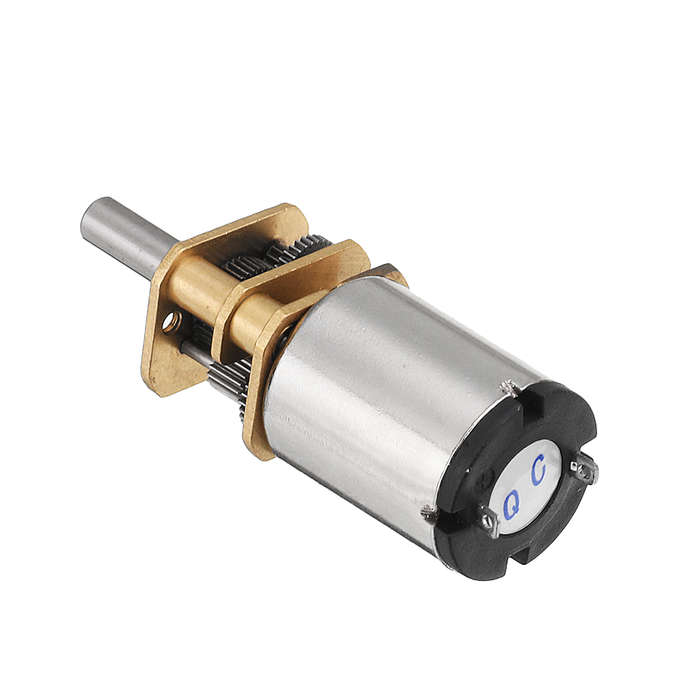

ChiHai CHF-GM12-1215R DC motor, 12V 1:20 1050rpm mute torsion large hollow cup reduction gear motor.

Specification:

Brand	ChiHai
Model	CHF-GM12-1215Rpermanent magnetdc motor with brush speed reducer

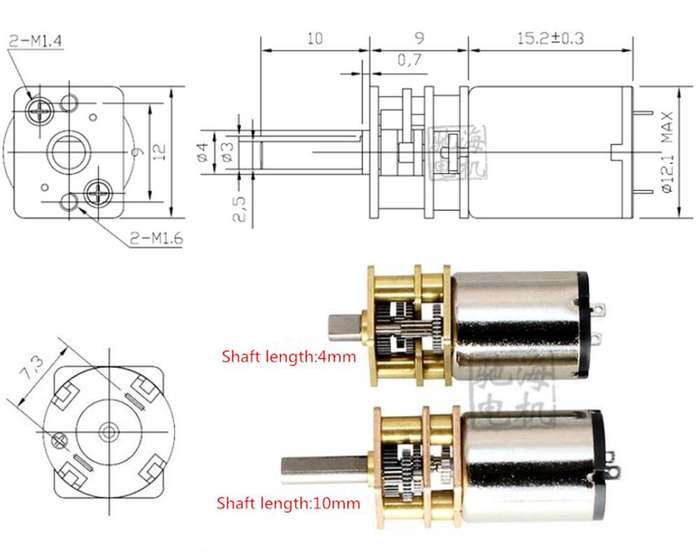

Shaft diameter	Output shaft diameter: 3mm, D type D thickness 2.5mm
Outside diameter	Diameter: 12 x 24.2mm (excluding the size of outgoing shaft)
Shaft length	Length: 10mm / 4.4mm, etc.
Application cases	Intelligent fingerprint door lock, intelligent robot, intelligent manipulator, intelligent furniture, intelligent focusing system, miniature head, etc.
Optional accessories	Flange coupling, positive and negative drive, etc.

Parameter:

Warning:can'texceed3.0kq.cm(0.3N.M).Otherwise,itwillcausegeardamage.
Voltage	RATIO	No-load		Rated-Load			STALL
		current (mA)	speed (rpm)	Torque (kg.cm)	speed (rpm)	current (mA)	Torque (kg.cm)	current(mA) (mA)

DC12.0V Max .Power1.3W	1:20	a40	1050	0.2	600	a0.3	a0.4	a0.75

Features:
1. Pure copper winding wire The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque. 2. All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. 3. D axis font D-shaped shaft, more convenient to install, not easy to slide, save installation time 4. Rare earth magnetic hollow cup motor inlet High efficiency, low noise, good sensitivity, long service life, energy saving, fast response, etc. 5. Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. It is suggested that the reducer should be used in 2.0kg.cm rated load as much as possible, and there is a risk of damage if the reducer exceeds 2.0kg.cm.
Package Included:
1 X CHF-GM12-1215R DC motor

More Details:
