The Cisco® Industrial Ethernet (IE) 4000 Series delivers Gigabit connectivity to Cisco ruggedized switching portfolio with superior high-bandwidth switching capacity and proven Cisco IOS® Software. The IE 4000 Series provides highly secure access and industry-leading convergence ring protocols to support resilient and scalable networks while adhering to industry compliance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3200, IE 3300 and IE 3400.
The IE 4000 Series can be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways, etc., using powerful enterprise-grade intent-based network management platform such as Cisco DNA Center.
The Cisco IE 4000 can easily be installed with a GUI based Device Manager and it also offers out-of-the-box industrial usage configuration and simplified manageability to deliver advanced security, data, video, and voice services over industrial networks.
Condition
A Grade Device - Item still new, in original packaging, seal opened to confirm contents.

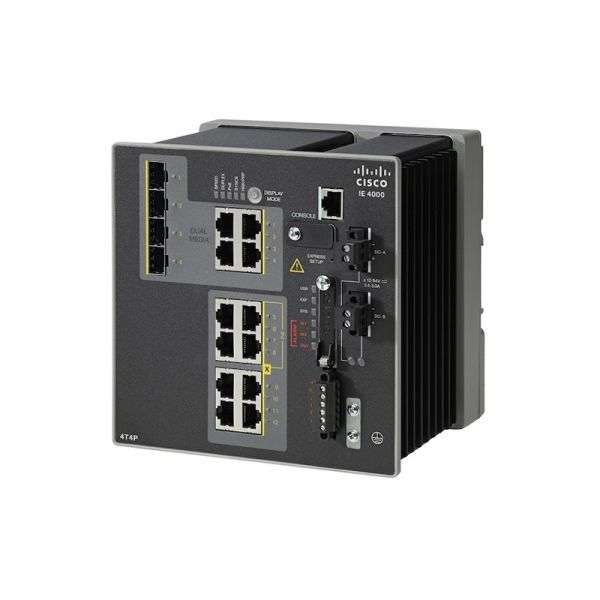

IE-4000-4T4P4G-E Specification |
Physical Specification |
Total Ports | 12 |
GE combo uplinks (4G) | 4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.) |
RJ-45 copper ports (T) | 4 FE |
PoE/PoE+ ports (P, GP), Maximum PoE power budget | 4 FE, 125W |
Default software | LAN Base feature set (Can be upgraded to IP Services at a fee.) |
Hardware | 1GB DRAM 128-MB onboard flash memory 1-GB removable SD flash memory card Mini-USB connector RJ-45 connector |
Alarm | Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay |
Power Input | Redundant DC input voltage with operating range: nominal 9.6 to 60VDC Maximum DC input current: 3.7A |
Power consumption | 35W |
Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
Weight | 6.35 pounds (2.88 kg) |
Switch performance and scalability |
Forwarding rate | Line rate for all ports and all packet sizes |
Number of queues | 4 egress |
Unicast MAC addresses | 16,000 |
IGMP multicast groups | 1,000 |
Number of VLANs | 1,000 |
IPv4 MAC security ACEs | 1,000 with default TCAM Template |
NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
Warranty
6 Month Carry-In Warranty
