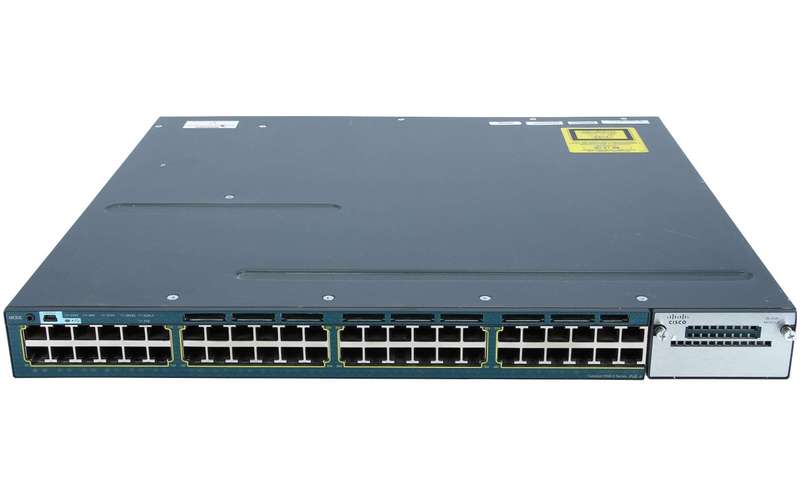

Built to support enterprise-class network scalability and reliable power delivery, the Cisco WS-C3560X-48PF-L is a 48-port managed Layer 2 switch with 10/100/1000 Mbps PoE+ support and a generous 800W PoE budget. Ideal for businesses running a large number of IP phones, access points, or cameras, this unit delivers high performance with a 160 Gbps switching capacity and 65.5 Mpps forwarding rate.
Operating on the Cisco LAN Base IOS, the switch includes enterprise-grade Quality of Service (QoS), VLAN management, and secure SVI configurations for segmented networks. It offers simplified deployment, centralized control, and energy efficiency, making it an excellent core or distribution layer switch in growing networks.
Key Features & Benefits
48 x Gigabit Ethernet PoE+ ports Connect and power IP phones, access points, and PoE cameras without separate power adapters.
800W available PoE budget Sufficient for fully powering all ports simultaneously with PoE+ compliant devices.
160 Gbps switching capacity & 65.5 Mpps forwarding Supports high-throughput environments like video surveillance networks and VoIP deployments.
Advanced Layer 2 management VLANs, QoS, and secure port-level control make it ideal for enterprise and campus networks.
LAN Base OS Supports scalable deployment with reliability and centralized network control.
Redundant power support Add a second PSU for failover protection in uptime-critical deployments.
Rackmount design Standard 1U form factor for seamless integration into 19" racks or cabinets.
Ideal Uses
Powering large-scale VoIP systems in corporate offices or call centers with PoE+ support across all ports.
Serving as a core or distribution switch in school campuses or large retail environments where multiple access points are deployed.
Connecting high-definition security cameras and powering them directly from the switch without external power injectors.
Managing VLANs and ensuring efficient data flow for cloud-based business services in SME and enterprise networks.
Specifications
Condition:
Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Manufacturer & Model:
Cisco WS-C3560X-48PF-L
Form Factor:
1U Rackmount Switch
Ports:
48 x 10/100/1000 Mbps Ethernet Ports with PoE+
Total PoE Budget: 800W
Switching Capacity:
160 Gbps
Forwarding Rate:
65.5 Mpps
Layer:
Layer 2
Memory & Storage:
Flash Memory: 64MB
DRAM: 256MB
VLAN Support:
Supports up to 1005 VLANs
16,000 MAC address entries
SVI (Switched Virtual Interfaces) enabled
Software & Management:
Cisco LAN Base Operating System
Fully Managed with CLI, SNMP, RMON
QoS: Quality of Service features included
Power & Efficiency:
Maximum Power Consumption: 1100W
Redundant Power Supply Supported (Optional)
Environmental Tolerance:
Operating Temperature: 0 to 40°C (32 to 104°F)
Humidity: 10% to 90%, non-condensing
Dimensions:
44.5 x 38.6 x 4.5 cm
(17.5 x 15.2 x 1.8 inches)
Warranty:
3 Month Carry-In Warranty
What's in the Box:
Cisco WS-C3560X-48PF-L Switch, Power Cable
