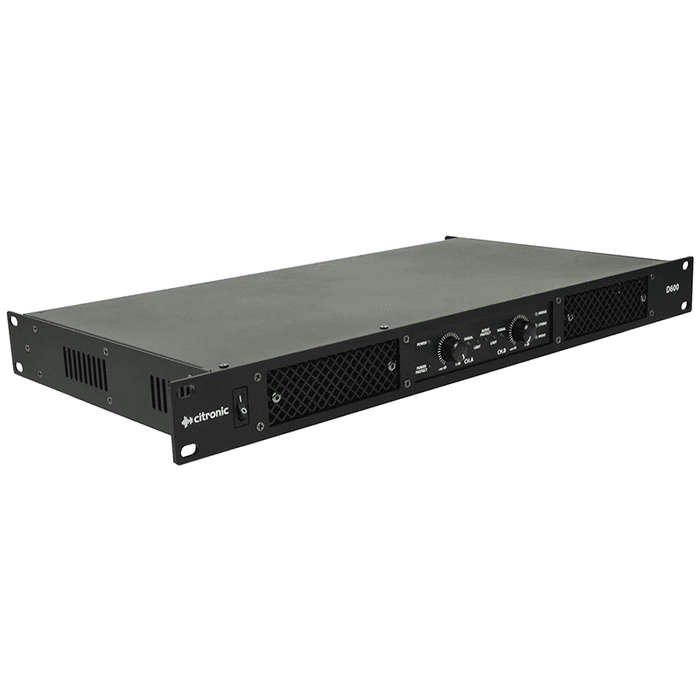

CITRONIC D600 1U POWER AMPLIFIER 2X 300W

Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.

Weight: 3.77kg

Bridge power @ 8 Ohms: 1 x 600W

Power rms @ 8 Ohms: 2 x 150W

Power rms @ 4 Ohms: 2 x 300W

Fuse: T10A (20 x 5mm)

Power supply: 220-240Vac, 50/60Hz (IEC)

Modes: Stereo, Parallel (mono), Bridge (mono)

Input sensitivity: 0.775V - 1.0V - 1.44V switchable

Low-cut filter: 75Hz switchable

Input connections: L+R XLR female (L+R XLR male through)

Output connections: L+R SPK connectors (+1 for bridge mode)

Dimensions: 482 x 245 x 44mm
