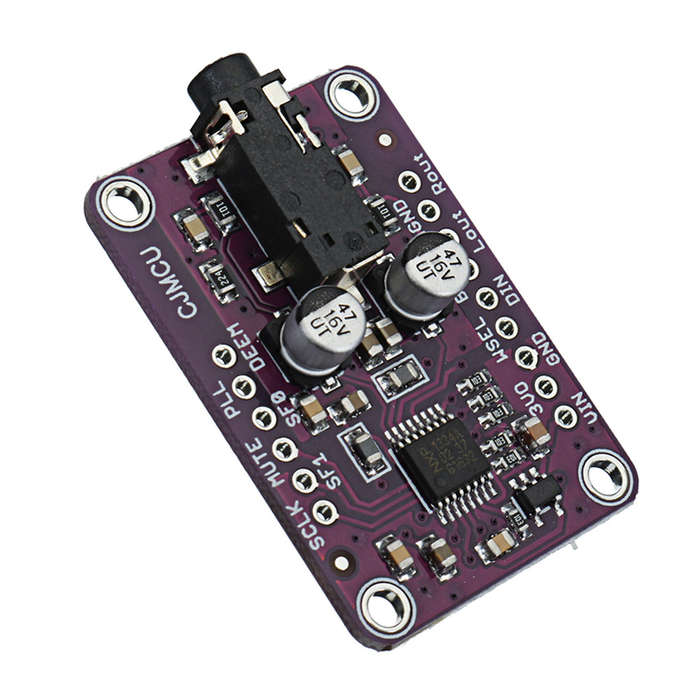

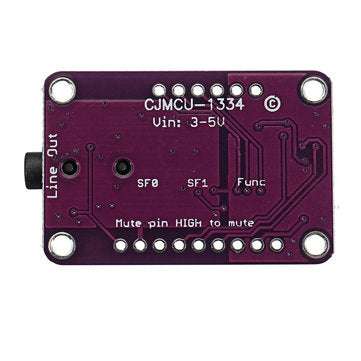

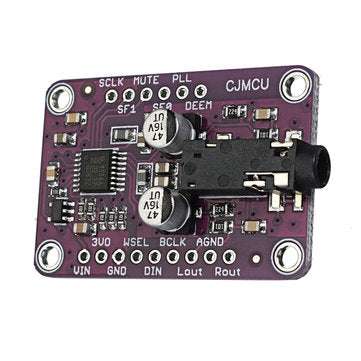

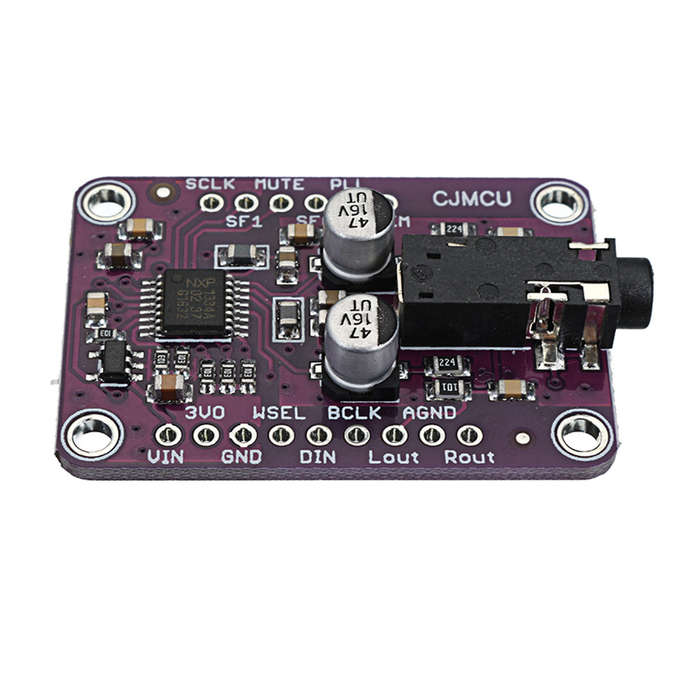

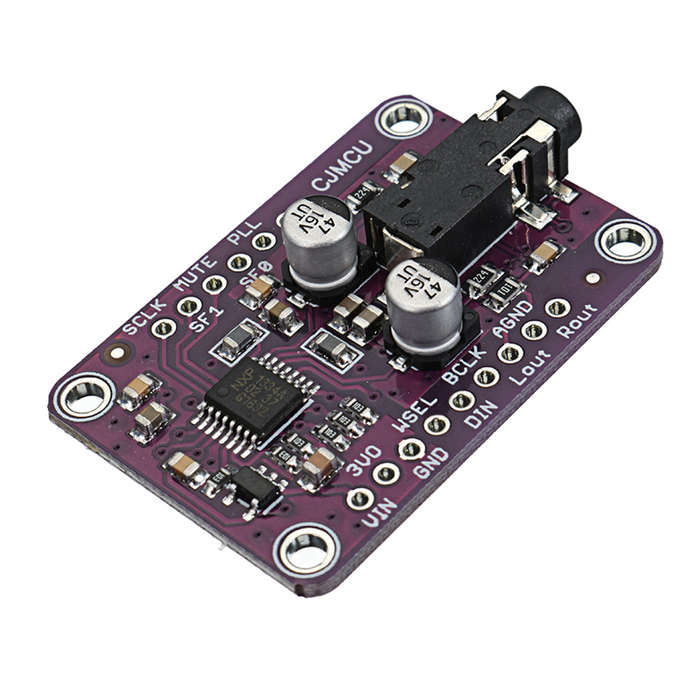

CJMCU-1334 UDA1334A I2S Audio Stereo Decoder Module Board 3.3V - 5V CJMCU for Arduino - products tha

Feature:

This fully-featured UDA1334A I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface. 3.3V - 5V logic levels (a rarity), and can process multiple different formats by setting two pins to high or low. The DAC will process data immediately, and give you a clear, analog, stereo line level output. It's even cool with MCLK-less I2S interfaces such as the Raspberry Pi (which it's ideal for) - a built in PLL will generate the proper clock from the incoming signal. For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data. You can set it up to take an input system/master clock but we default-set it to just generate it for you, so you only need to connect Data In, Word Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a de-emphasis filter you can turn on.

Package includes:

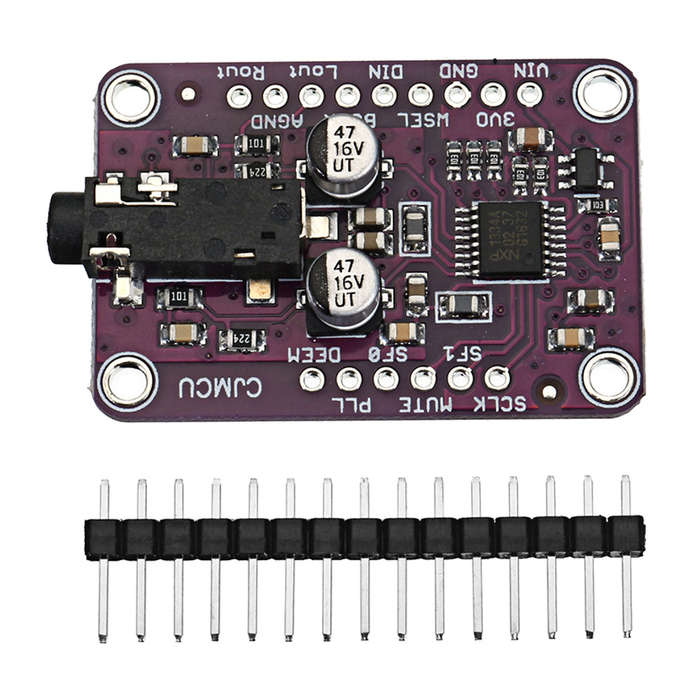

1 xCJMCU-1334 UDA1334A I2S Audio Stereo Decoder Module
