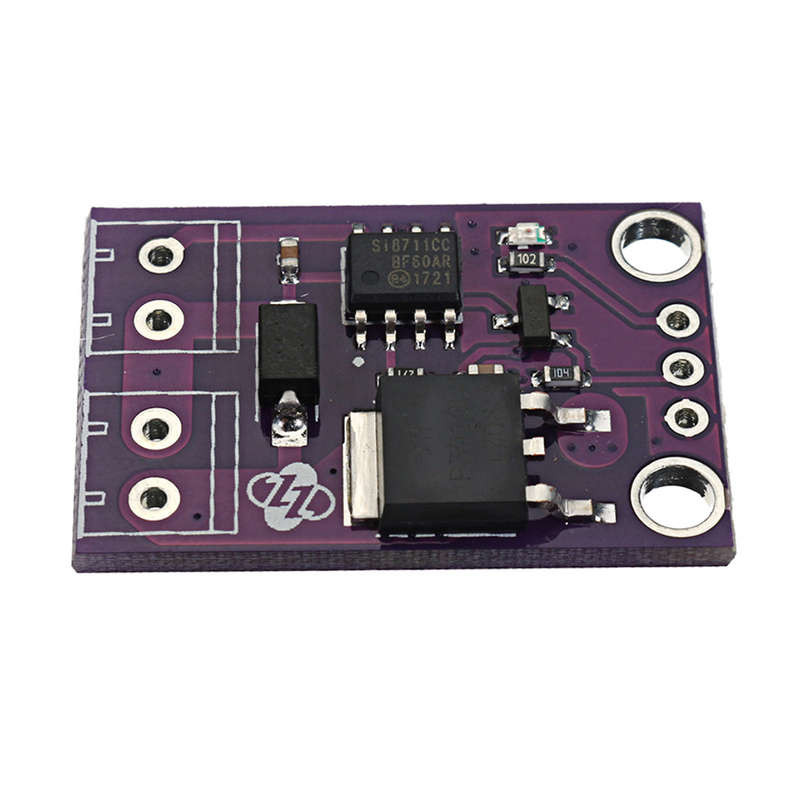

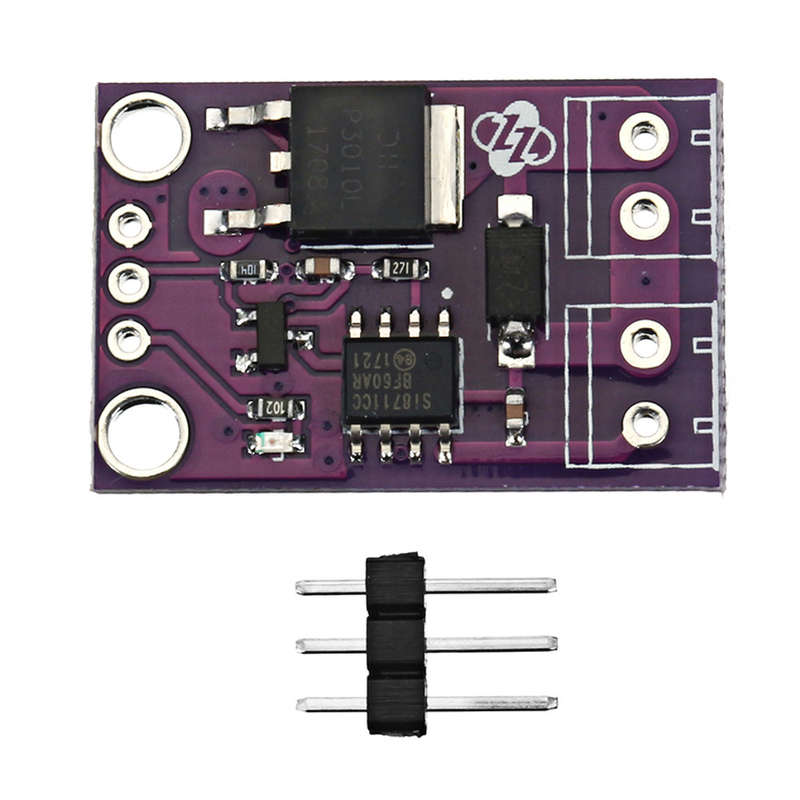

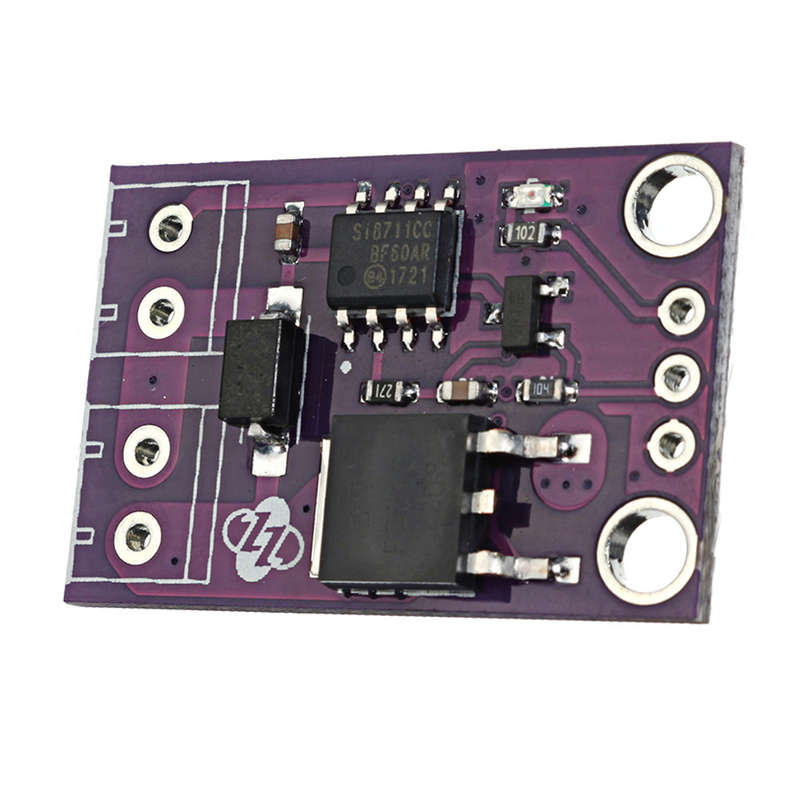

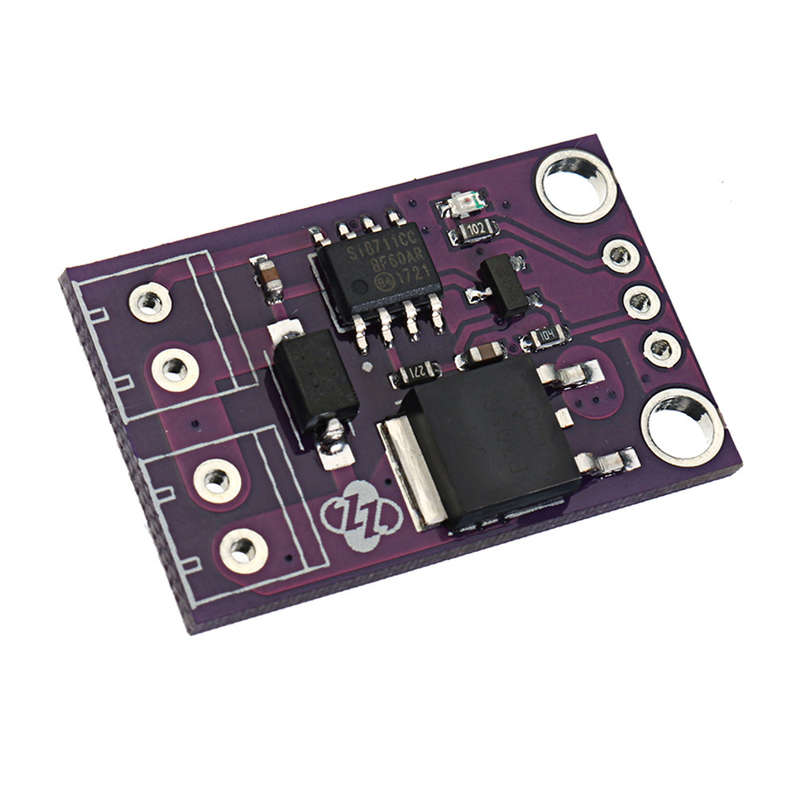

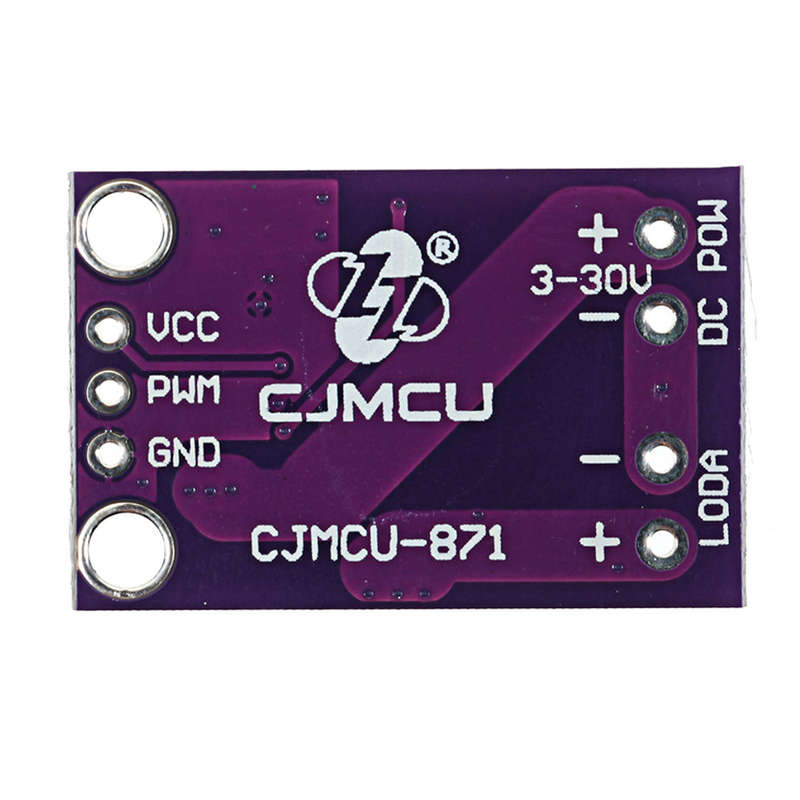

CJMCU-871 PWM Speed Controller 3-30V 10A DC Motor Controller Single-Pass Digital Isolator

Features: 1. Pin-compatible, drop-in upgrades for popular high-speed digital optocouplers 2. Wide range of product options 3. Performance and reliability advantages vs. optocouplers:
- Resistant to temperature, age and forward current effects - Data rates dc to 15 Mbps - 10x lower FIT rate for longer service life - Higher common-mode transient immunity: >50 kV/s typical - Lower power and forward input diode current 4. 1 channel diode emulator input 5. 3 to 30 V open collector output 6. Propagation delay 30 ns 7. PCB footprint compatible with optocoupler packaging 8. Up to 5000 VRMS isolation and 10 kV surge protection 9. AEC-Q100 qualified 10. Wide operating temperature range:a40 to +125 ﾣC 11. RoHS-compliant packages: - SOIC-8 (Narrow body) - DIP8 (Gull-wing) - SDIP6 (Stretched SO-6) Description: The Si87xx isolators are pin-compatible, one-channel, drop-in replacements for popular optocouplers with data rates up to 15 Mbps. These devices isolate high-speed digital signals and offer performance, reliability, and flexibility advantages not available with optocoupler solutions. The Si87xx series is based on Silicon Labs' proprietary CMOS isolation technology for low-power and high-speed operation and are resistant to the wear-out effects found in optocouplers that degrade performance with increasing temperature, forward current, and device age. As a result, the Si87xx series offer longer service life and dramatically higher reliability compared to optocouplers. Ordering options include open collector output with and without integrated pull-up resistor and output enable options. Applications: Industrial automation Motor controls and drives Isolated switch mode power supplies Isolated data acquisition Test and measurement equipment
Package includes:

1 xPWM Speed Controller
