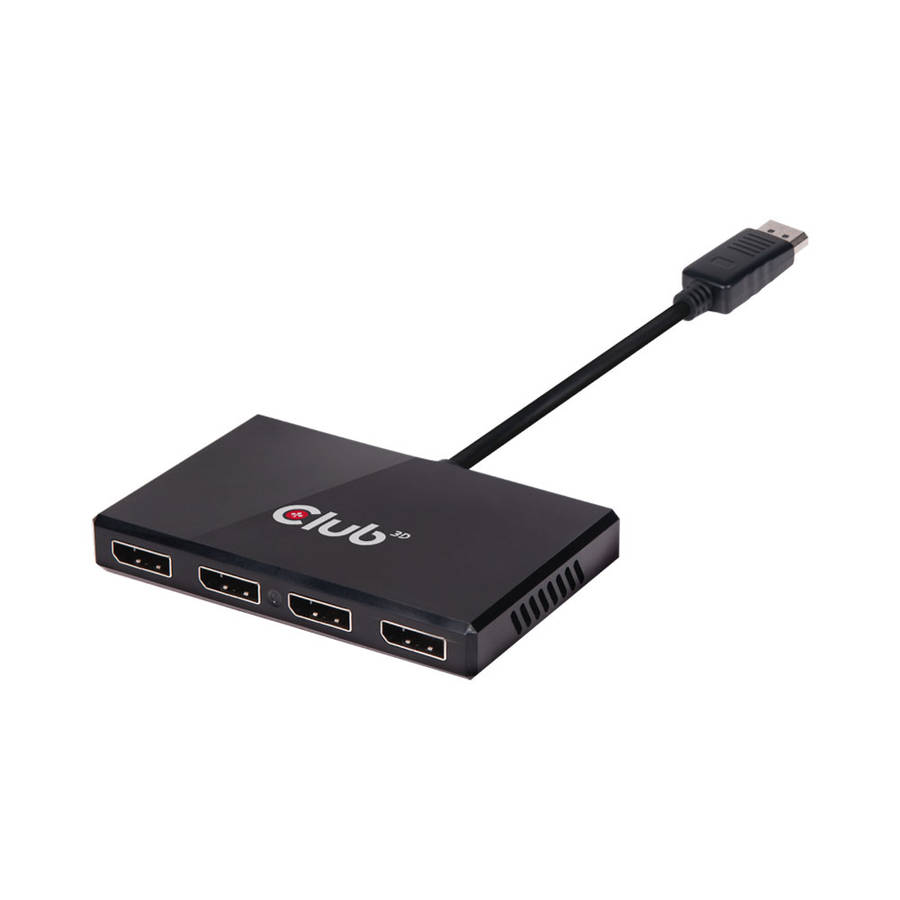

Club3D Multi Stream Transport (MST) Hub DisplayPort to Quad DisplayPort 1.2 Monitor with USB Power (CSV-6400)
The Club3D SenseVision CSV-6400 MST Hubs utilize Multi Stream Transport, a unique DisplayPort 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens.
The Club3D MST Hubs do not increase the bandwidth of DisplayPort 1.2 outputs, but it enbales the optimal use of it.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
Features:
Compliant with: DisplayPort v1.2a, DisplayPort v1.1a, VESA DDM Standard, HDCP V2.0,Display Id,and EDID V1.4
Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
Outputs support DisplayPort Dual Mode (DP++)
Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
Supports Advanced Wide EyeTM SerDes technology enables high Jitter performance
Supported output resolutions :
- for Dual Monitor setup: up to 2x 2560X1600p @ 60Hz
- for Tripple Monitor setup: up to 3x 1920x1080p @ 60Hz
- for Quad Monitor setup: up to 4x 1920x1080 @ 60Hz
Supports AMD Eyefinity
Compatible with Microsoft® Surface Pro and Intel NUC platforms
Works with AMD, Nvidia and Intel Graphics solutions
Note: Some Notebooks/Tablets/Mini PC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information.
OS Support:
Microsoft Windows 10/ 8.1
Input:
DisplayPort 1.2 Male
1x Micro USB Female for Power
Output:
4x DisplayPort Female
Other info:
Hub size LxWxD: 66 x 116 x 13 mm
Product Weight: 134 gr.
Cable Length DP: 180 mm
Cable Length USB: 1000 mm
Plastic Bag: 160x 240 mm.
Plastic Bag Weight: 8 gr.
