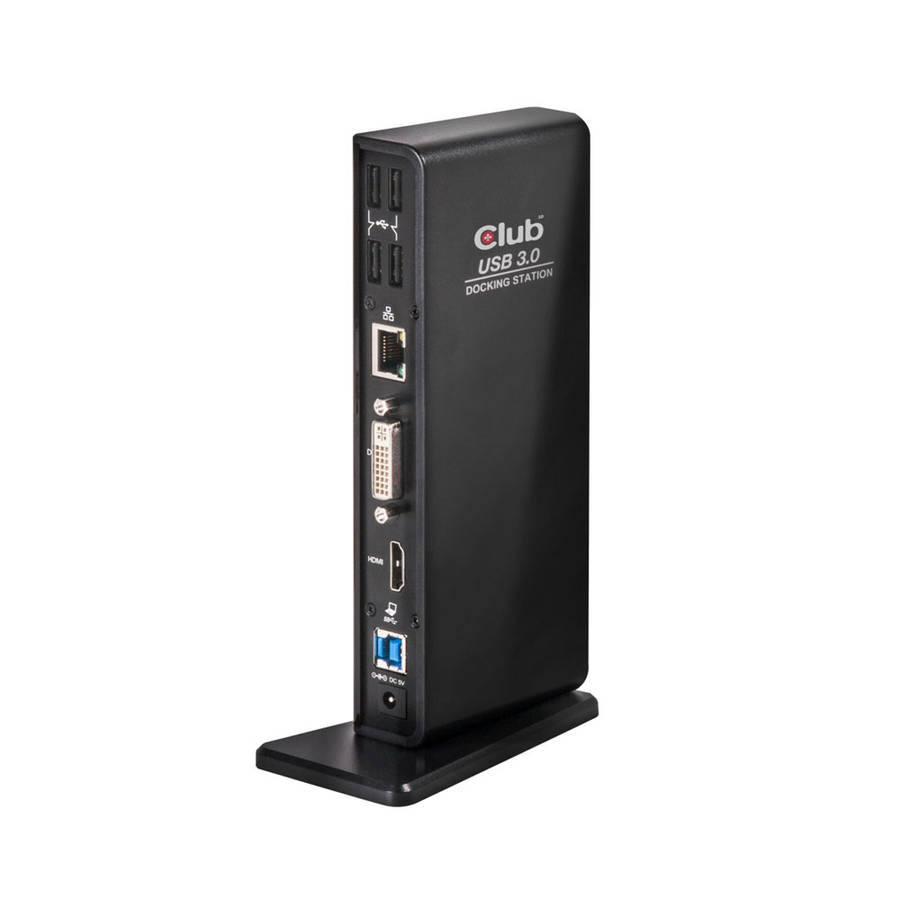

Club3D Usb 3.0 Dual Display Docking Station (Csv-3242Hd)

Club3D USB 3.0 Dual Display Docking Station (CSV-3242HD)

The SenseVision USB 3.0 Gen 1 Dual Display Docking Station is a verstatile universal docking station which allows you to expand the outputs of your Laptop or Ultrabook so it can be used as a traditional desktop PC.
Featuring the advanced DisplayLink DL-3900 chip inside, the USB 3.0 Gen 1 Dual Display Docking Station enables the use of two external High Definition monitors via the HDMI and DVI-I output. It has an RJ 45 Ethernet port for a reliable, fast, wired network connection and offers a total of 6 USB ports for your peripherals and storage devices as well as an Audio and Microphone output, all linked to your device via a single USB cable.

Design:
The SenseVision USB 3.0 Gen 1 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.

Interface
USB 3.0 Gen 1

Voltage
14.43W operating power
1.95W Suspend mode

Output Configuration
USB 3.0 Gen 1 to HDMI / DVI / 2 x USB 3.0 Gen 1 / 4 x USB 2.0 / Ethernet / Audio 2.1ch / Mic

Features

• Compatible with USB 3.0 Gen 1 specification
• Supported Max Resolutions:
• For Single Screen Setup: 2048x1152p (or 1920x1200p) @60Hz
• For Dual Screen Setup: 2 x 2048x1152p (or 1920x1200p) @60Hz
• Support audio 2.1 channel
• Support Gigabit Ethernet
• Support HDMI
• Support BC1.2 charging (Front x1)

The minimum requirements for the PC are:
CPU: AMD or Intel 2GHz Dual Core or higher processor clock.
RAM: 2GB or above
USB port: 3.0 Gen 1
30MB of available disk space

Supported Operating Systems:
WIN 10 / 8.1
