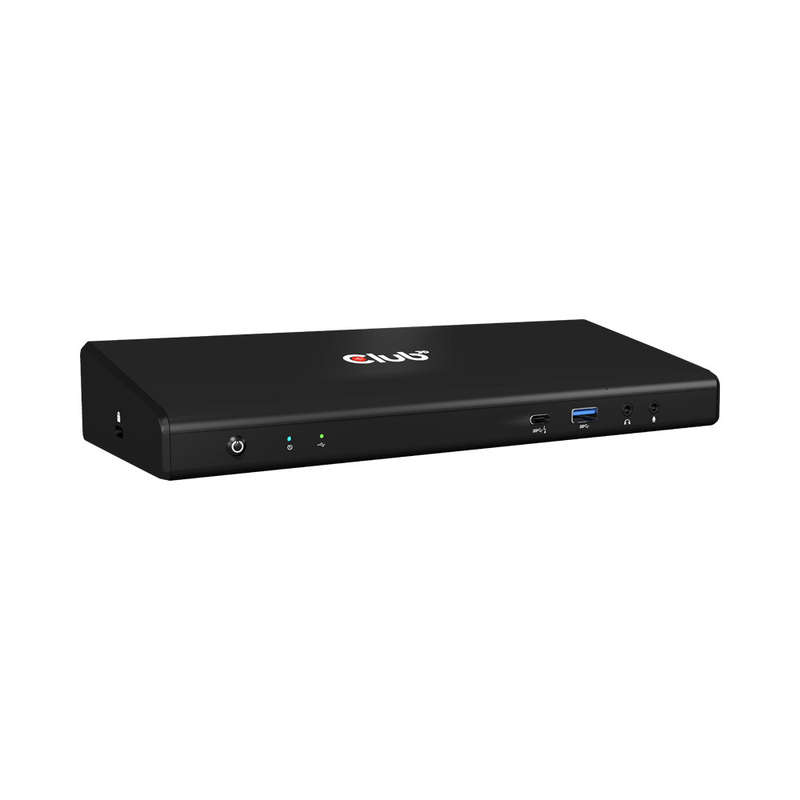

Club3D Usb Type-C 3.2 Gen1 Universal Triple 4K Charging Dock (Csv-1562)

Club3D USB Type-C 3.2 Gen1 Universal Triple 4K Charging Dock (CSV-1562)

The CSV-1562 is a Type-C 3.2 Gen1 Universal Triple 4K Charging Docking Station. The Universal Charging Dock is designed to cater for your most versatile connectivity demands. The USB 3.2 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favorite USB peripherals and allows for up to three external 4K displays simultaneously in addition it offers a wired network connection as well as audio and micro¬pone output. By adopting Power Delivery charging technology, the upstream charging function through Type-C 3.2 Gen1 interface, you can charge a connected cell phone / tablet / laptop. Furthermore, the added Kensington Lock option allows you to secure your dock as well. All it needs is a free USB 3.2 Gen 1 port on your Laptop or Ultrabook to connect to the Universal Triple 4K Charging Docking Station via a single USB cable.

Charging

Laptops / UltraBooks / Tablets often have limited connectivity possibilities. By adopting PD Charging technology and upstream-charging function through USB Type C interface the Club3D USB Type C Charging Dock offers unique functionality. It will charge your Notebook up to 60Watts and thru the downstream port on the front you can charge your phone up to 7.5 Watt on the USB C connector.

For Video Signal the source device needs to support DisplayPort Alt Mode.

FEATURES:

• Downstream port
• • USB3.2 Gen 1 Type-A ports (5V/0.9A) x4
  • USB3.2 Gen 1 Type-A port (Fast Charging) x1
  • USB3.2 Gen 1 Type-C port x1
• Support audio 2.1 channel
• Support Gigabit Ethernet
• Support DisplayPort (4096 x 2160@60Hz)
• Support 5K (connect to 2 DP displays simultaneously)
• Support HDMI (3840x2160@60Hz)
• Support PD Charging (for NB)
• • 20/15/12/9/5V@3A, up to 60W
• Kensington Lock
• Power On/Off Button on the front

Other info:

• Box size: 298 x 92 x 150 mm
• Device size: 250 x 83 x 34 mm
• Device Weight: 399 gr.
• Power adapter Weight: 670 gr.
• USB C cable Weight: 55 gr.
• Box Weight: 282 gr.
• Total Weight: 1805 gr.
• Meets ROHS, FCC, and CE EMI requirements
