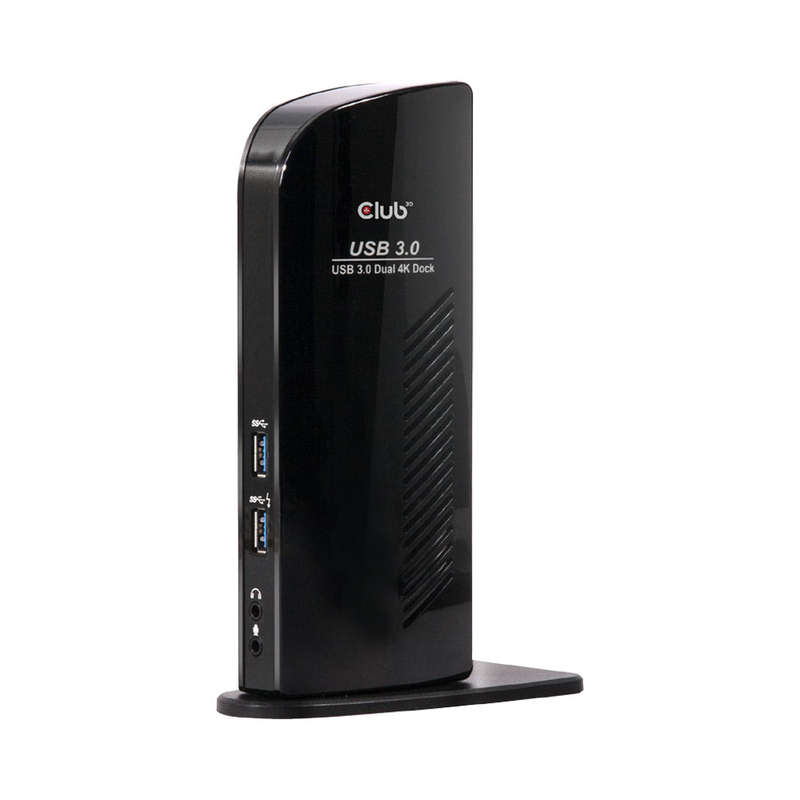

Club3D USB3.0 Dual DisplayPort 4K Docking Station (CSV-1460)
The SenseVision CSV-1460 USB 3.0 Gen 1 Dual Display 4K 60Hz Docking Station is designed to satisfy all your connectivity demands. It provides no less than 6 USB 3.0 Gen 1 Ports, Headphone connection, Microphone connection, Gigabit Ethernet port and 2 x Displayport outputs.
It is fully USB C compatible and a USB C cable is included in the box.
With this CSV-1460 you can now connect two Screens at 3840x2160 UHD at 60Hz resolution to almost all existing Notebooks or Tablets just by using a single USB 3.0 Gen 1 port! Featuring the advanced DisplayLink DL-6950 chip, you can even connect one screen at a resolution of 5K at 60Hz!
The SenseVision USB 3.0 Gen 1 Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal- or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.
Dual Mode DisplayPort
The SenseVision USB 3.0 Gen 1 Dual Display 4K 60Hz Docking Station has 2 Displayport++ outputs or in other words, Displayport 1.2 Dual Mode. This means that for the conversion of the video signal to DVI or HDMI passive cables or adapters must be used.
Features:
Portable Universal USB 3.0 Gen 1 Dual Display 4K 60Hz Docking Station
Fully USB C compatibel with USB C cable included in the box
DisplayLink DL-6950 chip inside
Supports dual External monitors via Displayport
Max supported resolution up to:
For Single Screen Setup: 5120x2880 @ 60Hz
For Dual Screen Setup: 2 x 3840x2160 @ 60Hz
USB 3.1 Gen 1 downstream port x 6 (BC 1.2 quick charging x1)
Supports Gigabit Ethernet (10/ 100/ 1000Mbps)
Audio: 2 x 3.5 mm Jack for Headphone and Microphone
OS Support:
Microsoft Windows 8.1/10
Inputs:
USB 3.0 Gen 1 B male x 1
DC 5v female x 1
Outputs:
Displayport x 2
USB A 3.0 Gen 1 x 6
Gigabit Ethernet port x 1
3.5mm Audio jack 2.1 ch x 1 3.5mm Mic jack x 1
Other info:
Box size: 158 x 248 x 93 mm
Adapter size: 80 (L) x 35(W) x 195(H)mm
Cable Length: 270 mm
Dock Weight: 395 gr.
USB-B to USB-C Cable Weight: 43 gr.
USB-Cable Weight: 42 gr.
AC-Cable Weight: 181 gr.
