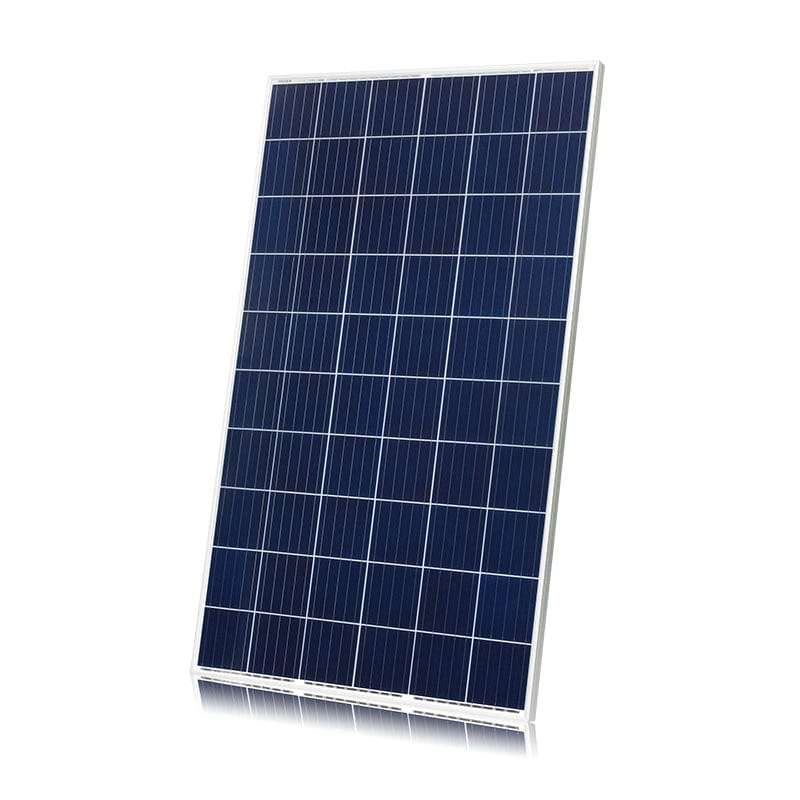

The CNBM 6P-160W Polycrystalline Silicon Solar Panel is a compact and efficient solar module designed for various applications, including residential, commercial, and off-grid systems. With its reliable performance and durable construction, this panel is an excellent choice for those looking to harness solar energy effectively.
Feature | Description |
---|---|
Maximum Power (Pmax) | 160W |
Module Efficiency (%) | Up to 15.5% |
Cell Type | Polycrystalline Silicon |
Operating Temperature (°C) | -40°C to +85°C |
Maximum System Voltage | 600VDC (IEC) |
Short-circuit Current (Isc) | 5.5A |
Open-circuit Voltage (Voc) | 21.6V |
Maximum Power Voltage (Vmp) | 18.5V |
Maximum Power Current (Imp) | 8.65A |
Specification | Details |
---|---|
Model | CNBM 6P-160W Polycrystalline Solar Panel |
Dimensions (L x W x H) | Approx. 1470 x 670 x 35 mm |
Weight | Approx. 12 kg |
PID Resistance | Excellent Anti-PID performance |
Durability | Designed to withstand harsh weather conditions |
